Engineered for extreme longevity, efficiency, and precise beam control. Discover our primary commercial lighting portfolio.
In the modern architectural paradigm, commercial and industrial spaces demand lighting systems that transcend basic illumination. LED downlights have become the backbone of interior infrastructure, balancing ambient comfort, operational energy efficiency, and strict regulatory compliance. Globally, the lighting industry is shifting rapidly toward intelligent, human-centric systems. Energy mandates such as the European Union’s ErP directive and California’s Title 24 have pushed commercial entities to transition away from traditional metal-halide and fluorescent fittings to integrated, high-lumen, low-glare solid-state LED systems.
Today's procurement managers, MEP (Mechanical, Electrical, and Plumbing) consultants, and developers are looking beyond simple wattage replacement. They focus on complex metric systems: Unified Glare Rating (UGR) levels, Color Rendering Index (CRI/Ra), R9 values, thermal dissipation safety coefficients, and compliance protocols such as DALI-2, Zigbee, or 1-10V analog dimming interfaces. Meeting these demands requires deep technological mastery and highly precise manufacturing methodologies.
Information Gain Paradigm: True efficiency is not determined by the source lumens, but by the optical delivery efficiency (lumens per watt delivered out of the luminaire) combined with deep anti-glare control structures. Specifying the correct optics saves up to 40% more energy than standard LED alternatives.
High-performance commercial downlights differ completely from simple residential fixtures in their materials, electronics, and assembly. To help procurement teams audit potential suppliers, we present the structural anatomy of an engineered B2B luminaire:
Uses precision-molded polycarbonate TIR (Total Internal Reflection) lenses or vacuum-metallized aluminum reflectors. They direct light effectively, minimizing spill and glare while keeping UGR under 19.
Constructed with cold-forged or high-pressure die-cast A380/ADC12 aluminum heat sinks. Thermal conductivity exceeds 150 W/m·K, keeping junctions under 75°C to prevent degradation.
Features certified ripple-free constant-current drivers (e.g., Lifud, Mean Well, or Inventronics) with active power factor correction (PFC > 0.95) and THD below 12% to protect building grid stability.
Choosing a supplier with vertical control over these components ensures consistent specifications across multiple production batches. This level of quality control is essential for multi-phase real estate and infrastructure rollouts, where even slight color or intensity shifts can ruin a spatial design.
| Performance Parameter | Architectural Grade (Premium) | Commercial Grade (Standard) | Residential Grade (Low Cost) |
|---|---|---|---|
| Light Source (COB/SMD) | CREE, Citizen, Bridgelux (3-Step MacAdam) | Osram, Philips, Sanan (5-Step MacAdam) | Generic unbranded chips (>5-Step) |
| Housing Material | Die-Cast Aluminum ADC12 / 6063 Extrusion | Die-Cast/PBT Hybrid composite shell | Thermal conductive plastic and thin sheet metal |
| Color Quality | Ra > 90 / R9 > 50 (TM-30 Rf>90, Rg>98) | Ra 80 - 85 / R9 > 0 | Ra 70 - 75 / R9 not evaluated |
| Driver Lifetime | 50,000 - 100,000 Hours (Japanese Capacitors) | 30,000 - 50,000 Hours (Chinese High Brand) | <15,000 Hours (Linear IC / Non-isolated) |
| Dimming Protocols | DALI-2, Push-Dim, 0-10V, PoE, Casambi | Phase-cut Trailing/Leading Edge, 1-10V | Non-dimmable / Basic Triac only |
Established in 2003 and situated in the industrial hub of Yangzhou, Jiangsu Province, China, Yangzhou OneAll Lights Co., Ltd. has spent over two decades developing high-performance outdoor and indoor commercial lighting systems. Our facility features advanced production tools, including CNC bending machines, automatic submerged arc welding systems, laser cutting machines, electrostatic powder coating lines, fluorocarbon painting setups, and comprehensive optical testing instruments.
We manage every stage of production in-house. From SMT board placement and wave soldering to protective coating, automated gluing, and assembly, our facility operates under strict quality management structures. These processes are backed by ISO9001 and ISO14001 certifications.
Different architectural spaces have distinct requirements. Industrial-grade LED downlighting must be customized to balance visual comfort, safety, and durability:
Focuses on glare control (UGR < 19) and high-fidelity rendering (CRI > 90). The lighting matches natural circadian rhythms using tunable white systems (2700K to 6500K) to improve workplace comfort and focus.
Requires high color rendering (CRI > 95, R9 > 60) and narrow, adjustable beam angles. This setup highlights textures and product colors accurately, which is essential for retail environments.
Prioritizes eye safety and driver stability. Completely flicker-free operation prevents eye strain, and antimicrobial coatings on trim frames help maintain sterile environments.
In manufacturing plants, high-ceiling warehouses, and transit hubs, downlights must meet even tougher standards. The fixtures need IP65 ingress protection to keep out dust and moisture, and vapor-proof seals to withstand ambient chemical exposure.
Southern and Eastern China host the world's most integrated optoelectronic manufacturing clusters. Working directly with a manufacturer in these regions provides major advantages for large-scale construction projects:
1. Raw Material Ecosystem: We source high-purity aluminum, precision glass lenses, and electronic components locally, which lowers logistics costs and speeds up development.
2. Automated Assembly: Precision equipment like high-speed SMT lines, automatic gluing machines, and wave soldering systems keep manufacturing tolerances minimal and quality consistent.
3. Direct Compliance Testing: Our products undergo onsite testing using goniophotometers and thermal imaging, followed by official certification through third-party agencies (such as CE, CCC, CQC, and RoHS).
Technical details and supply chain insights for project managers, engineers, and purchasing officers.

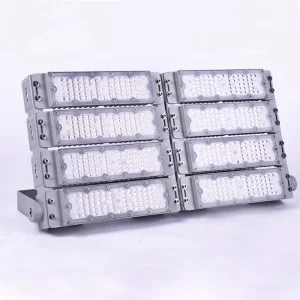

Engineered to perform in harsh industrial environments. Explore our range of durable, high-protection luminaires.
