Owns an ISO9001 22,000m² factory to ensure superior quality control.
Over 200,000 pcs of LED industrial lights installed worldwide annually!
OEM & ODM Service Available

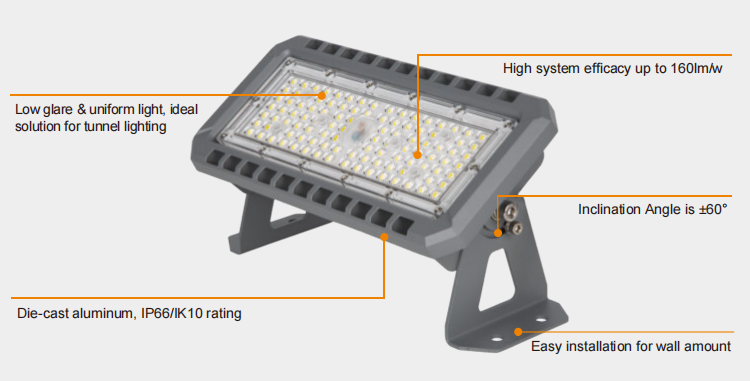

Key Features & Structural Design
High purity extruded aluminum housing.
Made of non-corrosion heat sink with electrophoresis process technology.
High performance design with multi-chip package 3030 LED source and exclusive Lens for increased performance, low light failure, and elimination of dead lights.
60W-200W LED Tunnel Light Specifications
Part Number
LY-V2601
LY-V2601
LY-V2602
LY-V2002
LY-V2604
Wattage
60W
100W
150W
200W
400W
Lumen Output
9000lm
15000lm
22500lm
30000lm
60000lm
Luminous Efficacy
140-160lm/W
Input Voltage
90-305V AC 50-60Hz

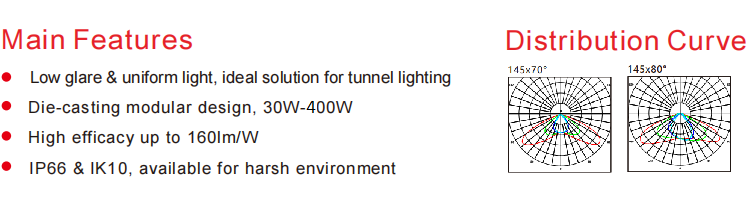

Beam Angle
145x70°
CCT
2800~6500K
CRI
≥70 or ≥80
IP & IK Rating
IP66 & IK10
Surge protection
10KV/20KV available
Power factor
>0.95
Power efficiency
92%
THD
<15%
Working temp.
-40℃~50℃ 20%~90% RH
Storage temp.
-40℃~85℃ 10%~90% RH
Housing material
AL6063-T5
Housing color
Grey/Black/White
Options
PWM / DALI / 1-10V / Timing
Lifespan
>50,000Hrs
Lamp size(mm)
272x126x122
272x126x122
272x126x122
504x126x122
504x126x122

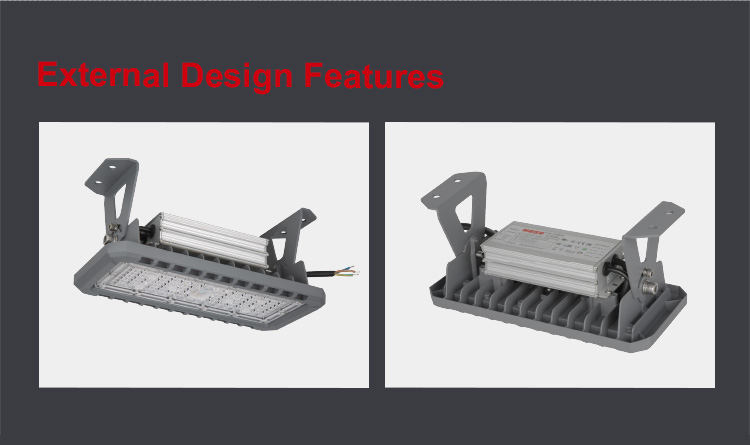

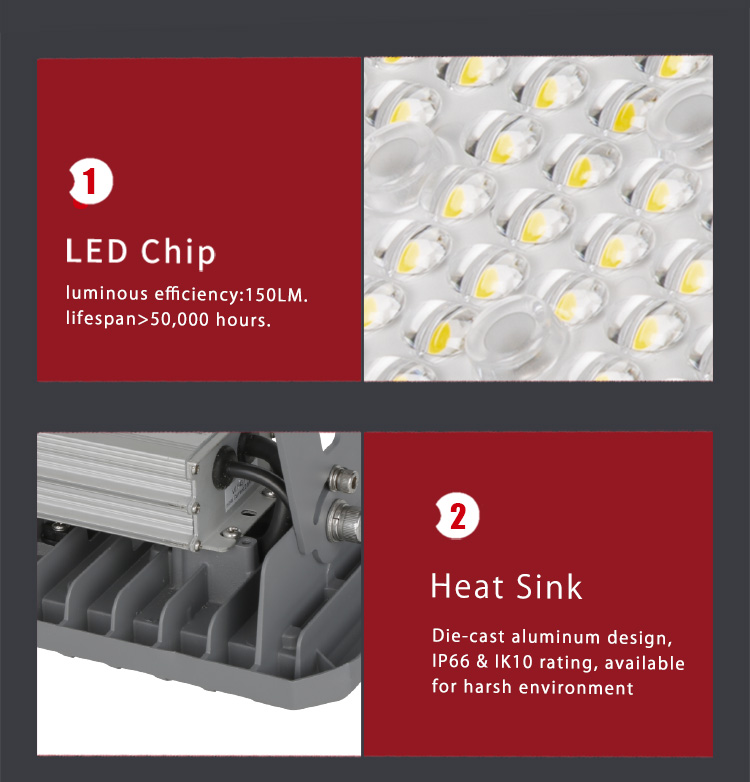

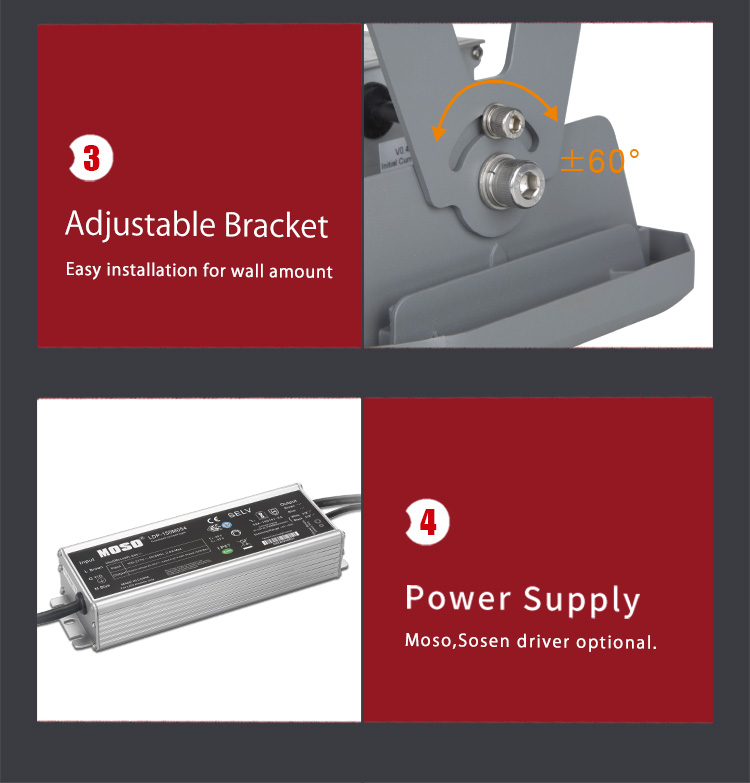

Detailed Product View

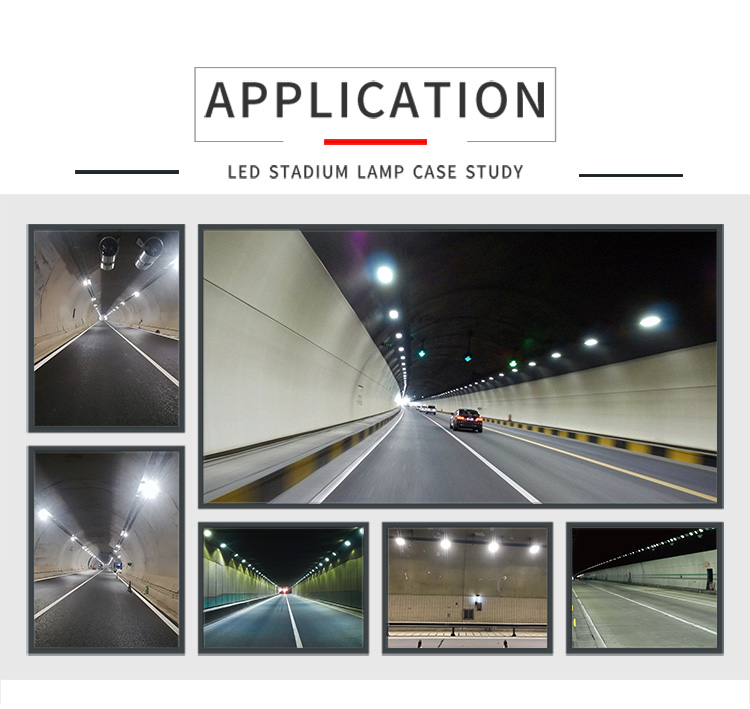

Application Environment

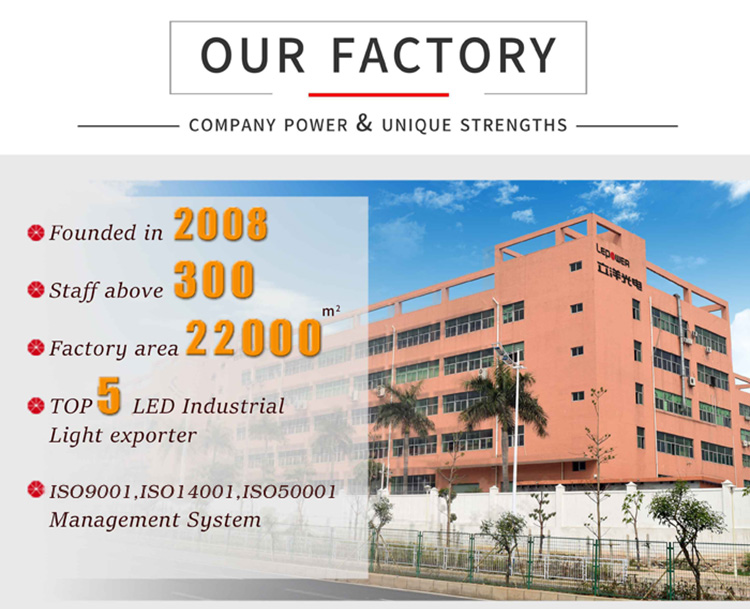

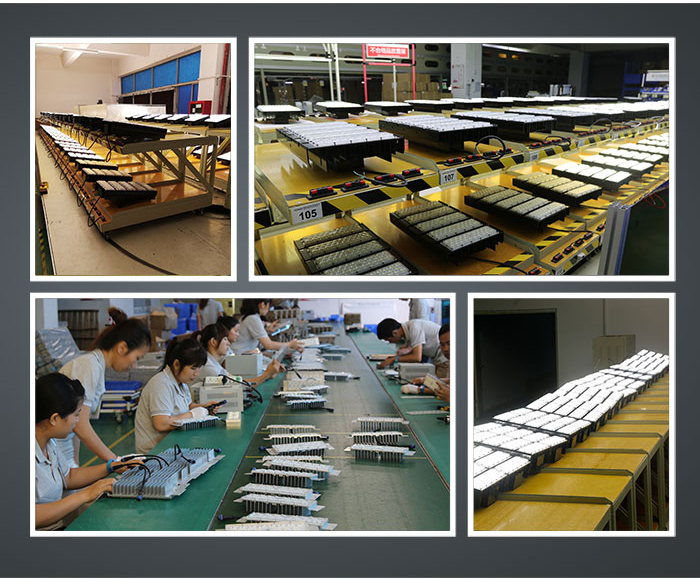

Factory Facility & Production Line
Trading Conditions
Payment Term: 30% deposit by T/T or Western Union; 70% before delivery.
Delivery Time: 7-9 days for 50pcs; 15 days for 500pcs.
Samples Time: 5 days.
Shipping Terms: FOB Port.
Discounts: Determined by volume.
Partnerships: Distributors welcome to cooperate.
Quality Control
Material and color temperature are strictly checked by sample before confirmation.
Comprehensive tracing of all production phases from the beginning.
Every LED light undergoes systematic check and cleaning before packaging.
Clients can assign internal QC or third-party inspectors before delivery.
Proactive troubleshooting and customer support for post-delivery issues.
Warranty Terms
Coverage: 3/5 years warranty.
Policies: Free replacement or rework parts provided based on standard usage proof documents.
Exclusions: Incorrect operations, wire connections, or deviations from manual instructions are subject to paid maintenance.
Standards: ULCB/SAA/CE/RoHS/TUV compliance.
Frequently Asked Questions
Can we make our own label on the sample lights?
Yes, we can apply the label you offer. We also fully support OEM & ODM services.
Our project is located on the seaside. What if your lights are corroded by seawater?
The metal construction features high corrosion resistance. In addition, our surface treatments (electrostatic spraying and electrophoresis) effectively protect the fixtures from salt water corrosion.
I would like to try a sample first. Is that possible?
Certainly. Our MOQ is only 1 piece, making it easy to evaluate our products through sample testing for long-term and win-win cooperation.
We have a football stadium project that requires lighting design. Can you help us?
Yes, as a specialized high-power LED flood light and outdoor design provider, our design team can deliver the best solutions. If you prefer to make the design yourself, we can provide the relevant IES files.
What is the lifespan of these LED tunnel lights?
Our LED tunnel lights have a lifespan of over 50,000 hours with low light degradation, thanks to high-quality 3030 LED sources and electrophoresis heat-sink technology.
What dimming and control systems do you support?
We support multiple control and dimming options, including PWM, DALI, 1-10V, and Timing controllers to optimize energy savings.
