Customization: Available
Color Temperature: Cool White
Lamp Body Material: Aluminum Alloy
Send Inquiry

Product Description

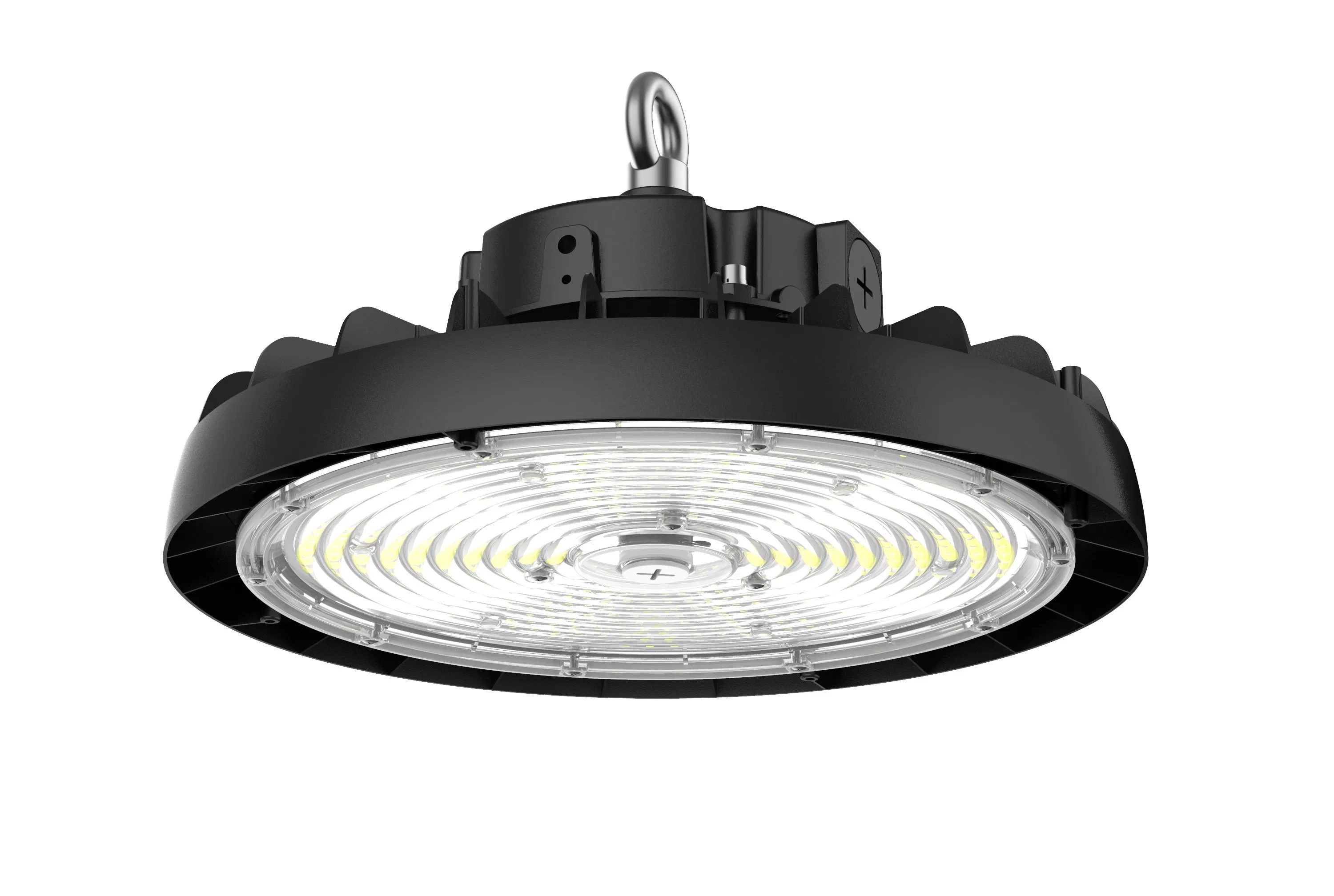

UL/ETL IP65/IP66/IP67 CE/RoHS 150W 160lm/w 170lm/w Wattage Selectable & CCT Tunable Industrial LED High Bay Light

Basic Info

Product NameUFO LED High Bay Light
Power200W
Lifespan≥50000H
IP RatingIP65
IP GradeIP65/IP67/IP68
Beam Angle120°
LED ChipsNichia
LED Chip ModelSMD2835
LED DriverMeanwell Hbg Series
Product TypeUL ETL Dlc LED Industrial Lighting
ShapeUFO/Round
PF>0.95
Body ColourBlack/White
Function1-10V Dimmable, Daylight Sensor, Motion Sensor
MaterialDie-Cast Aluminum
CoverPC Lens Cover
Driver ShapeRound or Rectangle Bracket
Installation MethodsSuspending Ring, Chain, Supporting Rod
CertificationsSAA, PSE, UL, cUL, Dlc, TUV, GS, CB, FCC, CE, RoHS
WarrantyMeanwell 5 Yrs, UL CE Driver 3 Yrs
Transport PackagePearl Foam & K=K Carton
SpecificationD230*H155 to D395*H165
OriginMade in China
HS Code9405409000
Production Capacity300,000 Pcs/Month
UsageFactory, Warehouse, Gym, Exhibition, Airport etc.

Product Advantages

  • SMD2835 LED, high efficacy 150-200LM/W
  • Wide voltage range: 100-277VAC/100-240VAC
  • Simple and elegant appearance, anodized housing, durable
  • Unique UFO shape, lighter and smaller, no reflector, saving much freight cost
  • Wide aluminium plate + large diameter PCB, heat dissipation fast and evenly
  • Two kinds of driver shape for choice: Round driver or Rectangle driver bracket
  • Optional Function: 1-10V dimmable, daylight sensor, motion sensor, microwave sensor
  • Installation Methods: suspending ring, suspending chain, supporting rod, hook, bracket (can be adjustable 180 degree)
  • Certifications: UL/ETL/DLC SAA, CE, RoHS
  • Warranty: 5 years

Technical Specifications

  • LED type: SMD2835, LM80 TM21 certified, Up to 150-200lm/W
  • PF >0.95, CRI >80
  • Material: Die-cast aluminum, PC lens and stainless screws
  • Working voltage: 100-277V
  • Luminous Efficiency: 150-200LM/W
  • Color temperature: 3000K, 4000K, 5000K, 6000K, 6500K
  • Beam Angle: 60° / 90° / 120°
  • Dimmable: 0-10V dimmable
  • Surface color: Black/White
  • IP Rating: IP65
  • Life-span: 50,000 hours
Power 100W 150W 200W 240W 300W
Wattage Selectable 100W-80W-60W 150W-120W-80W 200W-150W-120W 240W-200W-150W 300W-240W-200W
Input Voltage AC100-277V AC100-277V AC100-277V AC100-277V AC100-277V
Power Frequency 50-60Hz 50-60Hz 50-60Hz 50-60Hz 50-60Hz
Luminous Flux 160lm/w, 170lm/w 160lm/w, 170lm/w 160lm/w, 170lm/w 160lm/w, 170lm/w 160lm/w, 170lm/w
Fixture Material Die-cast aluminum Die-cast aluminum Die-cast aluminum Die-cast aluminum Die-cast aluminum
LED Type SMD2835
Power Supply LIFUD/Moso
System Efficacy 160LM/W 170LM/W (CCT=5000K)
CCT 3000K, 4000K, 5000K, 6000K
Beam Angle 60/90/120°
CRI >80Ra
System Efficiency >90%
LED Junction Temp. <75ºC (Ta=30ºC)
Storage Temp. -40~+70ºC
Operating Temp. -30~+50ºC
Working Environment 15-90%RH
Power Efficiency >93%
Power Factor >0.93
Total Harmonic Distortion <15%
Certificates UL cUL DLC TUV-GS CB SAA RCM FCC CE RoHS
Life span >50000Hrs (Ta=30ºC @L70)
Ingress Protection IP65
Quality Warranty 5 Years
Installation Lifting, Tube, Wall Installation

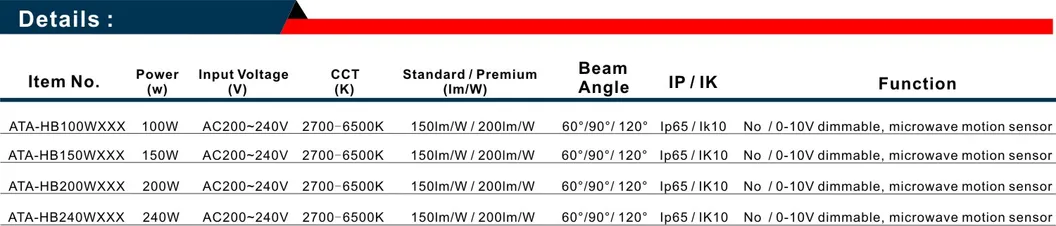

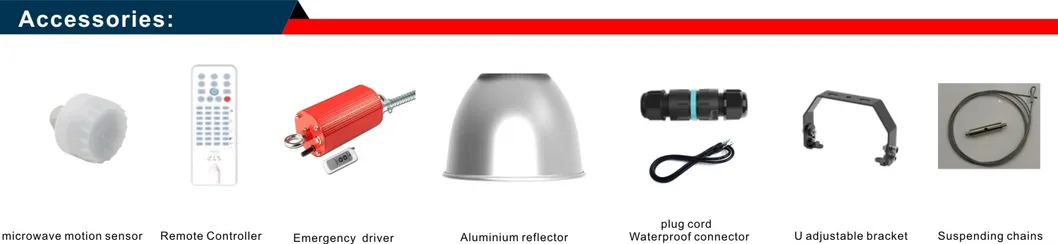

UL/Etlip65/IP66/IP67 CE/RoHS 150W 160lm/W 170lm/W Wattage Selectable CCT Tunable industrial LED High Bay Light Detail 1 UL/Etlip65/IP66/IP67 CE/RoHS 150W 160lm/W 170lm/W Wattage Selectable CCT Tunable industrial LED High Bay Light Detail 2 UL/Etlip65/IP66/IP67 CE/RoHS 150W 160lm/W 170lm/W Wattage Selectable CCT Tunable industrial LED High Bay Light Detail 3 UL/Etlip65/IP66/IP67 CE/RoHS 150W 160lm/W 170lm/W Wattage Selectable CCT Tunable industrial LED High Bay Light Detail 4

Product Description

  • PF >0.95, CRI >80Ra, THD <15%
  • Anti-thunder: 4KV | IK Grade: IK10 | Surge Protection: 10KV
  • LED Junction Temperature: ≤65°C
  • Working Temperature: -40ºC ~ +50ºC | Humidity: 10% ~ 90%RH
  • Lumiled / Osram SMD2835 LED, 150-200lm/w
  • Meanwell driver, UL CE driver (100-277VAC, 90-305V, 180-528V available)
  • Optional Function: DALI, 1-10V dimmable, daylight sensor, microwave sensor
  • Material: Die-cast aluminum, Optical lens, stainless screws
  • Ideal mounting height: 8-15 m
  • Simple and elegant appearance, anodized housing, durable.
  • Unique UFO shape, lighter and smaller, no reflector, saving freight cost.
  • Wide aluminium plate + large diameter PCB, heat dissipation fast and evenly.
  • All stainless screws prevent oxidation.
  • One-piece PC lens and high-quality silicone ring for excellent airtight performance (heavy rain and dust protection in tunnel and industrial situations).

Installation & Applications

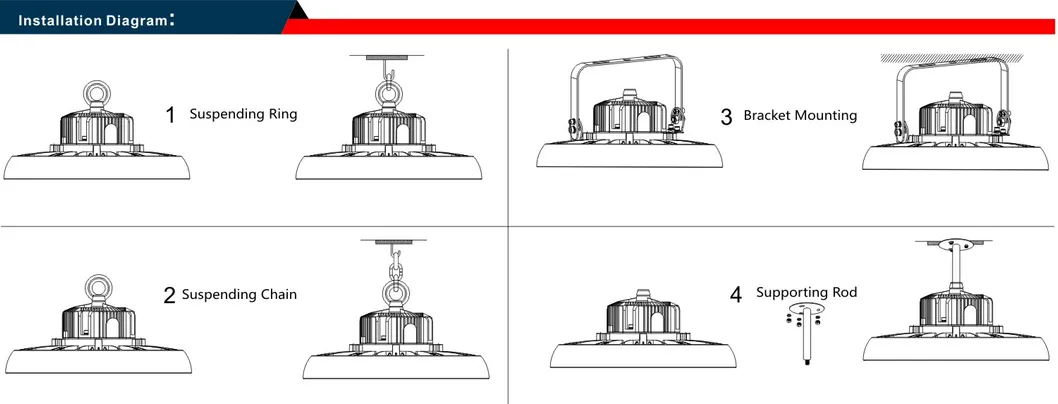

Installation Methods: Loop & Hook hanging / Wall mount / Surface mount / Rack mount

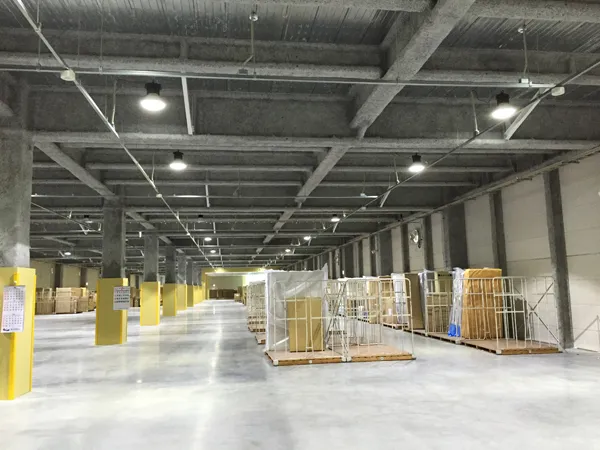

  • Industrial Areas: Factories, industrial production workshops, warehouses, and gas stations.
  • Sports Facilities: Gymnasiums, stadiums, golf courses.

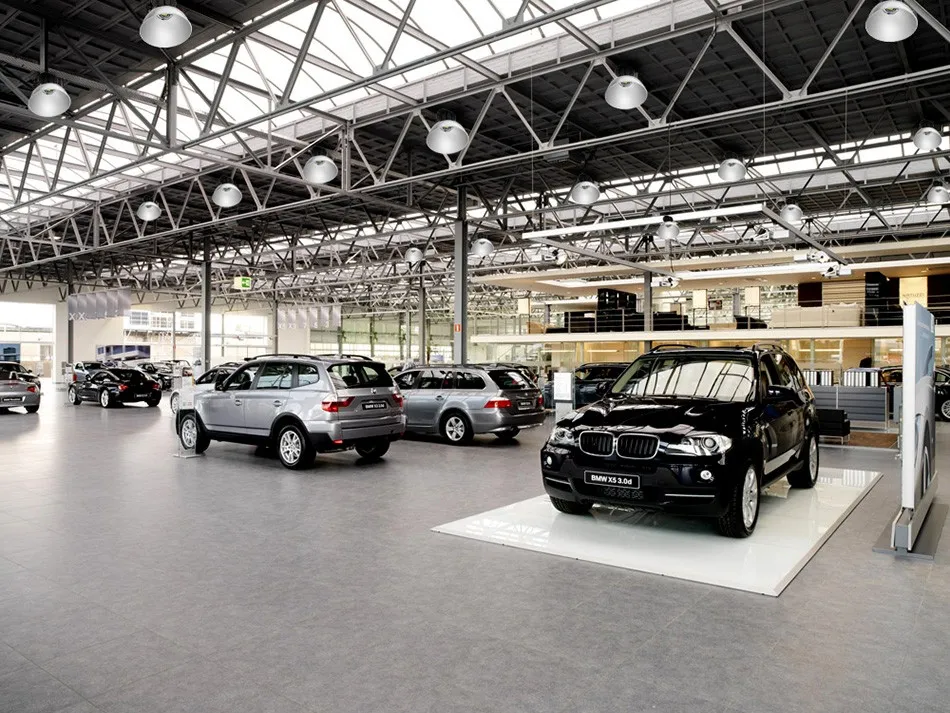

  • Commercial & Transit: Supermarkets, shopping malls, exhibition halls, airports, subways, train stations, highway toll stations, docks, and offices.
  • Outdoor Areas: Overpasses, outdoor advertising boards, stages, yards, gardens, lawns, parks, and plazas.
UL/Etlip65/IP66/IP67 CE/RoHS 150W 160lm/W 170lm/W High Bay Application Area 1 UL/Etlip65/IP66/IP67 CE/RoHS 150W 160lm/W 170lm/W High Bay Application Area 2

User Manual

  • Switch off power of the mains supply or respectively of the connection lead before doing any works.
  • Assembly must not damage or destroy conducting paths.
  • Make sure that the product is mounted on a stable, even and tilt-fixed background.
  • The complete installation must be done by an electrical expert who is familiar with the valid directives.

Quality Control

  • Stability TEST: 100% of the lamps undergo aging testing for at least 48 hours.
  • Lighting TEST: 100% of the lamps are tested for light functionality before packing.
  • Drop TEST: Every single light is protected by safety packaging to survive drops.

Frequently Asked Questions

What are the available wattage options and luminous efficiencies?
The LED High Bay Light is available in 100W, 150W, 200W, 240W, and 300W. It features high-efficiency configurations producing 150-200LM/W (commonly 160lm/w and 170lm/w).
What certifications does this industrial LED light have?
This light is certified to meet international standards including UL, cUL, DLC, TUV-GS, CB, SAA, RCM, FCC, CE, and RoHS.
Can this high bay light be dimmed or used with sensors?
Yes. It has optional support for 1-10V / 0-10V dimming, daylight sensors, motion sensors, microwave sensors, and DALI systems.
What are the warranty options?
It comes with a 5-year warranty for units equipped with Meanwell, LIFUD, or Moso drivers, and a 3-year warranty for configurations using standard UL CE drivers.
What installation options are supported?
It supports multiple setup options: suspending ring, suspending chain, supporting rod, hook, and a 180-degree adjustable bracket for wall, surface, or rack mounting.
How is the heat dissipation handled?
The product uses a wide aluminium plate combined with a large diameter PCB board alongside a unique UFO die-cast aluminum housing to dissipate heat fast and evenly.
