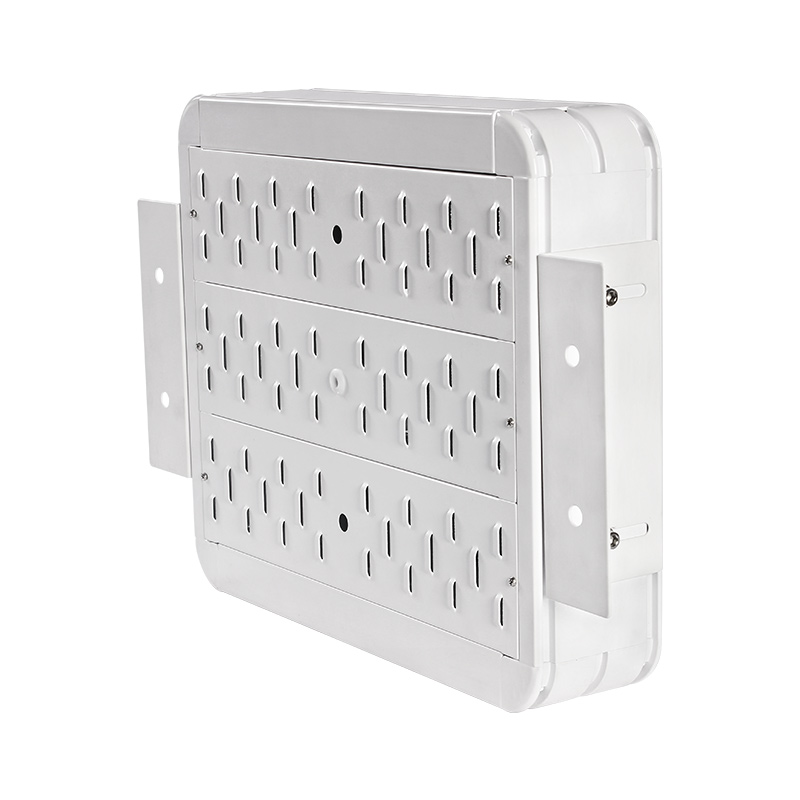

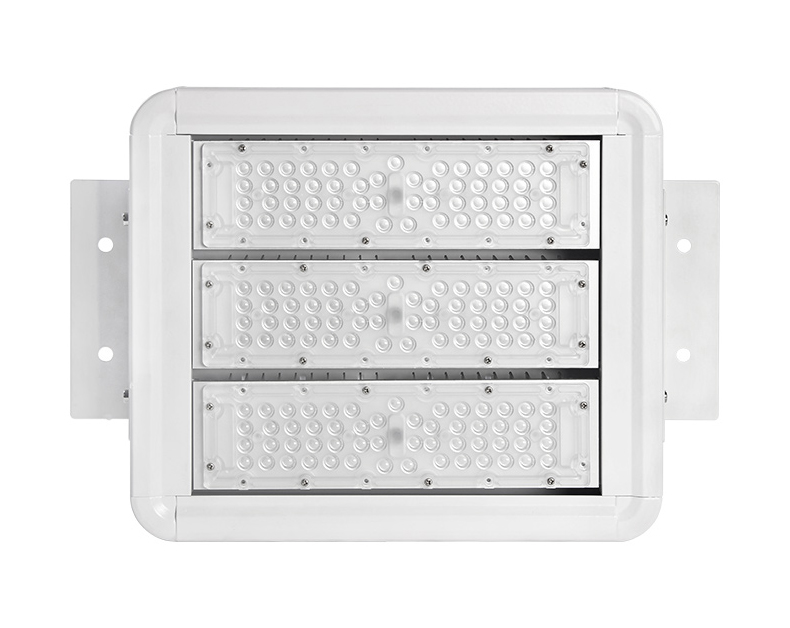

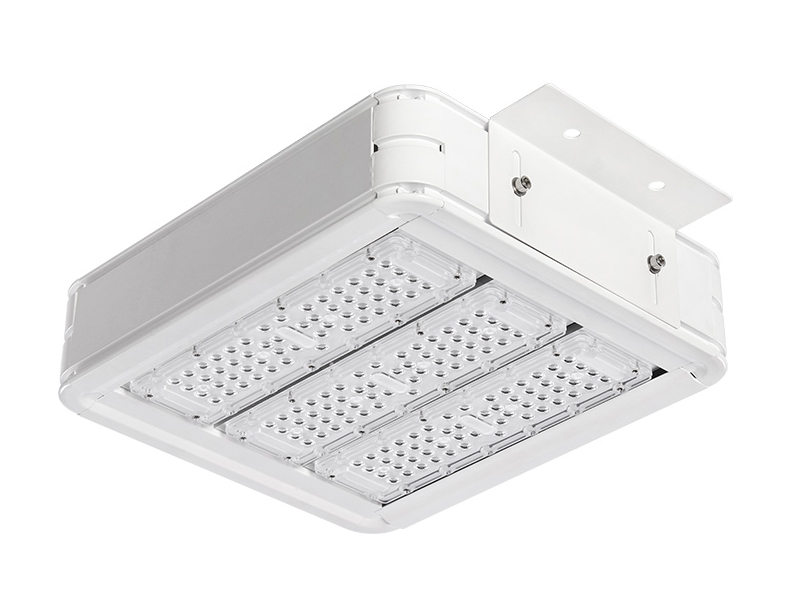

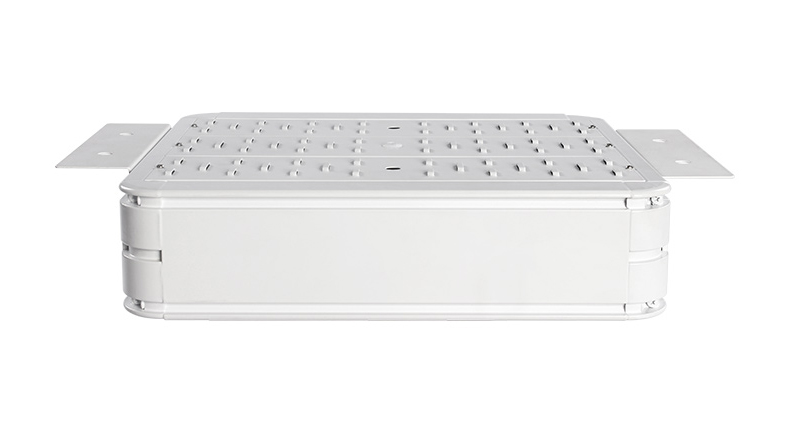

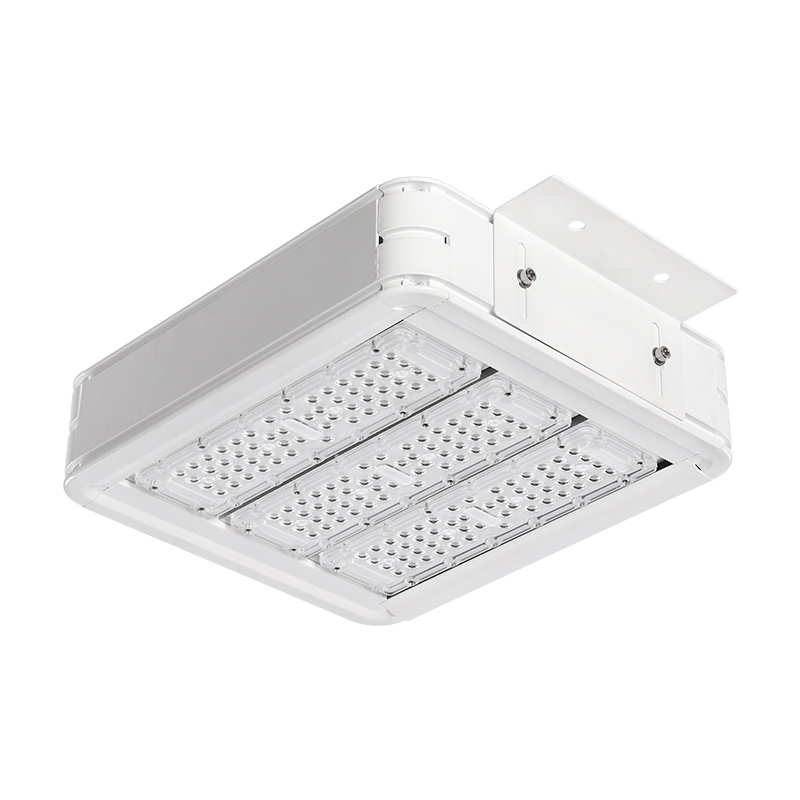

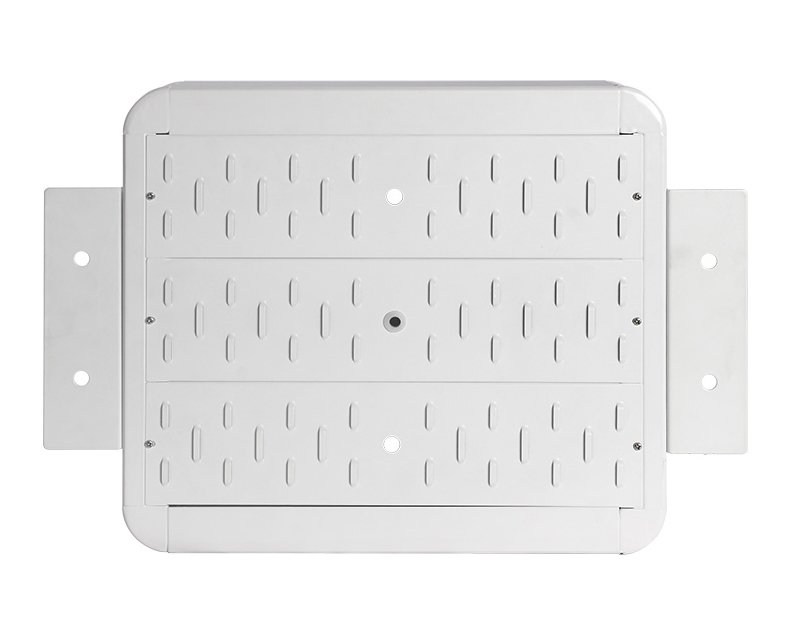

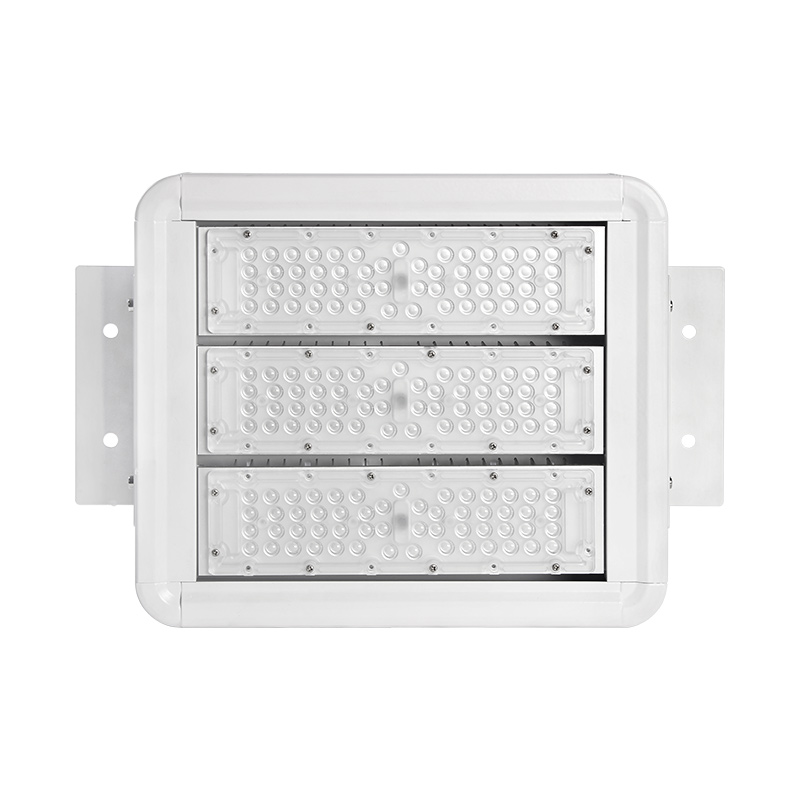

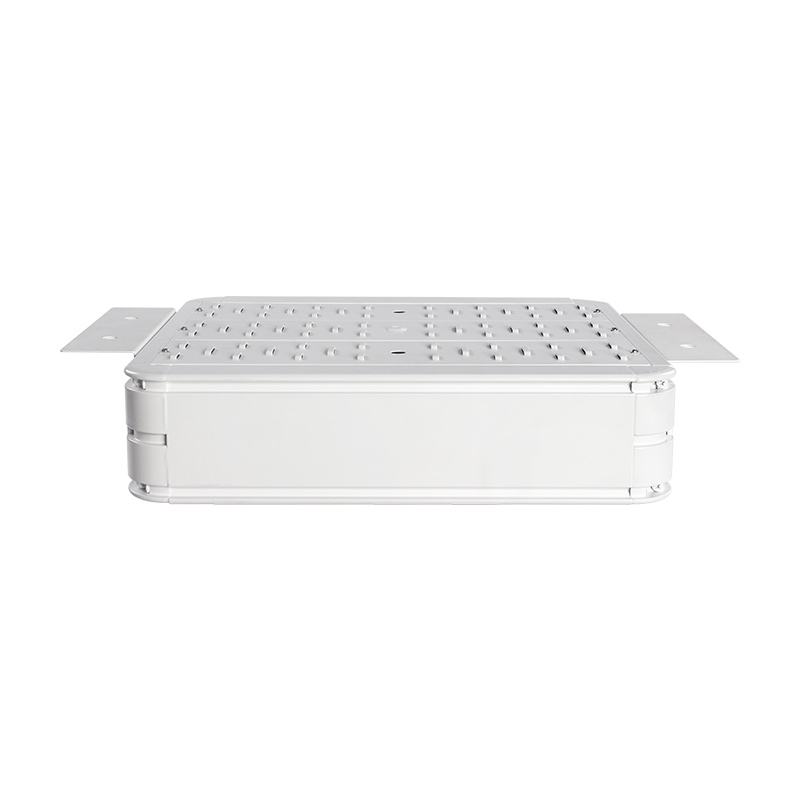

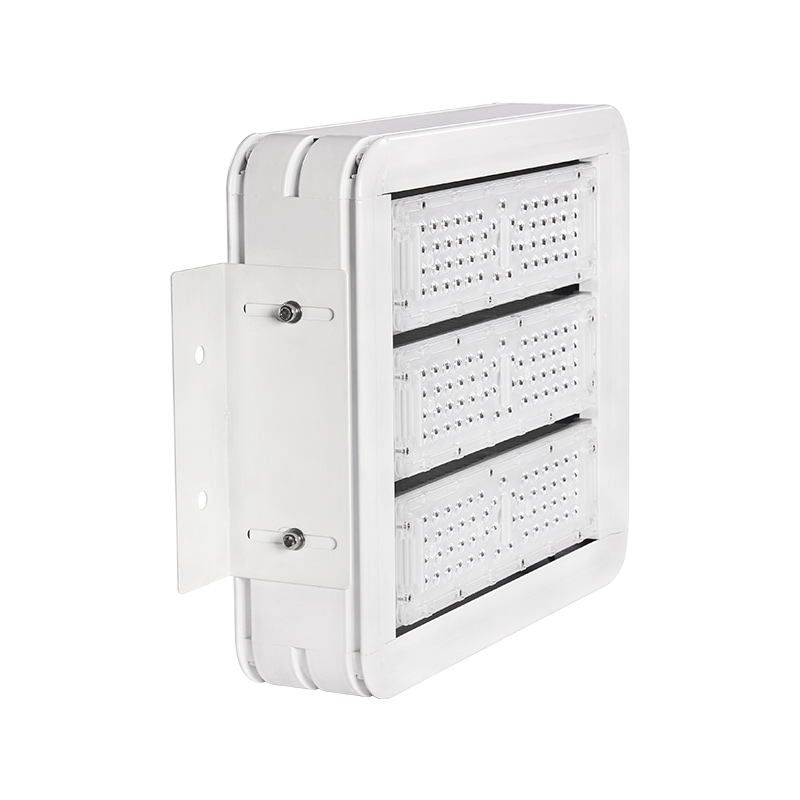

5150W Recessed Type LED Canopy Light for Gas Station Lighting Led Canopy Light
| Product model |
FL-YZD-DCR2 |
| Power |
50W/100W/150W/200W/ 250W/300W |
| LED Quantity |
64/128/192/256/ 320/384 pcs |
| Total light |
4500LM~39000LM |

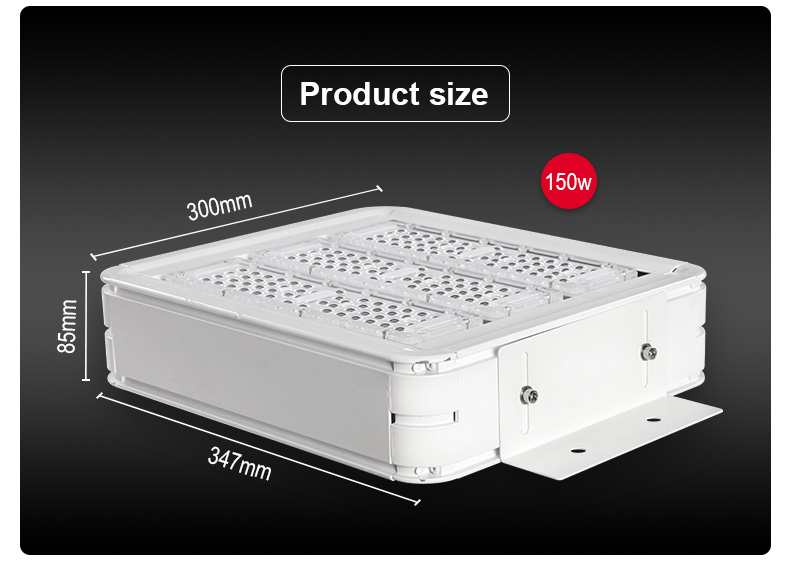

| Dimensions |
(140/220/300/380/460/ 540)*347*85mm(L*D*H) |
| Net weight |
6.3kg |
| Chip brand |
|
| Chip model |
SMD3030 |
| Luminaire efficacy |
130LM/W |
| Beam angle |
90° |
| Color temperature |
3000-6500K Optional |
| Input voltage |
AC100-305(V) |
| lifespan |
50000(H) |
| Working temp |
(-30℃~+50℃) |
| Installation method |
Surface Mount |
| Warranty |
3-5 years |

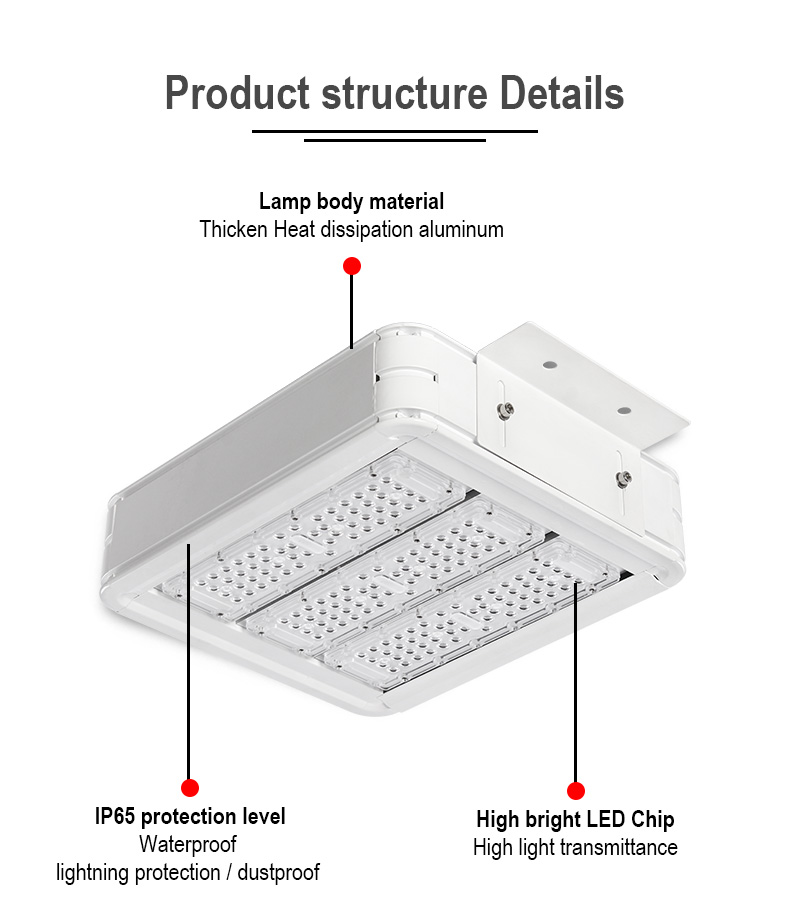

| Lamp body material |
PC+ aluminum heat block |
| Applicable scene |
Widely used in gas stations, tunnels, airports, parking lots, toll booths, etc. |
Wide range of uses: gas stations, tunnels, airports, parking lots, toll booths, indoor garages, etc.
Bright LED canopy light
High-brightness engineering lights, quality can withstand the test.
Born for safety, innovate for quality.
Permeable air convection structure, large heat dissipation area.

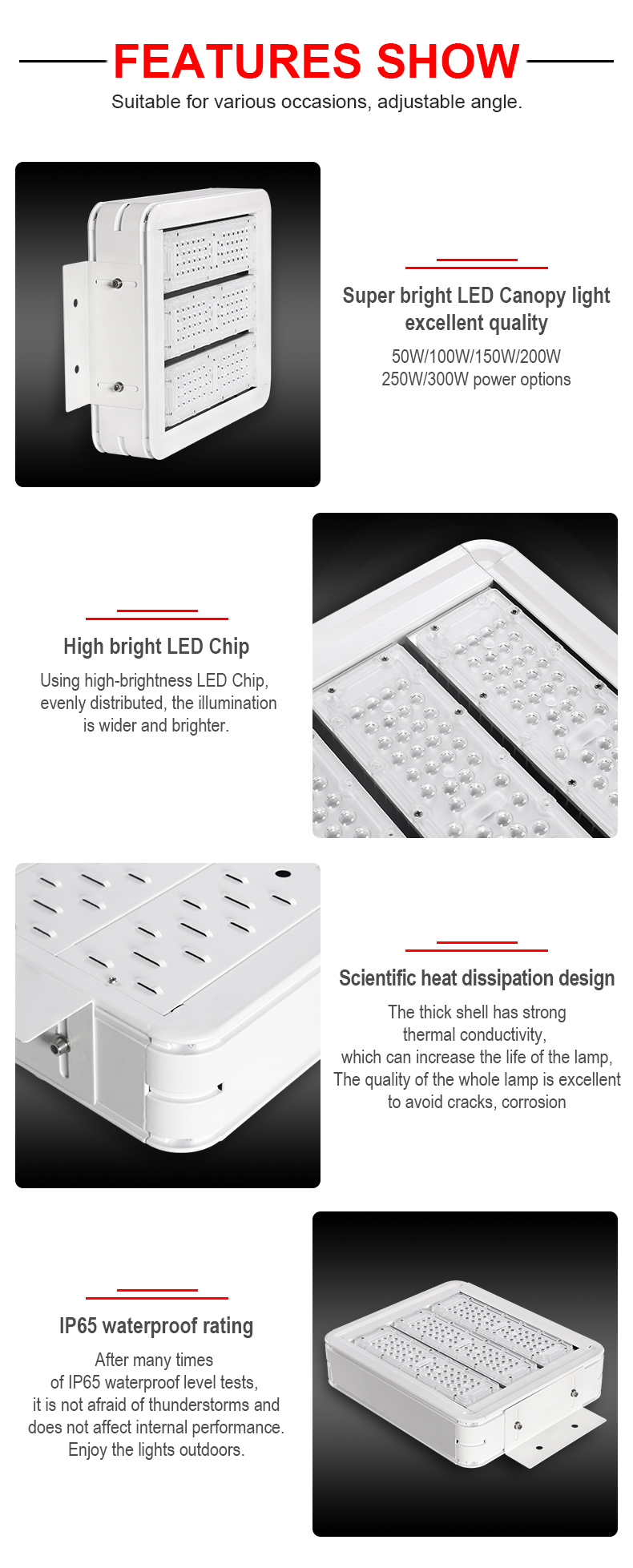

Product features:
- Life span: 50000 hours
- IP65 rating waterproof and dust proof for outdoor use
- Color temperature(CCT): 3000K, 5000K, 6500K
- Working temperature: -30 to 50℃
- High output 130lm/w SMD3030 chips
- Sturdy Die-casting aluminum housing
- Cast aluminum thermal management for optimal heat sink
- Protective powder coating
- Reflective lens to optimize lighting efficiency and minimize glare
- Instant start, no noise, no flicker
- Super thin design recessed or surface mounted installation
- 5 year warranty
Application:
- Warehouse
- Residential
- LANDSCAPE
- Gas station
- Garage
- Parking lot
- Canopy
Frequently Asked Questions (FAQ)
What options are available for the power and LED quantity?
The LED canopy light is available in multiple power options: 50W, 100W, 150W, 200W, 250W, and 300W, corresponding to 64, 128, 192, 256, 320, or 384 LEDs respectively.
What is the lifespan and warranty of this LED canopy light?
This light fixture has a lifespan of 50,000 hours and comes with a 3 to 5-year warranty depending on specifications.
Is this canopy light suitable for outdoor use?
Yes, it features an IP65 waterproof and dustproof rating, making it ideal for outdoor applications like gas stations and open parking lots.
What are the available color temperatures (CCT)?
The light offers color temperatures ranging from 3000K to 6500K, with standard configurations available in 3000K, 5000K, and 6500K options.

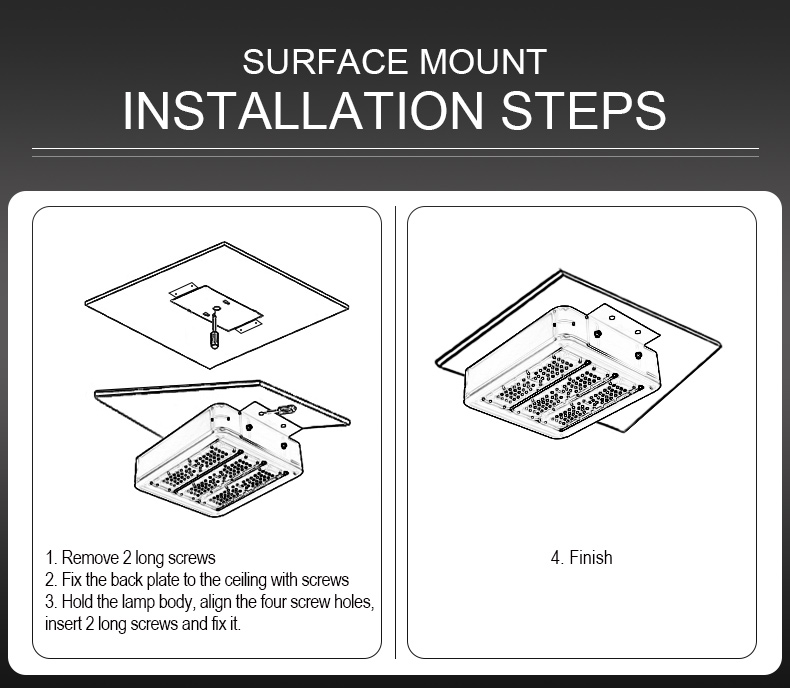

What type of installation methods are supported?
With its super-thin design, the LED canopy light supports both recessed and surface mount installations.
What materials are used for heat dissipation?
The light body is made of PC along with a sturdy cast aluminum heat block for optimal thermal management and heat dissipation.
