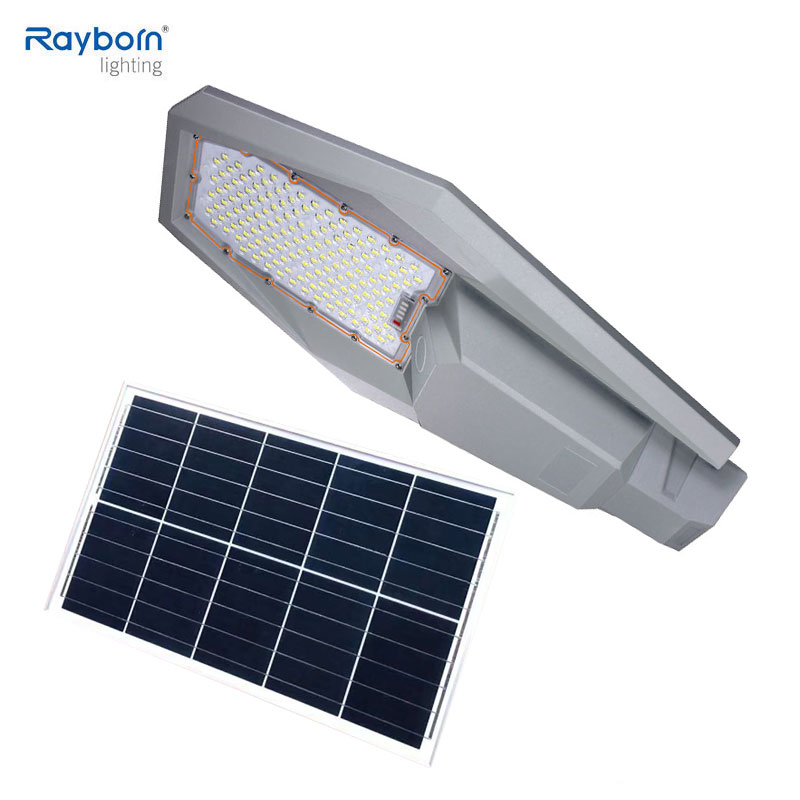

| 150W LED Solar Street Light Main Technical Parameters | |||
|---|---|---|---|
| Item No.: | RB-SOL-150WB | ||
| Solar panel: | 9V / 50W (high efficiency polycrystalline silicon) | ||
| Battery: | Lithium battery (6.4V 24AH) | ||
| Power Factor: | >0.95 | ||
| Power Efficiency: | >92% | ||
| LED Power: | 150W | ||
| LED: | 18000 LM (Bridgelux) | ||
| System Consumption: | 145W | ||
| LED Luminous Flux | Warm White | 16000LM | |
| Pure White | 17500LM | ||
| Cool White | 18000LM | ||
| Viewing Angle: | 140x90 degree | ||
| Charging time: | 8 hours | ||
| Color Temperature | Warm White | 3000-3500K | |
| Pure White | 4000-5300K | ||
| Cool White | 5300-6000K | ||
| Color Rendering Index: | Ra>80 | ||
| Materials: | Aluminium Alloy | ||
| Discharging time: | Over 36 hours | ||
| LED Junction Temperature: | ≤115ºC | ||
| Working Temperature: | -35ºC~55ºC | ||
| IP Grade: | IP66 | ||

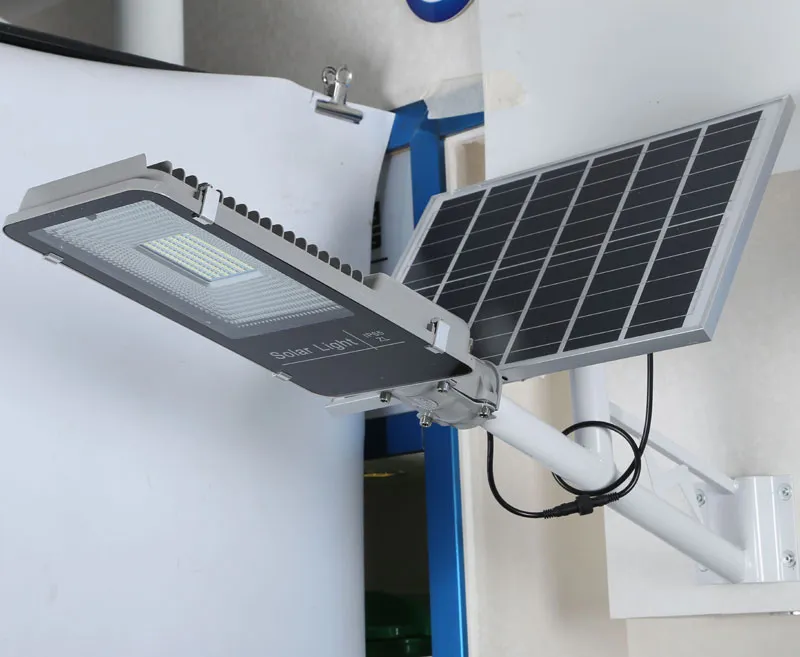

| Mounting height: | 5-8 meters | ||
| Space between lights: | 15 m | ||
| Working Life-span: | 50000 H | ||
| Power Line: | 1.0 mm three line | ||
| Connect Wire | Brown | L | |
| Blue | N | ||
| Yellow / Green | G | ||
| Certificate: | CE/ROHS | ||
| Housing color: | Grey | ||

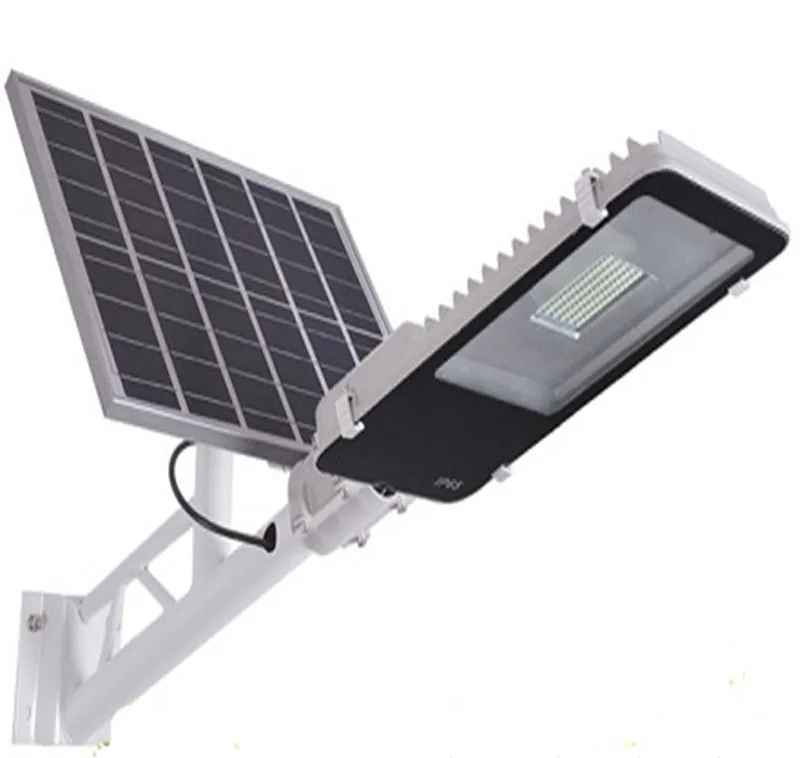

| Products Size: | 814*370*105 mm | ||
Bridgelux LED Chips which is the most famous Brand in chips field, high efficiency and long lifespan > 50000 hours.
LED Street light provides a range of color temperatures from 3000, 4000, 5000, and 6000 Kelvin helping to enhance a building's exterior.
Optical assembly hermetically sealed providing IP65. LED optical systems in the fixture maximize the utilization of light onto the target area, improving the uniformity of light.
Fishbone style high efficiency heat sink, elegant appearance. Die-cast aluminum housing electrostatically sprayed with a polyester powder paint finish, following anti-corrosion priming, and oven cured at 180ºC.
Silicon rubber cable for power input. Fastened with screw in the cable gland.
3 years warranty on the entire luminaire. Certified with FCC, CE, and RoHS approval for absolute reliability.

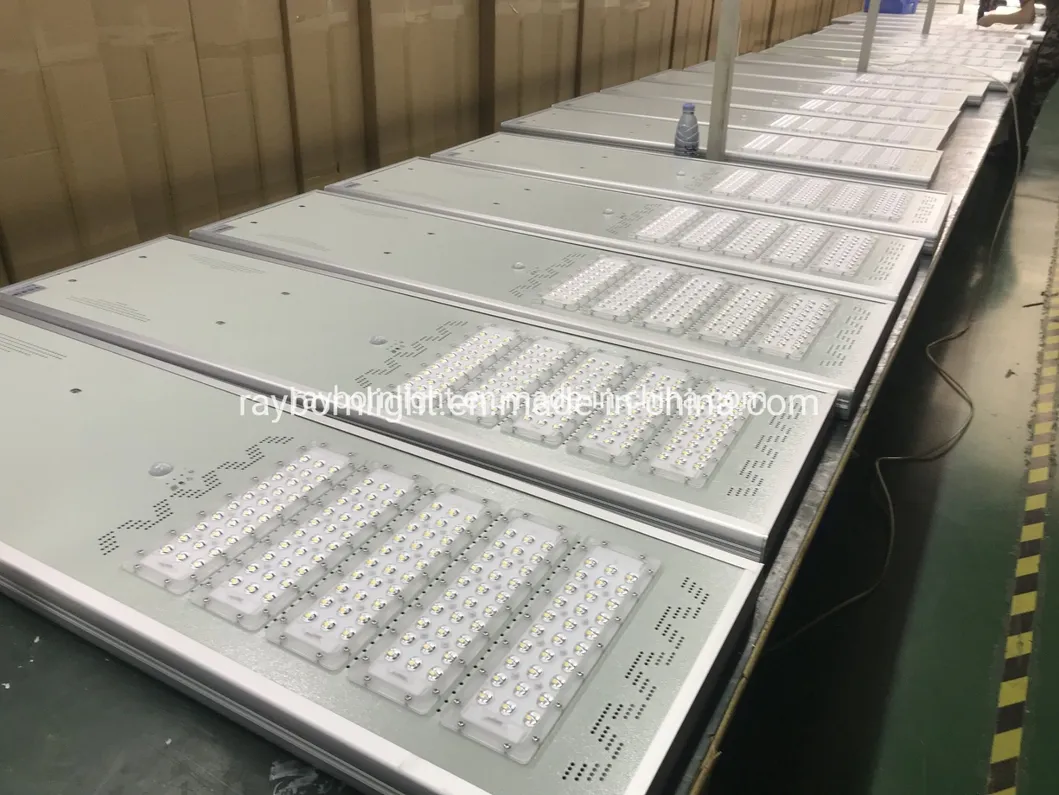

Rigorous product testing includes high-low temperature tests, waterproof tests, shockproof tests, burn-in testing, tensile test, salt spray test, and more to ensure long-term performance.

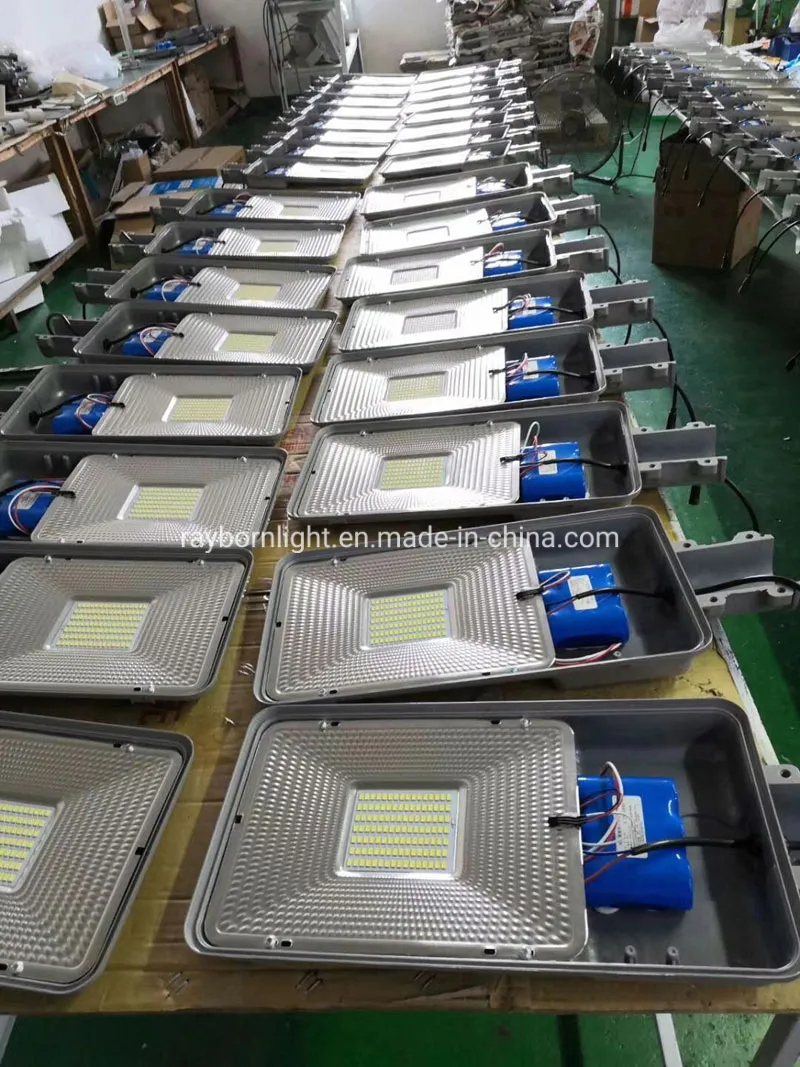

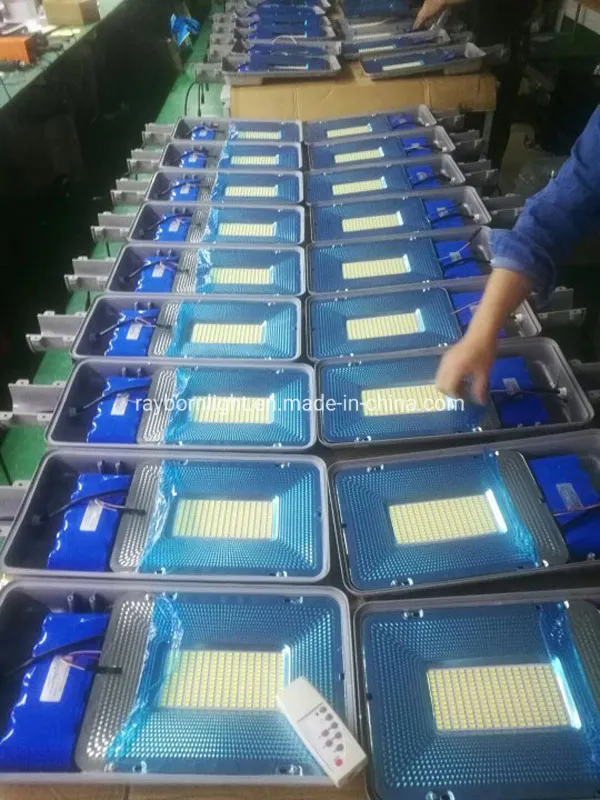

Before shipping, all the LED streetlights will be over 24 hours aging tested. The inspection department will test 100% of products including light-up test, power wattage test, high-voltage test, waterproof test, ground connection test, and so on. Defective rate is controlled to less than 0.1%. Quality is ensured, you can be assured.
