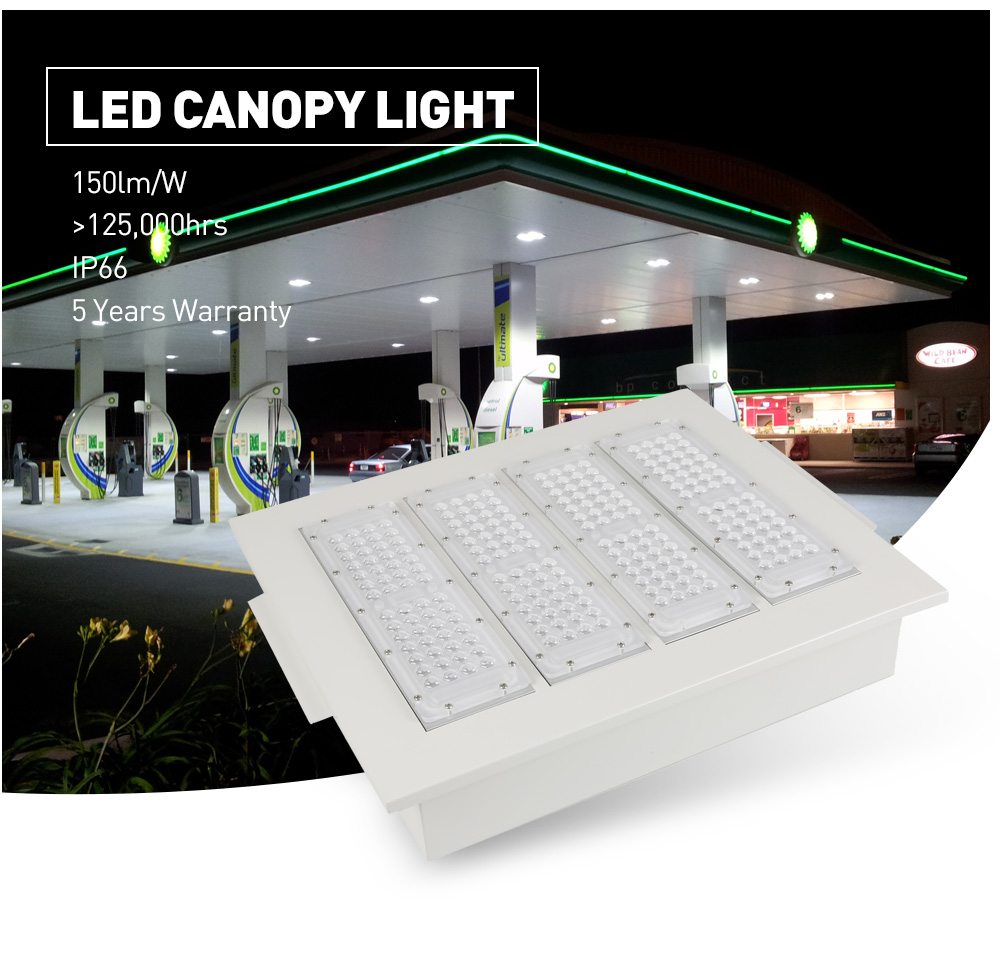

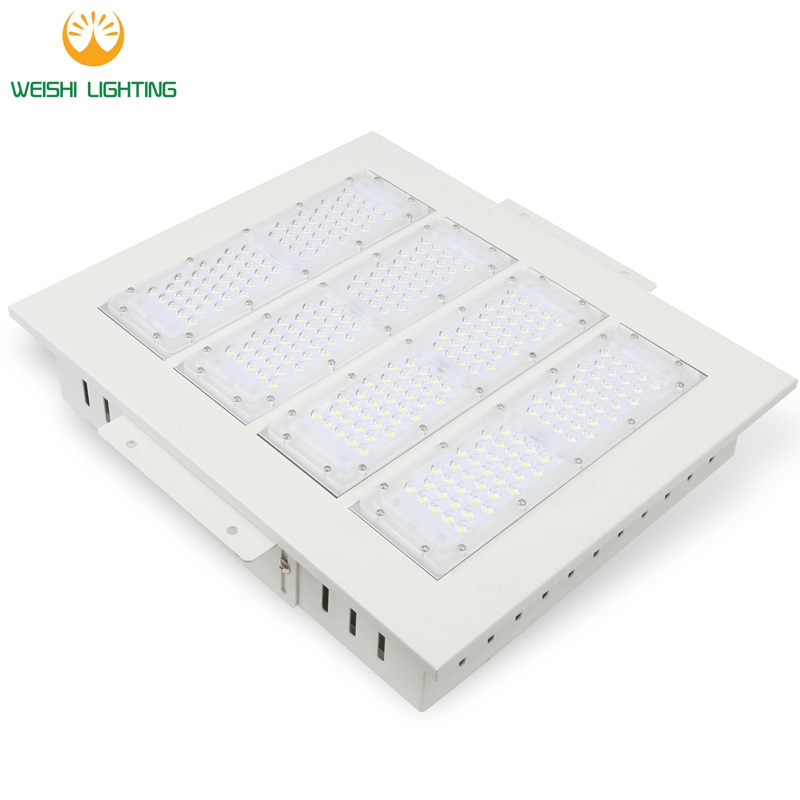

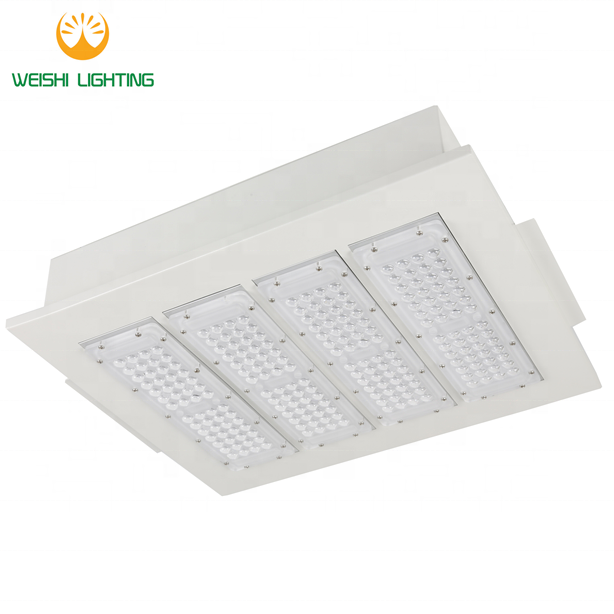

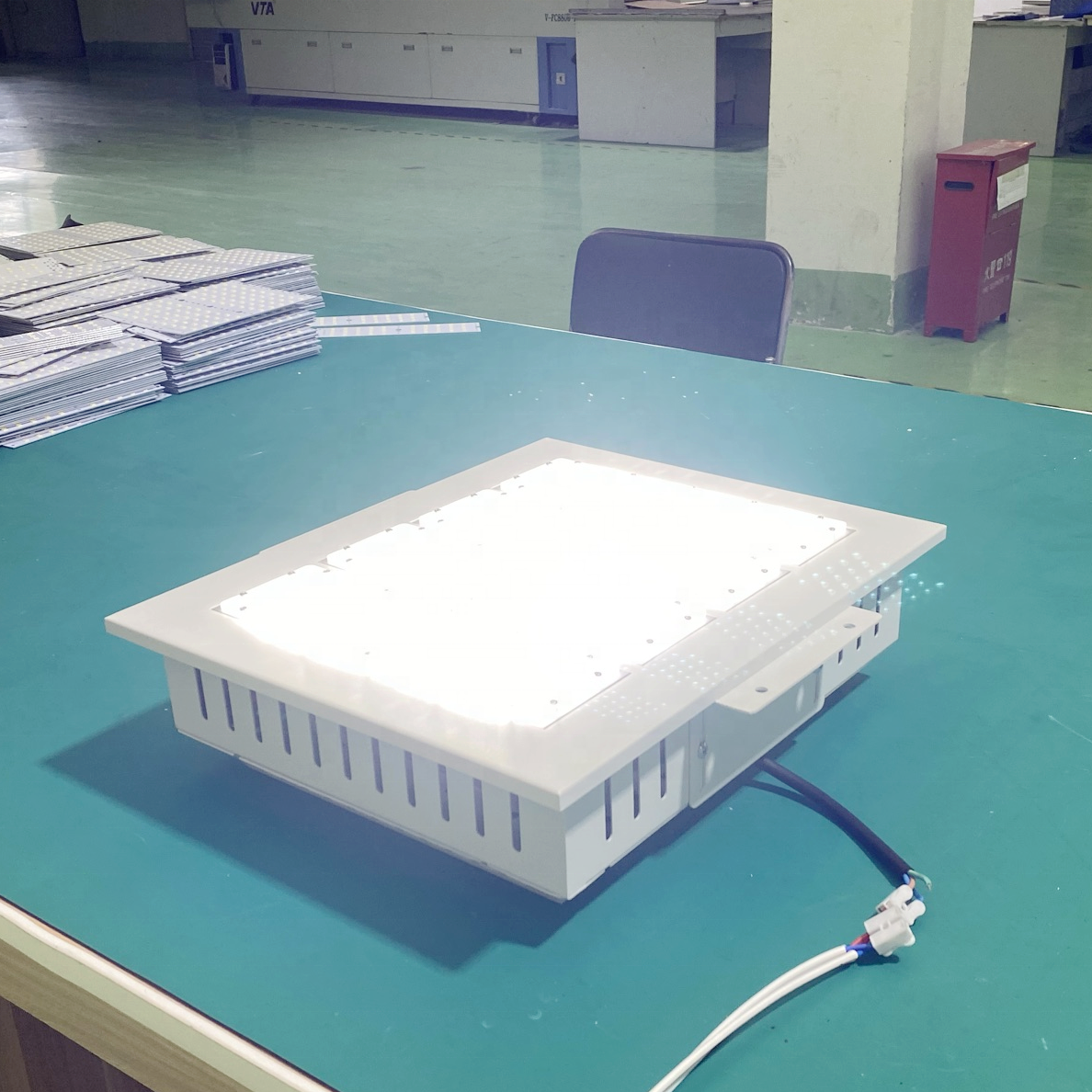

LED Canopy Lights can be used for patrol stations, and outdoor canopy ceilings.
It has high lumen efficacy with 160lm/W LEDs. With high quality Meanwell LED drivers and IP67 waterproof modules and connection, the protection grade is IP66, can be widely used for all types of outdoor environments.

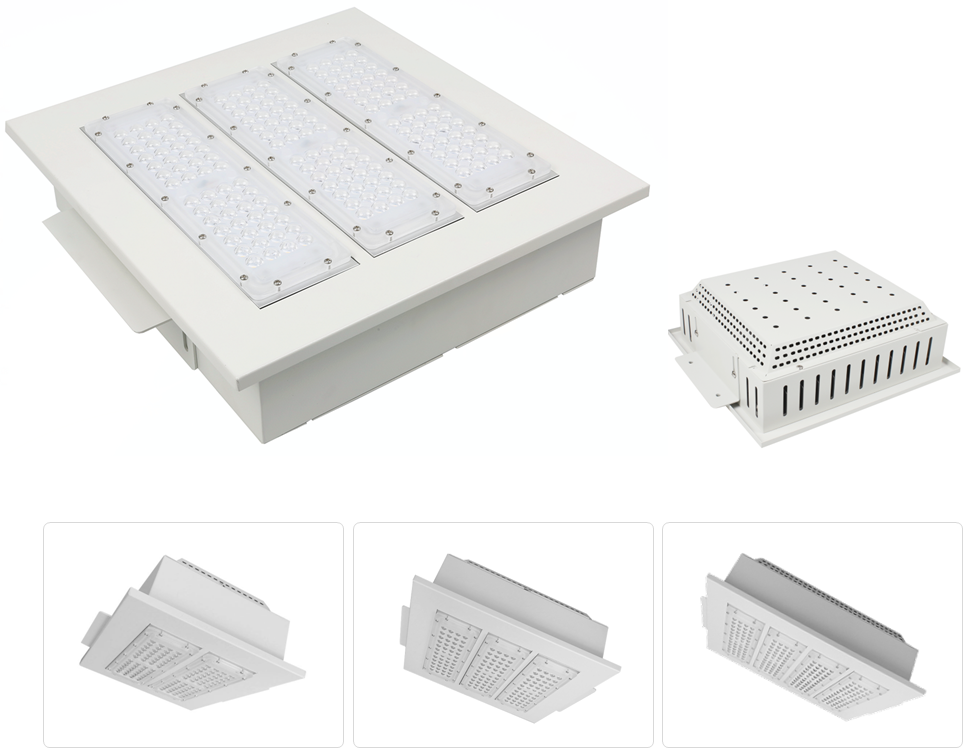

| MODEL NO. | WSCPM-2 | WSCPM-3 | WSCPM-4 | WSCPM-5 | WSCPM-6 |
|---|---|---|---|---|---|
| POWER | 100W | 150W | 200W | 240W | 300W |
| MODULE QTY | 2 MODULES | 3 MODULES | 4 MODULES | 5 MODULES | 6 MODULES |
| INPUT VOLTAGE | 100 - 305V AC | ||||
| LEDs | CREE or Lumileds 3030 LEDs (>160lm/W / >190lm/W) | ||||
| LED QTY | 128pcs | 192pcs | 256pcs | 320pcs | 384pcs |
| DIMENSIONS(mm) | 280*350*115 | 366*350*115 | 452*350*115 | 538*350*115 | 624*350*115 |
| NET WEIGHT(kg) | 4.7 | 5.8 | 6.9 | 8.0 | 9.2 |

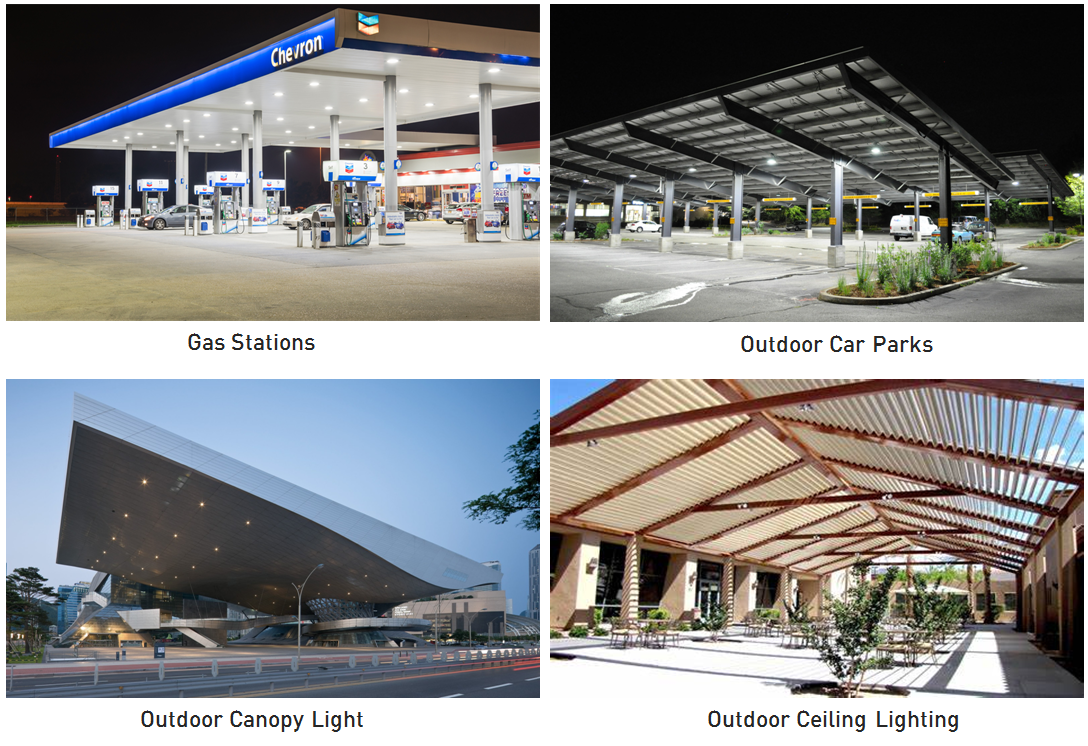

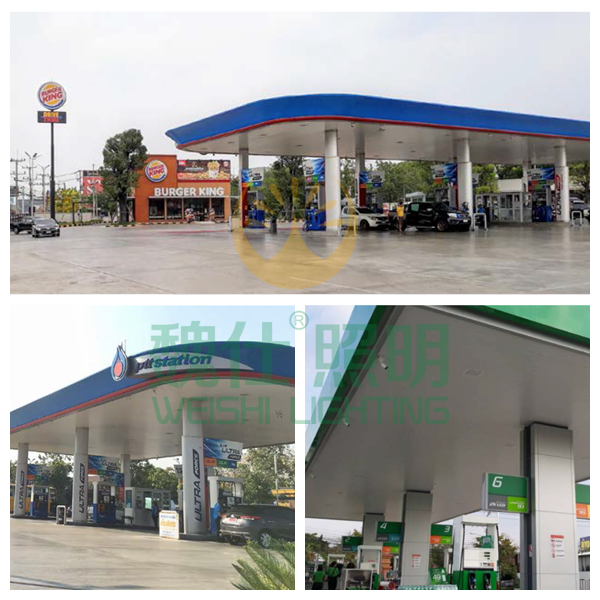

The LED canopy light can be widely used for all types of outdoor environments with ceilings, such as petrol stations, garages, factories, warehouses, production lines, building exterior areas, stadiums, exhibition halls and etc.

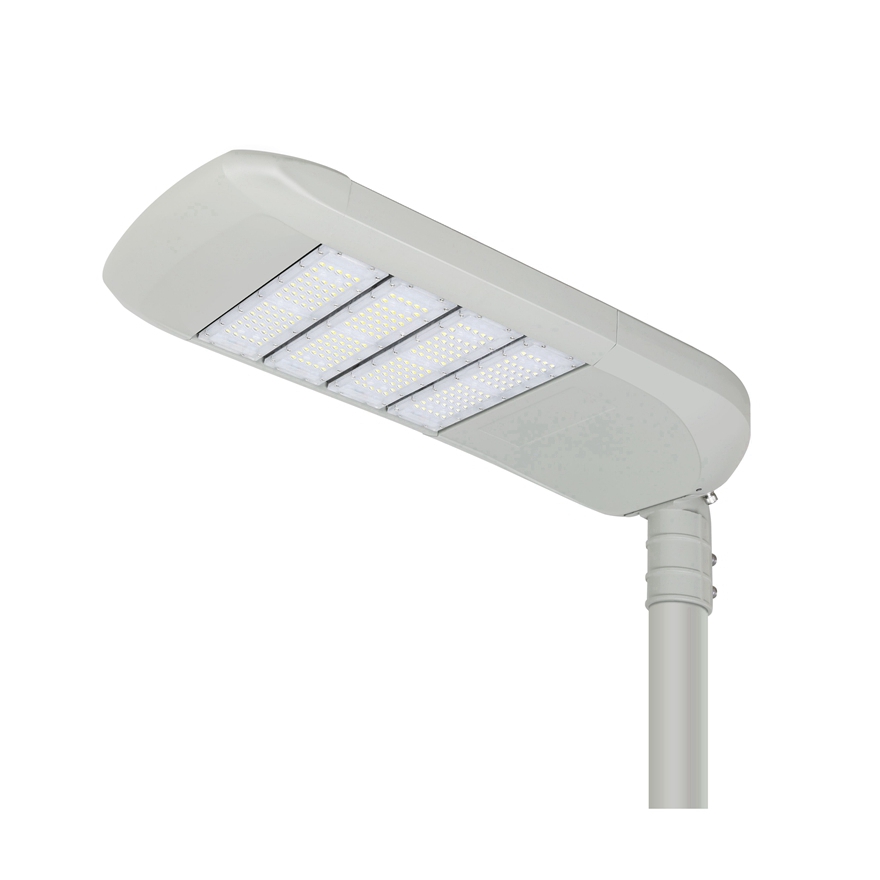

LED STREET LIGHT

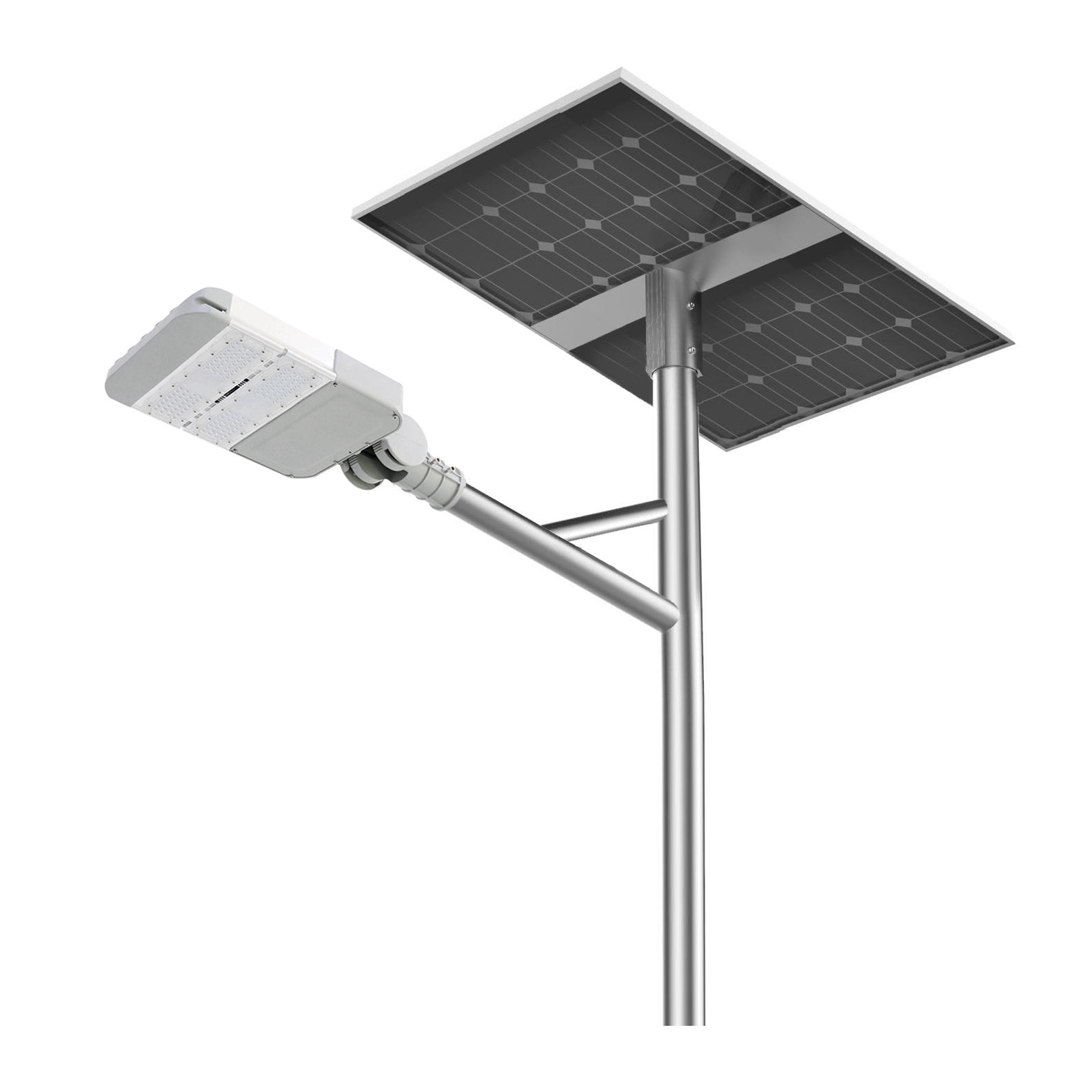

LED SOLAR STREET LIGHT SYSTEM
LED INTEGRATED SOLAR STREET LIGHT

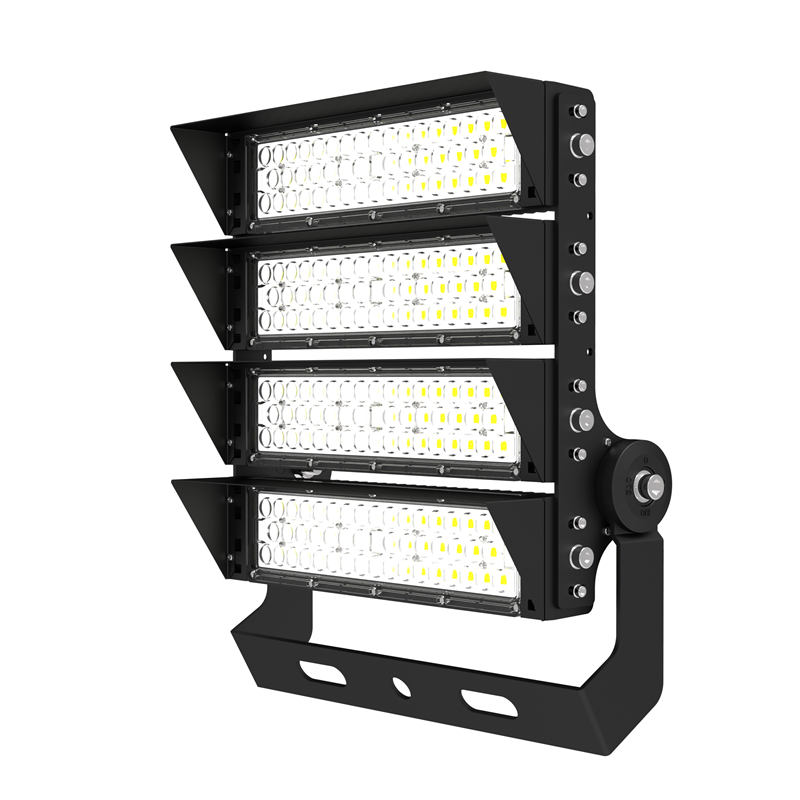

LED FLOOD LIGHTS
LED STADIUM LIGHTS
LED CANOPY LIGHTS

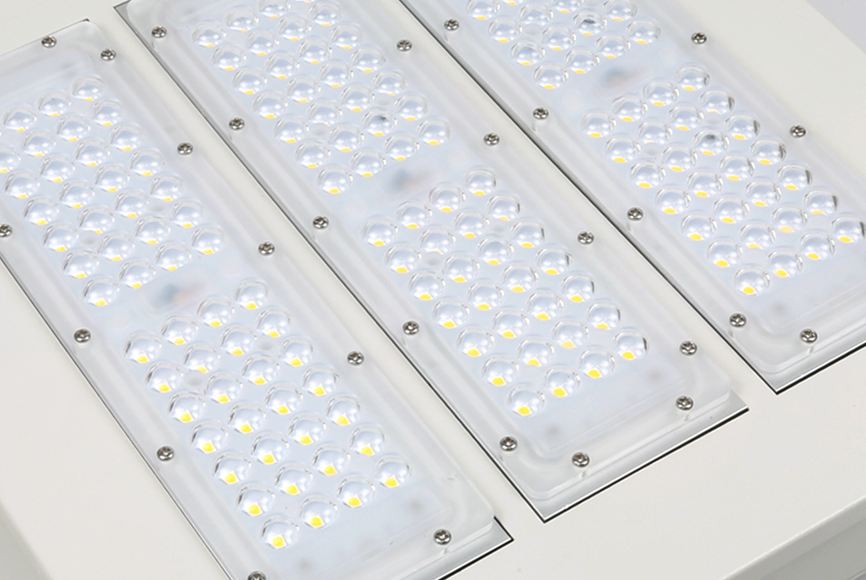

These LED canopy lights feature high-efficacy CREE or Lumileds 3030 LEDs, delivering an efficacy of over 160lm/W or up to 190lm/W depending on the specific model requirements.

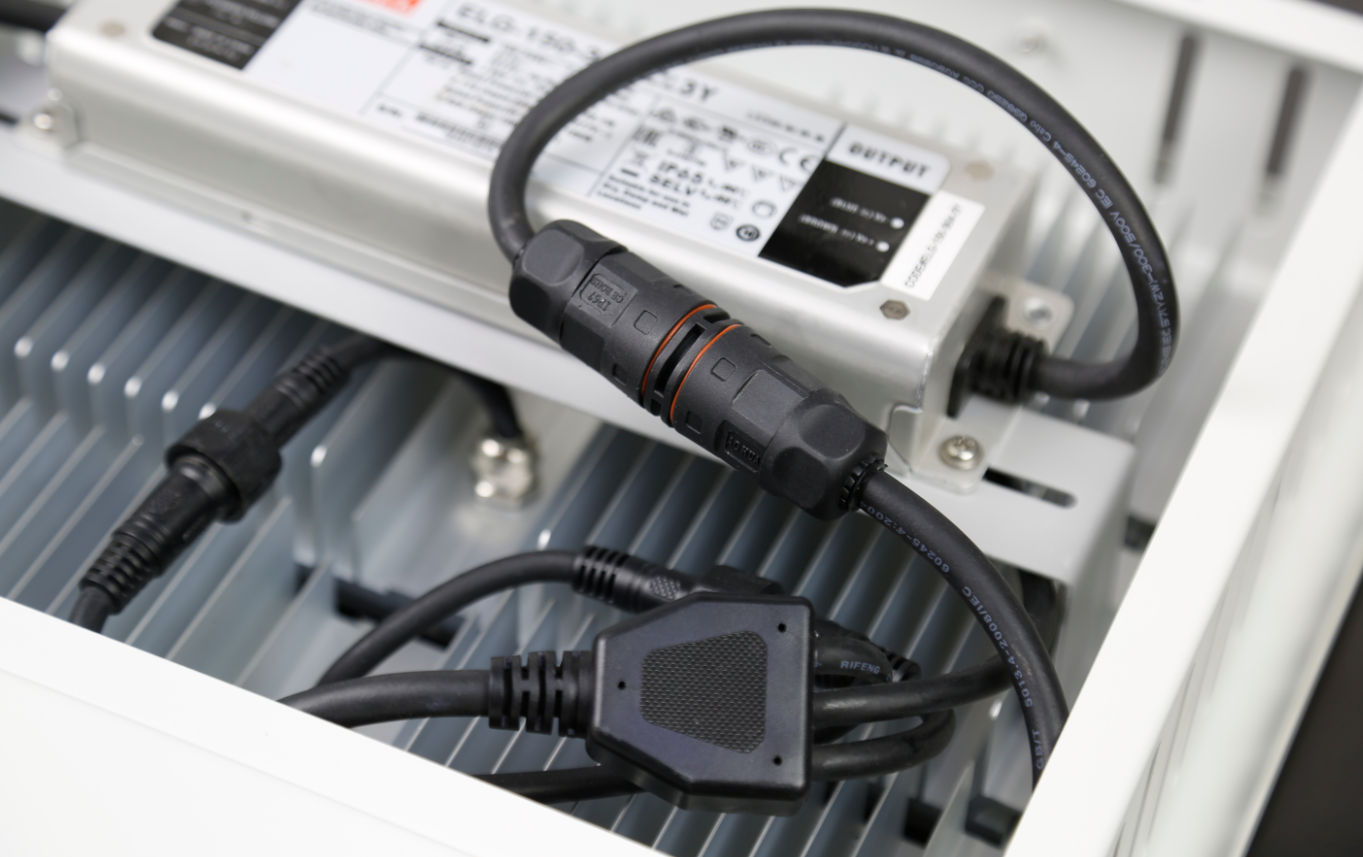

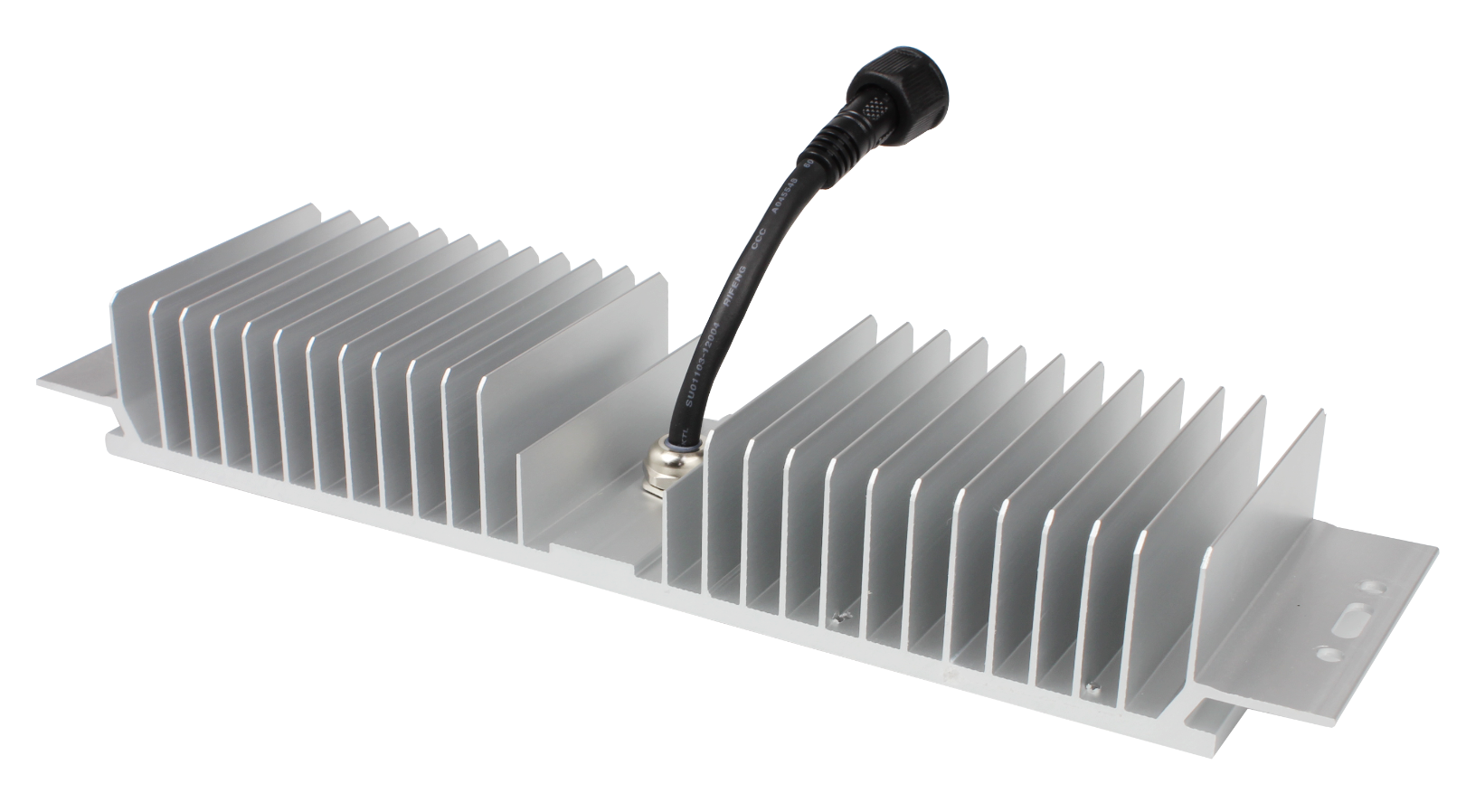

With an IP66 protection rating, waterproof modular designs, and IP67 cables and connectors, they are designed to withstand harsh outdoor environments such as petrol stations, exterior building ceilings, warehouses, garages, and factories.

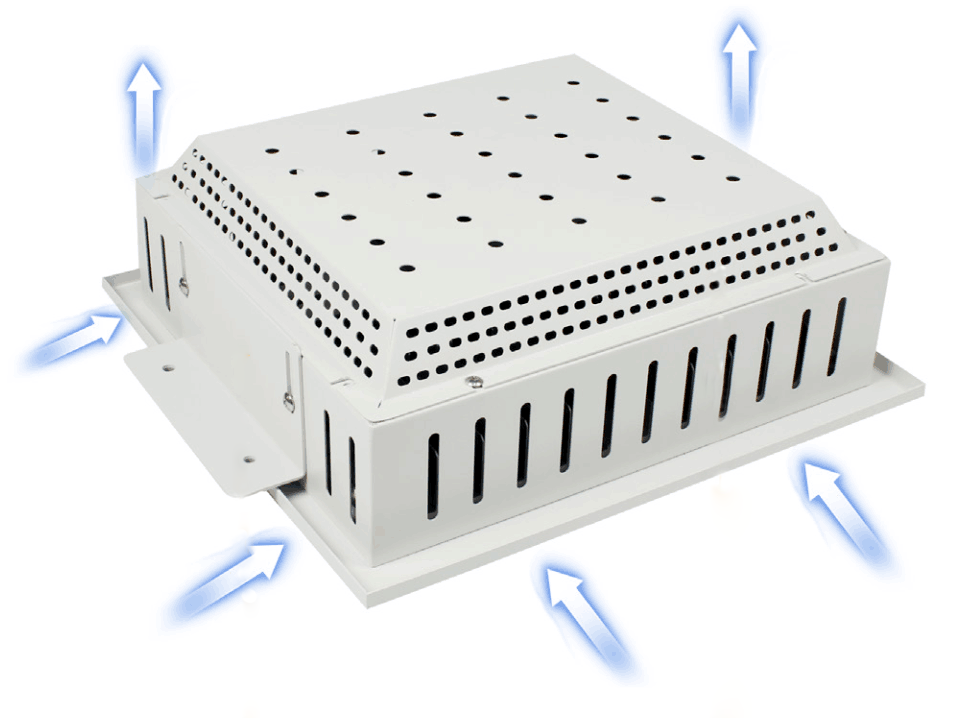

The integrated air ventilation structure creates consistent airflow around the modular heat sinks, reducing the operating temperature. This ensures a lower working temperature and significantly extends the lifespan of both the LEDs and the drivers.

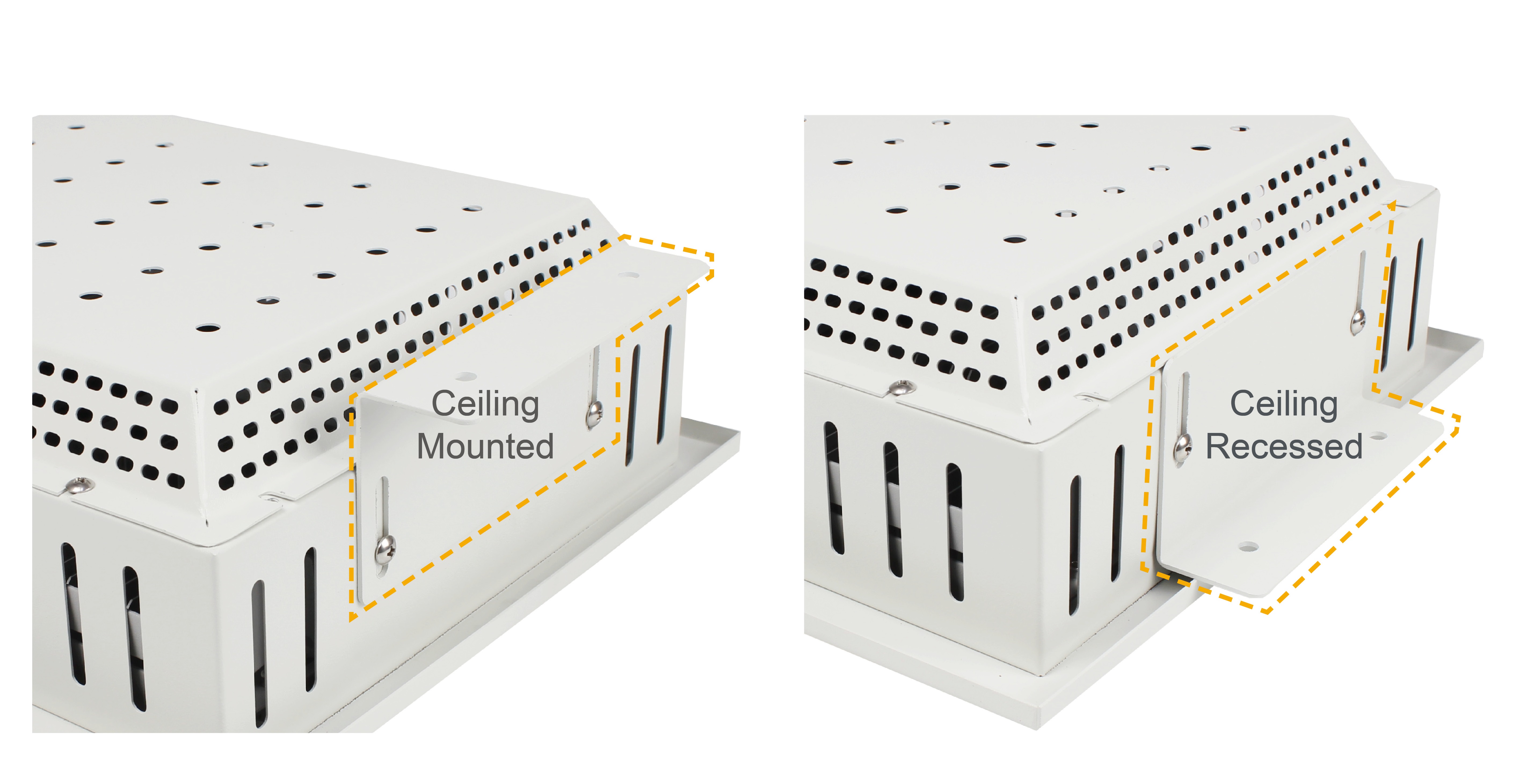

The fixture comes with multi-purpose installation brackets, allowing for a single bracket type to serve two different installation options: ceiling recessed or ceiling mounted.

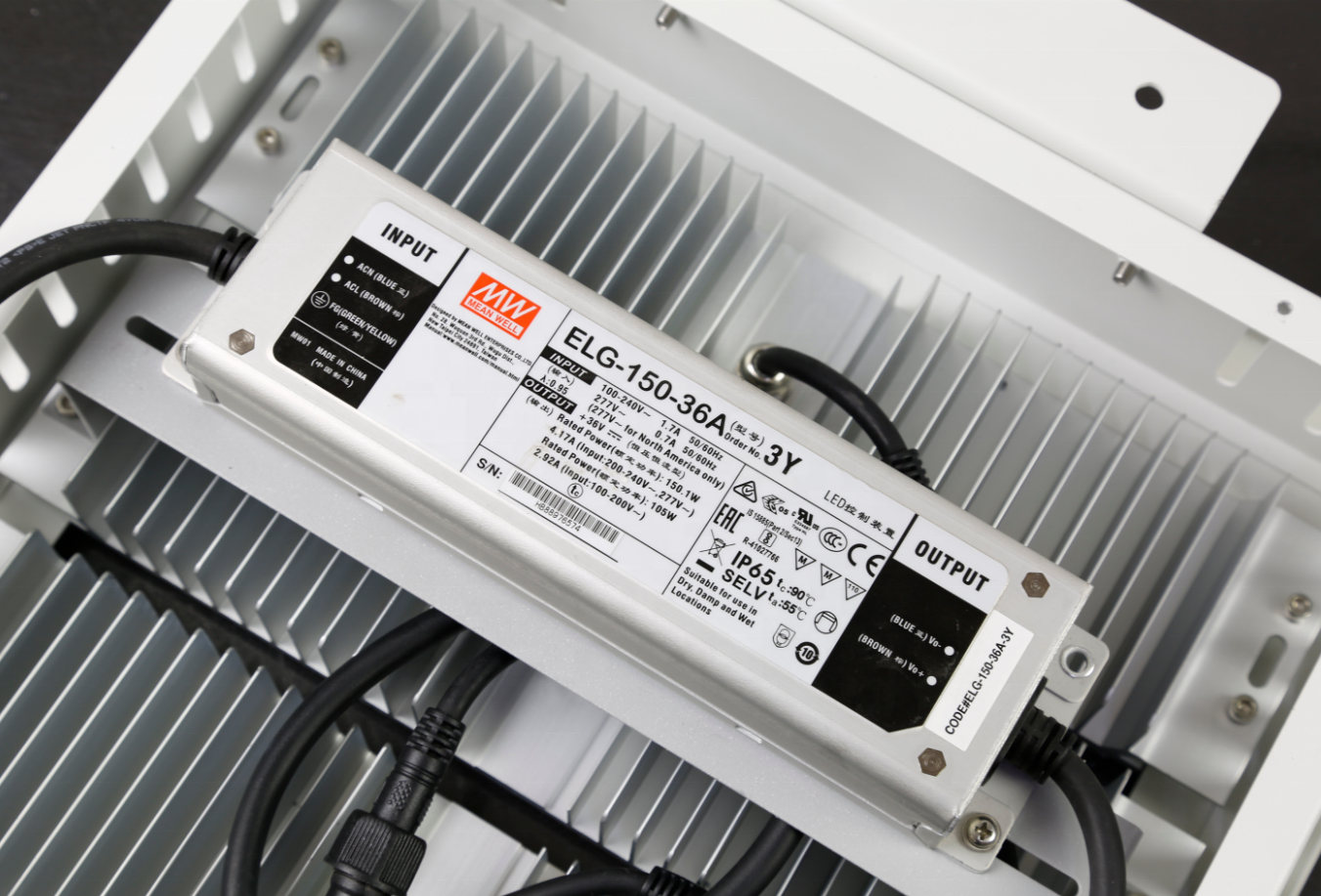

Yes, 0-10V dimming is optional. The fixtures are powered by high-quality Meanwell LED drivers that offer reliable performance and compatibility with standard control protocols.

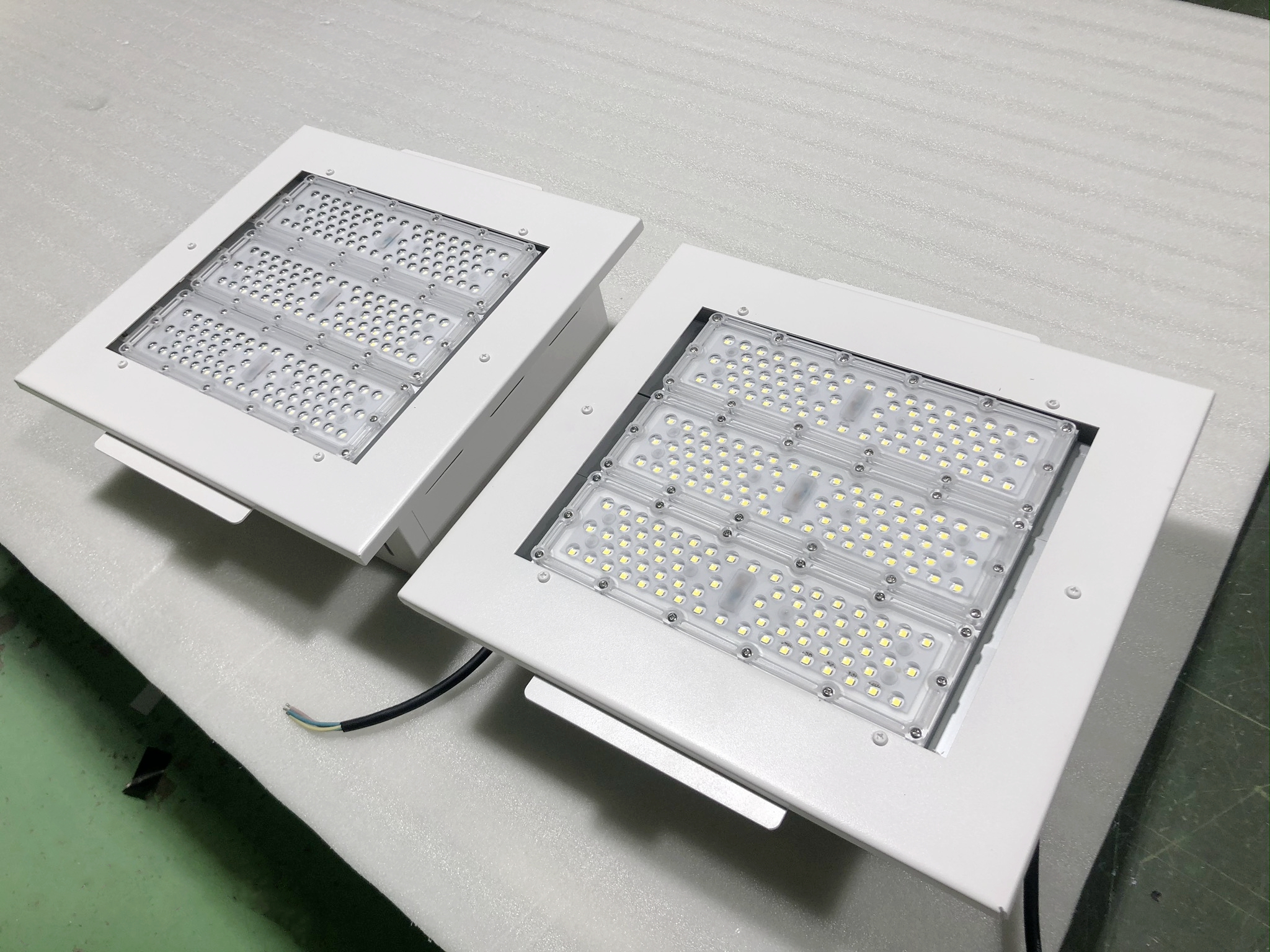

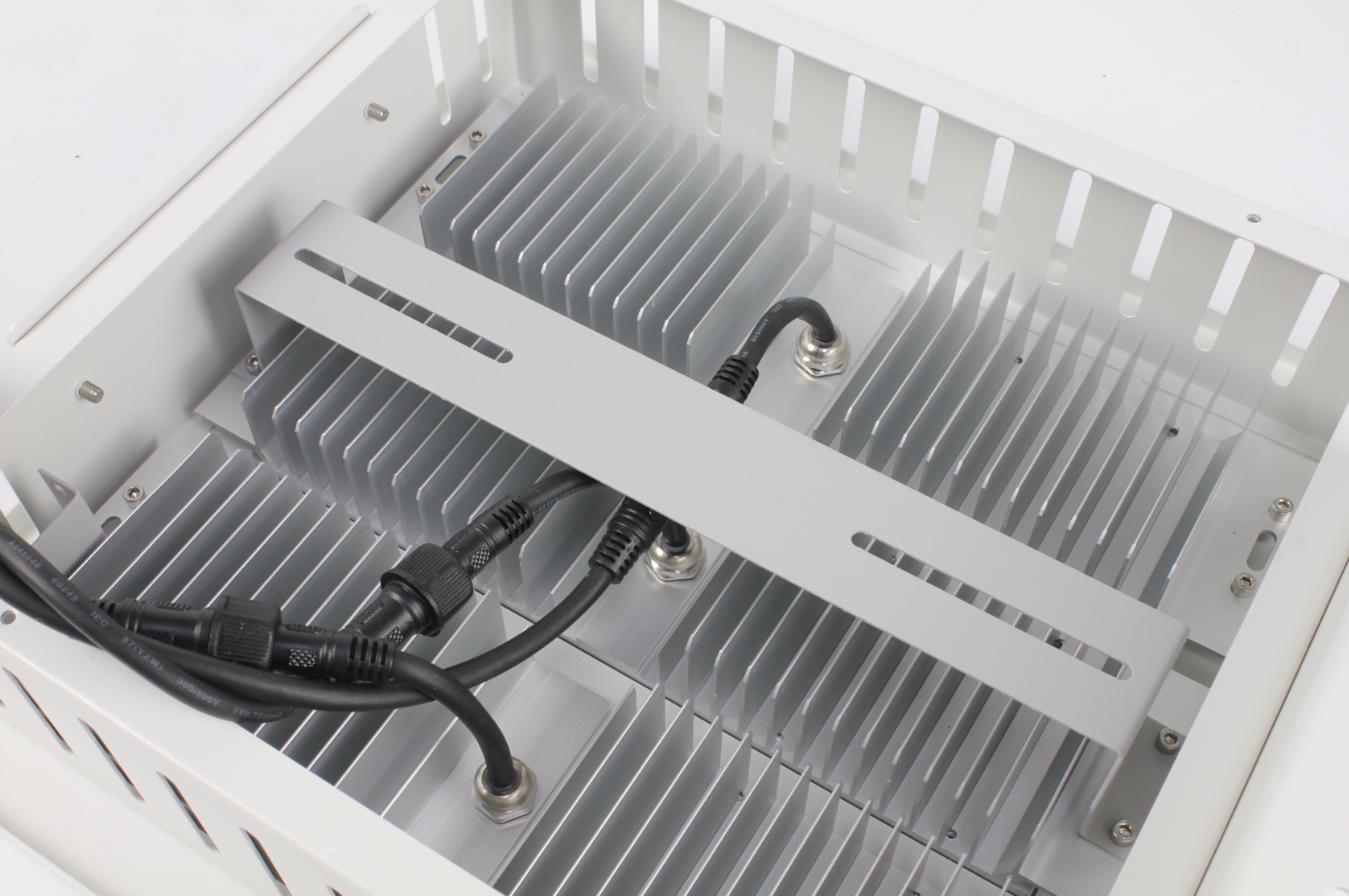

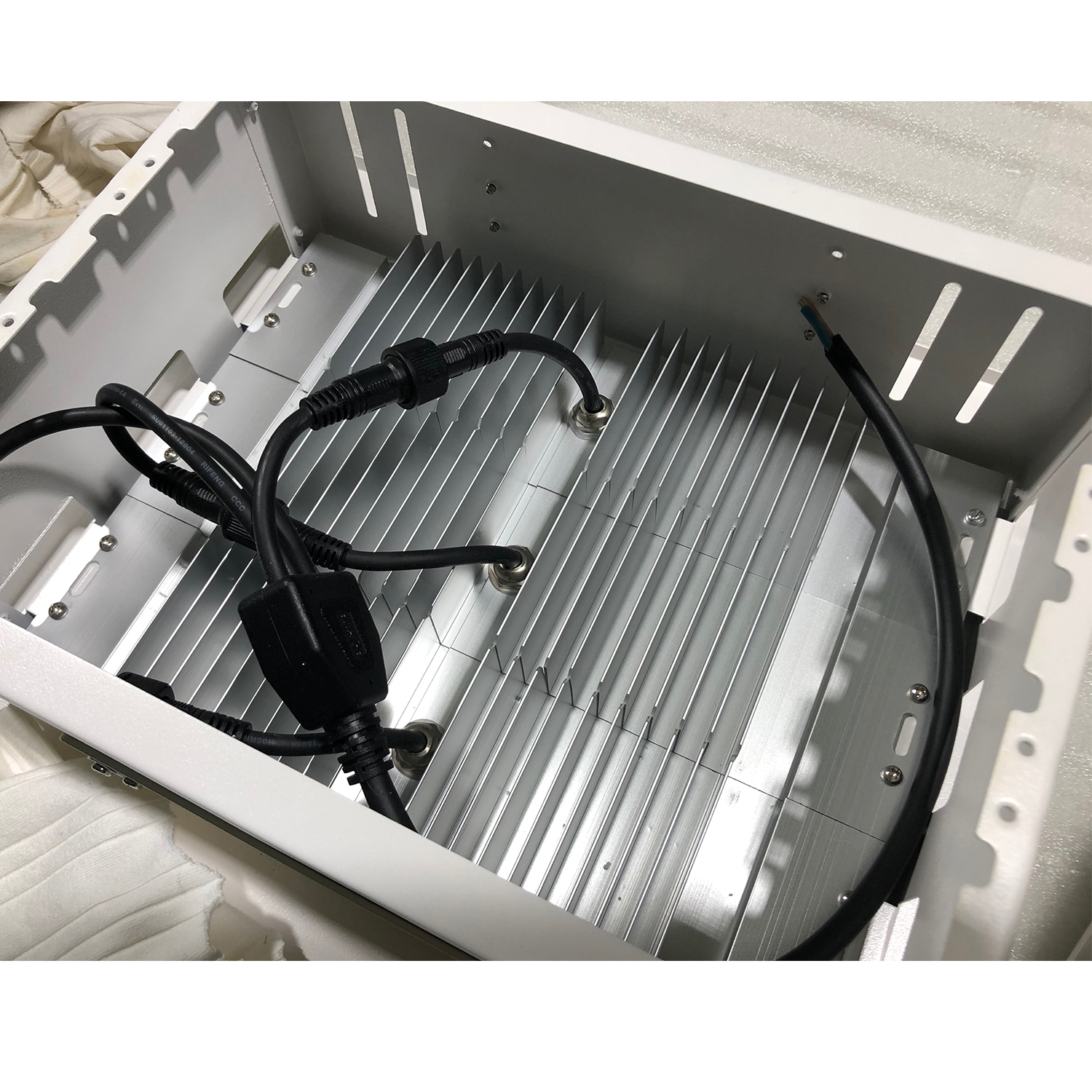

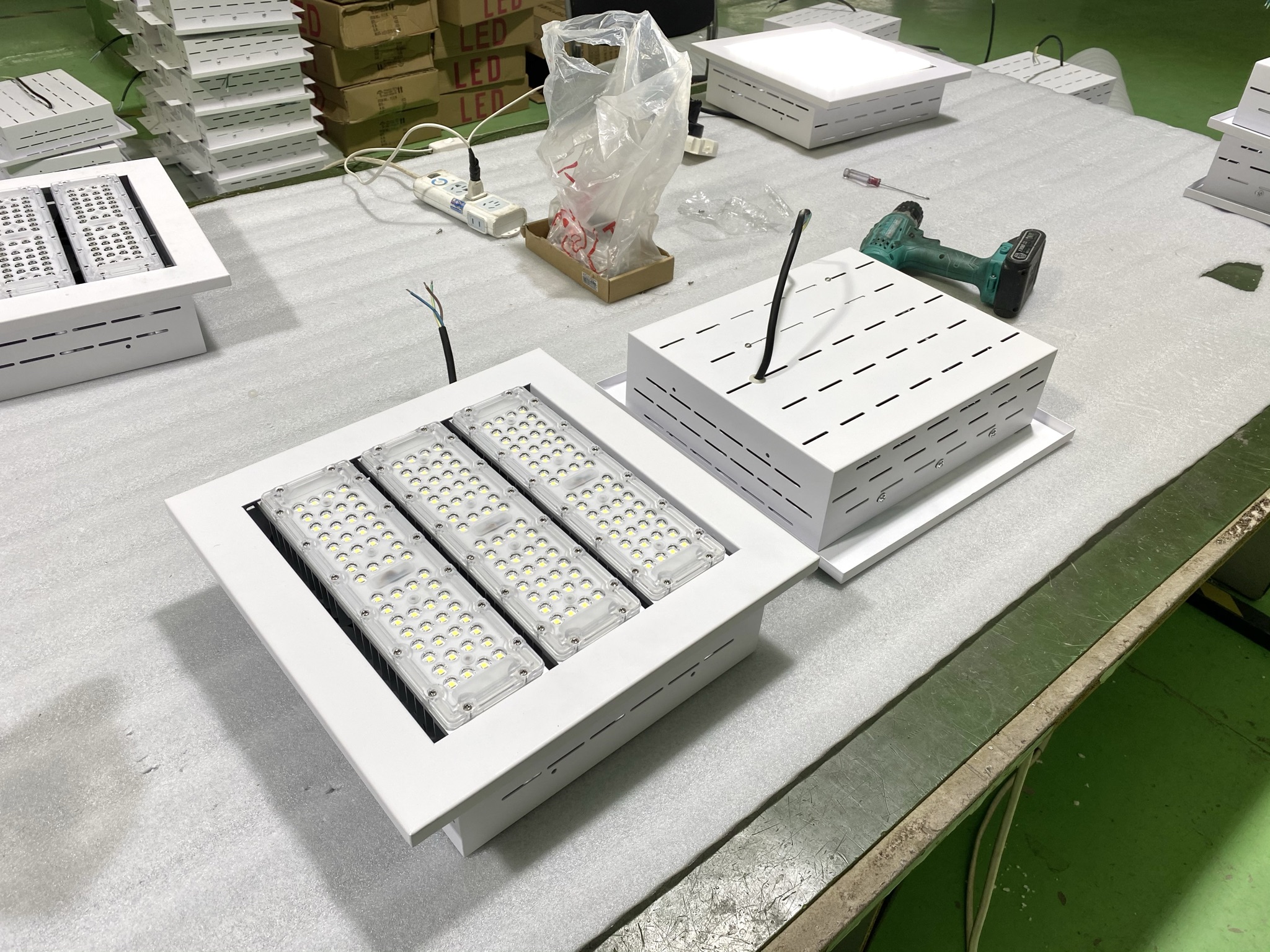

The modular heat sink system enables a wide power selection range from 100W up to 300W (using between 2 and 6 LED modules) to match diverse ceiling height and illuminance requirements.
