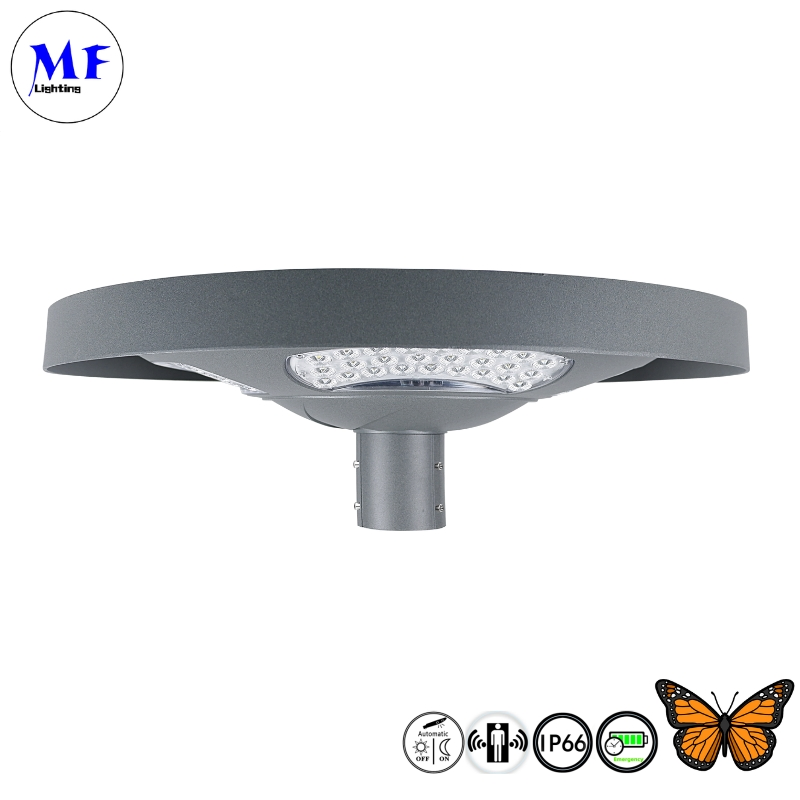

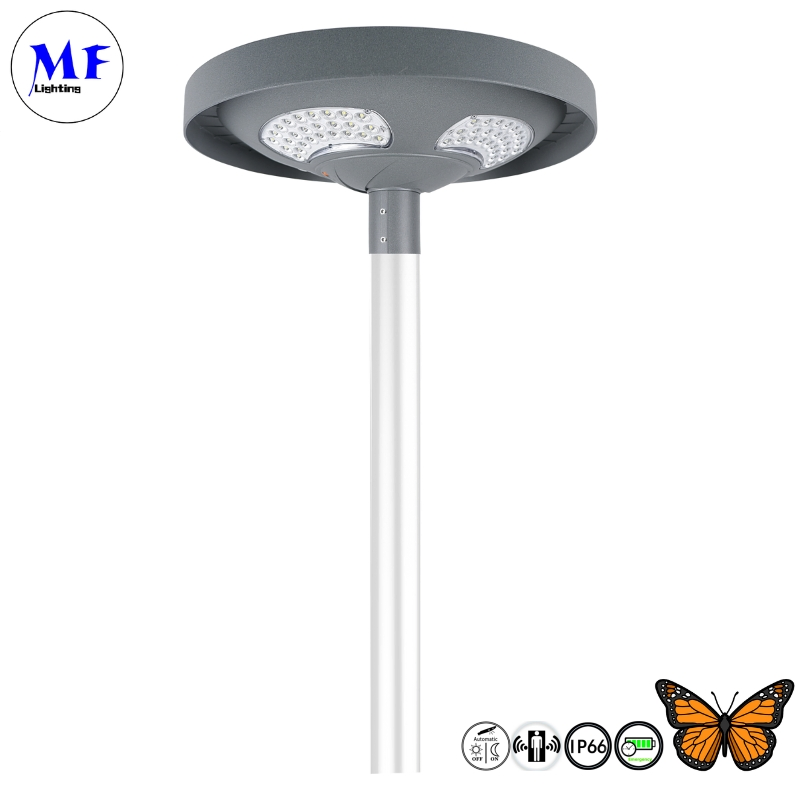

Factory price IP65 Waterproof Pole Mounted All-in-One Solar Garden Lamp LED Solar Light with Fresnel Lens Sensor for parking lot street plaza
Elevate outdoor spaces with Solar Garden Light Butterfly Series - engineered for sustainable brilliance. Combining high-efficiency monocrystalline solar panels, smart radar sensing (5-6m range), and modular durability, these lights deliver 30-40W illumination with zero grid dependency. Ideal for parks, residential pathways, and commercial landscapes.

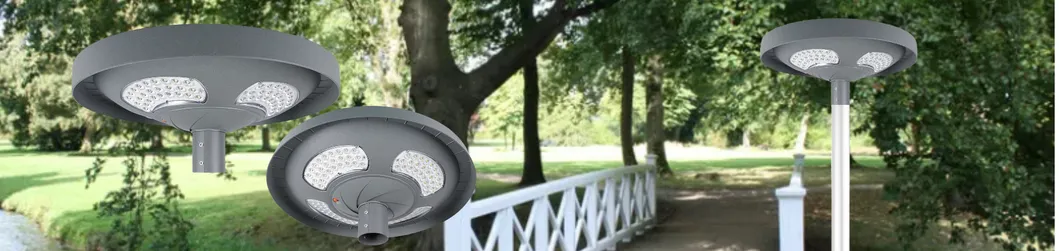

Waterproof Pole Mounted All-in-One Solar Garden Lamp
Basic Info
Model NO.
MF-TYD-1-30W/40W
Lamp Body Material
Aluminum+PC
Power
30W/40W
Warranty
2 YEARS
IP Rating
IP65
Certification
CCC, CE, RoHS
Voltage
DC5V
Battery
25000mA/35000mA
DC Output Voltage
DC3.2V
CRI
Ra>70
Efficiency (Lm/W)
100-110lm/w
Temperature
6000-6500K
LED Model
SMD 5054
LED Quantity
104PCS
Beam Angle
120°
Installation Caliber
76mm
Work Temperature
-15-45℃
Transport Package
Carton
Trademark
MF
Origin
China
HS Code
9405499000
Production Capacity
10000PCS/Month
Product Features
Energy Independence
  • Self-sustaining system: 5V high-yield solar panel charges 25,000mAh/35,000mAh Li-ion battery in 6-8 hours.
  • 110 LM/W efficacy - 30% brighter than conventional solar lights.

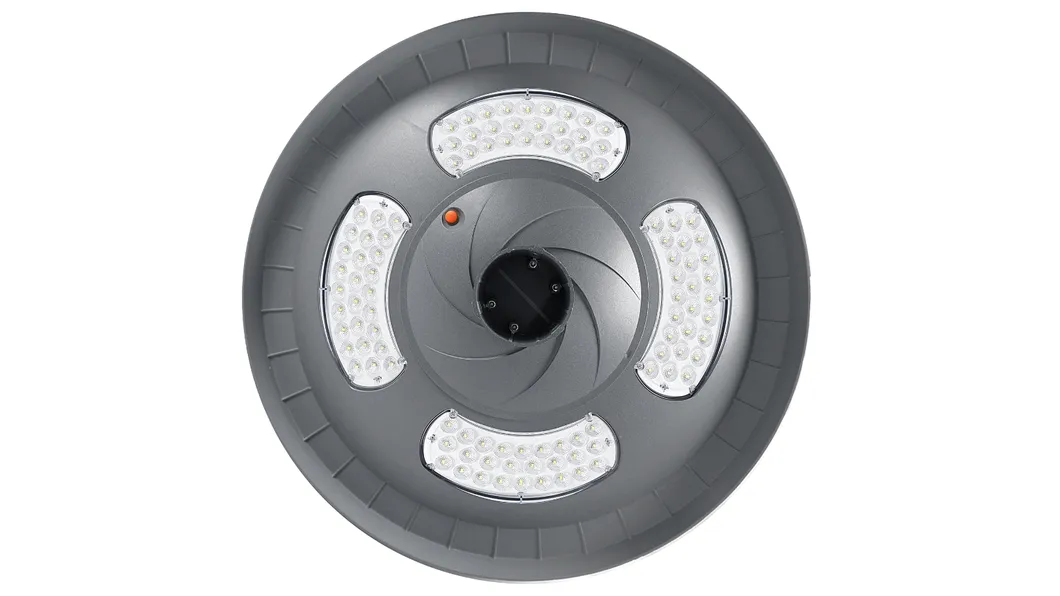

Energy Independence Solar Garden Light
The product uses solar energy as electric energy supply to provide illumination, and the solar panel is used for converting solar energy into electric energy to charge a storage battery. This product uses efficient LED light source design, with high luminous intensity, accurate beam, irradiation distance, green and environmental protection, simple installation, stable and reliable work, no cable, no consumption of conventional energy, long service life and other characteristics.
Solar Garden Light Application Close-up 1
Solar Garden Light Application Close-up 2
Intelligent Operation
  • Radar+Light Dual Sensors: Auto-activates at dusk, detects motion within 5-6m.

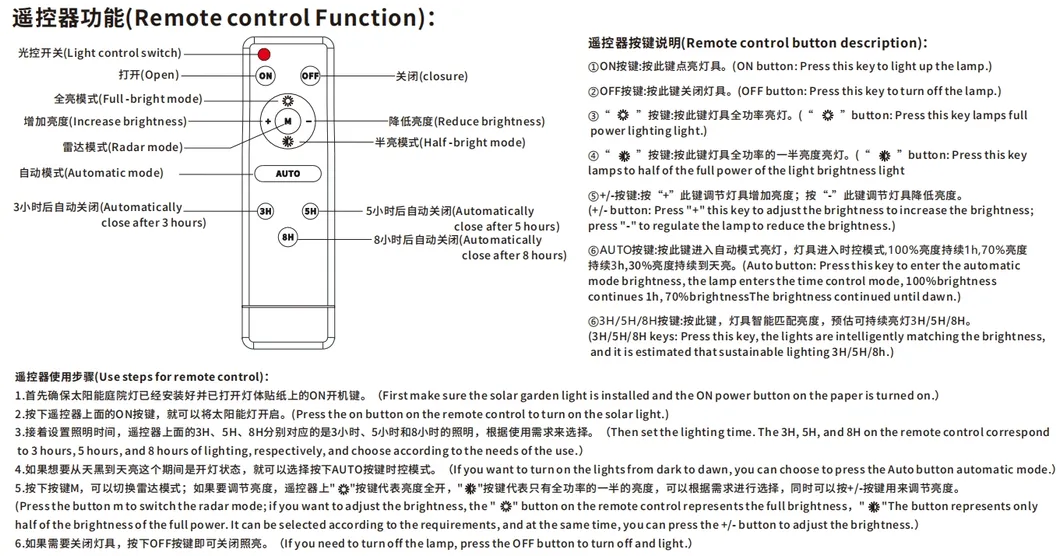

  • 4 Lighting Modes (Remote): Full/Half brightness, 3H/5H/8H smart runtime, and adaptive Auto Mode (dimming from 100% to 30%).

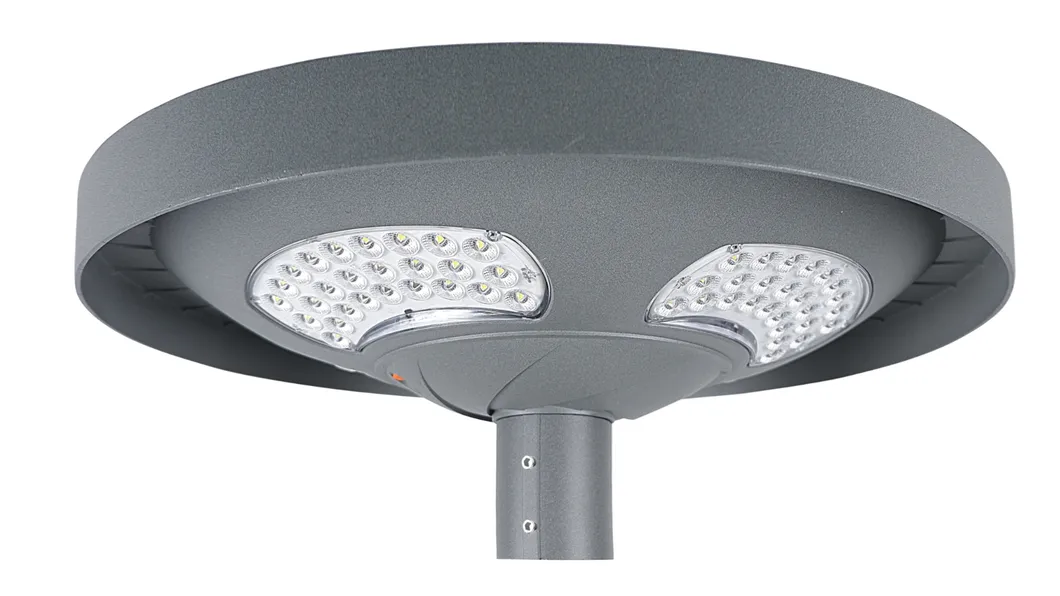

Intelligent Operation Radar Sensor
Robust Build & Easy Install
  • IP65-rated against dust/rain; -15°C to 45°C operational range.
  • Tool-free assembly: Mounts on Ø76mm poles with included M8/M5 stainless hardware.
  • 1-piece carton design: Pre-assembled units reduce setup time by 70%.

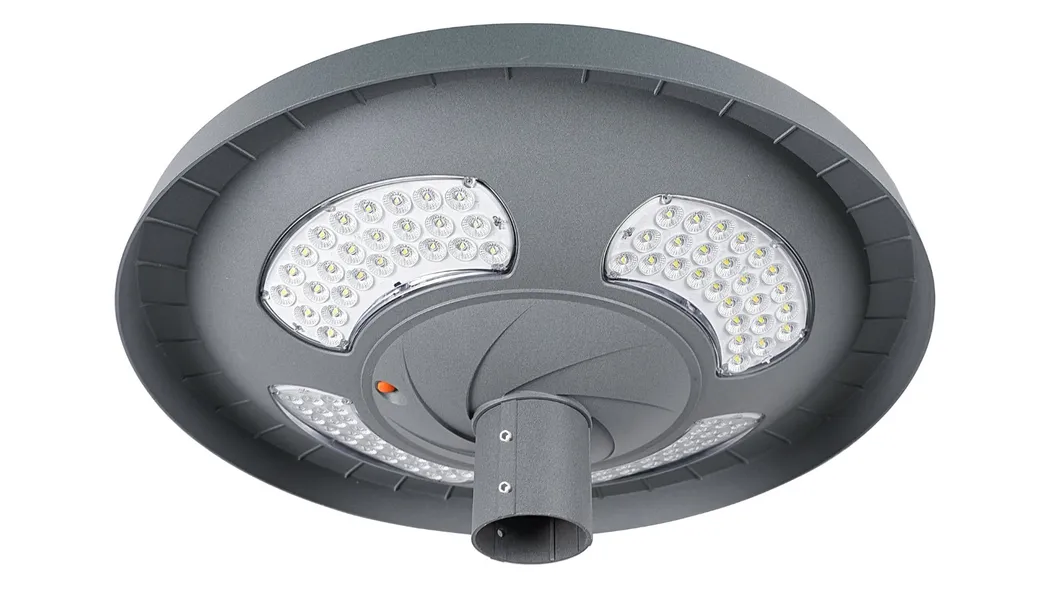

Robust Build & Easy Install
Product Parameters
Parameter 30W Specification 40W Specification
Power (W) 30W 40W
Size (mm) 620x620x189mm 620x620x189mm
Materials Alu+Glass+PC Alu+Glass+PC
Water Proof IP65 IP65
Power Tolerances 20W±5% 30W±5%
Battery Capacity 25000mA 35000mA
Battery/Solar Panel 5V 25W 5V 35W
AC Input Voltage DC5V DC5V
DC Output Voltage DC3.2V DC3.2V
CRI Ra>70 Ra>70
Efficiency (Lm/W) 100-110LM/W 100-110LM/W
Color Temperature 6000-6500K 6000-6500K
LED Model SMD 5054 SMD 5054
LED Quantity 104PCS 104PCS
Beam Angle 120° 120°
Installation Caliber 76mm 76mm
Work Temperature -15-45ºC -15-45ºC
Warranty 2 years 2 years
PCS/CTN 1 1
CTN Size (cm) 62.5*62.5*13cm 62.5*62.5*13cm
Product Advantages
Product Advantages Exploded View
  1. 94% Transmittance Tempered Glass: Maximizes light output.
  2. Extreme Durability: Marine-grade die-cast aluminum body & IK08-rated tempered glass cover.
  3. 13-Step Painting: Ensures superior finish and long-term reliability.
  4. Corrosion Resistance: High-efficiency coating & metal passed 500hr salt spray test.
  5. Future-Proof Optics: Modular lens design for easy upgrades.
  6. Safe & Easy Maintenance: Detachable design + fast power cut-off protector.
  7. High Surge Protection: 10kV SPD standard (20kV optional).
  8. Class I Electrical Protection: Enhanced safety standard.
  9. Fast ROI: Cost-effective, high-efficiency lighting solution.
  10. Flexible Sizing: Available in multiple sizes.
  11. Simplified Service: Easy installation and maintenance.
  12. Smart-Ready: Programmable drivers for intelligent control.
Product Dimensions
Solar Garden Light Dimensions View 1

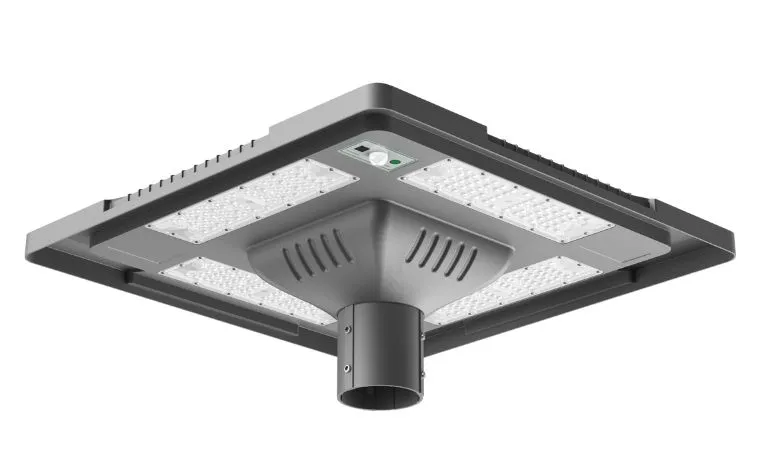

Solar Garden Light Dimensions View 2
30W Specifications

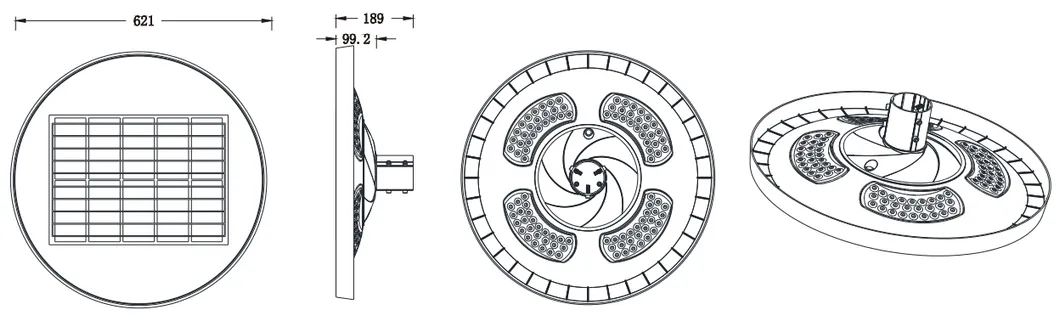

30W Solar Garden Light Dimensions

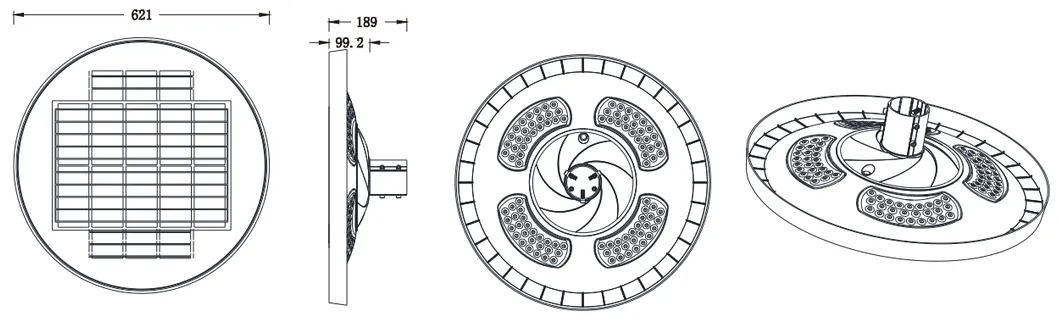

40W Specifications
40W Solar Garden Light Dimensions

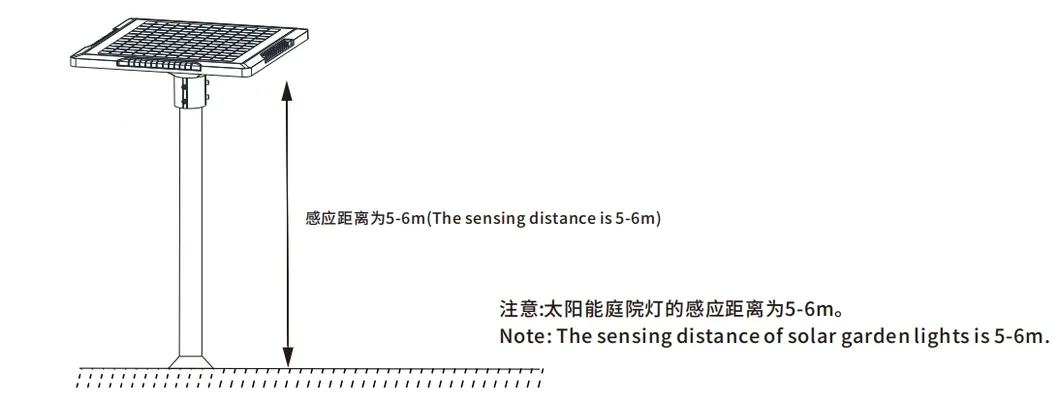

Sensing distance of solar garden lights
Sensing Distance Diagram

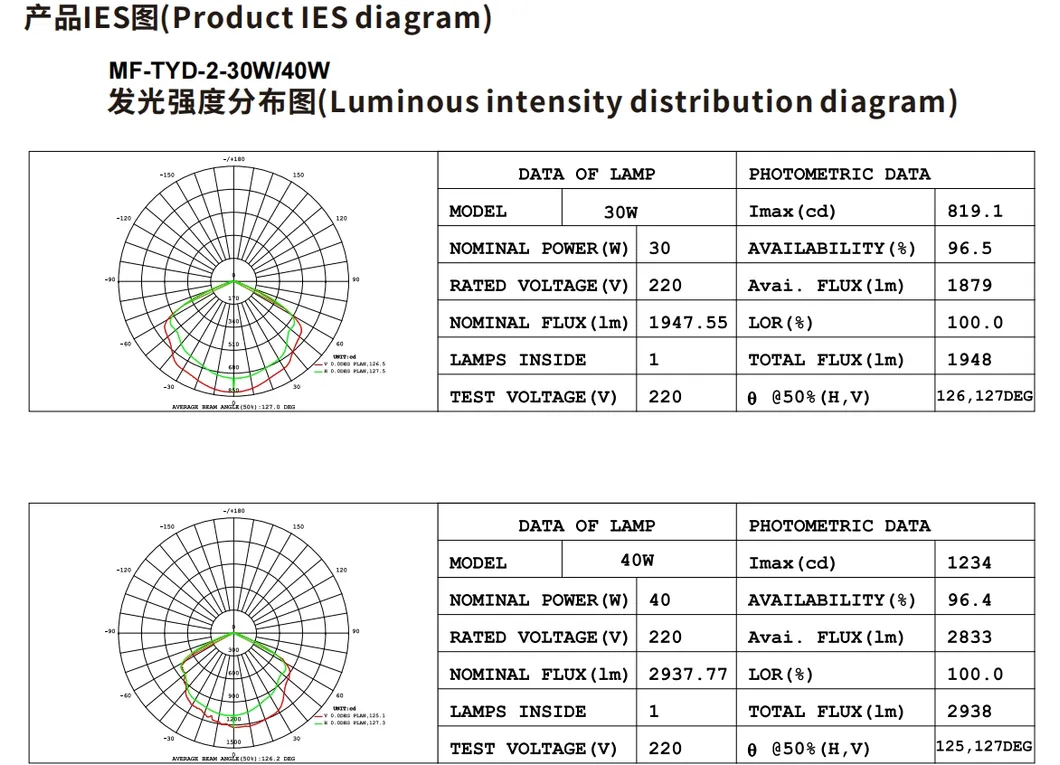

Radar Sensing Angle Detail

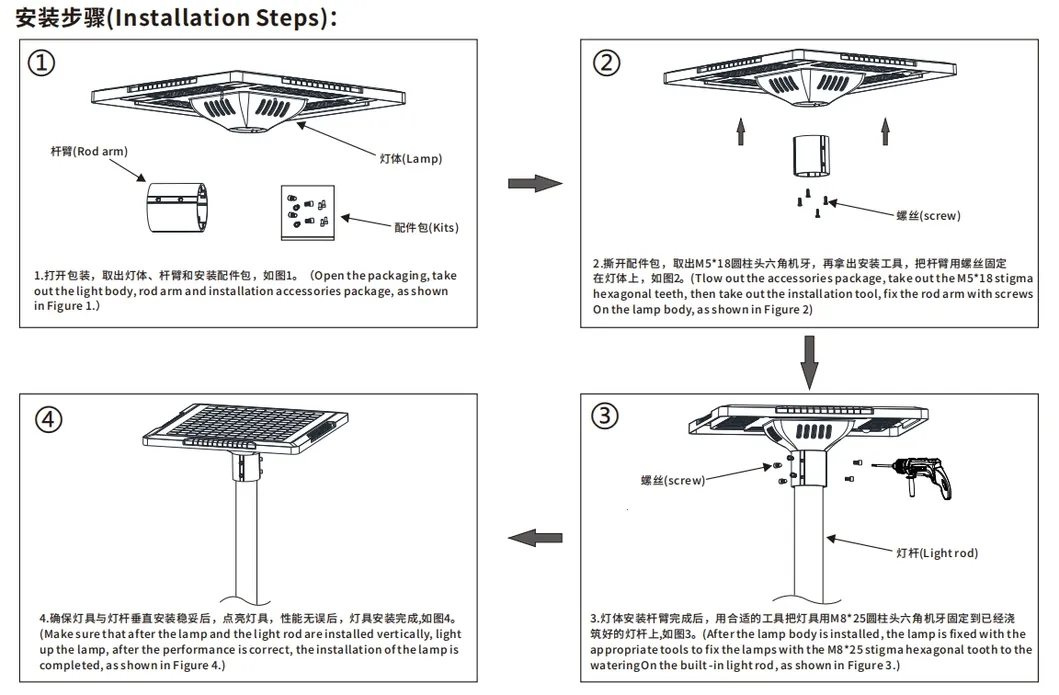

Installation Instructions
Installation Steps Diagram 1
Installation Steps Diagram 2
Product Applications
  • Residential: Driveways, garden borders, patio decor
  • Commercial: Parks, campus walkways, hotel landscapes
  • Public Infrastructure: Pedestrian streets, community squares

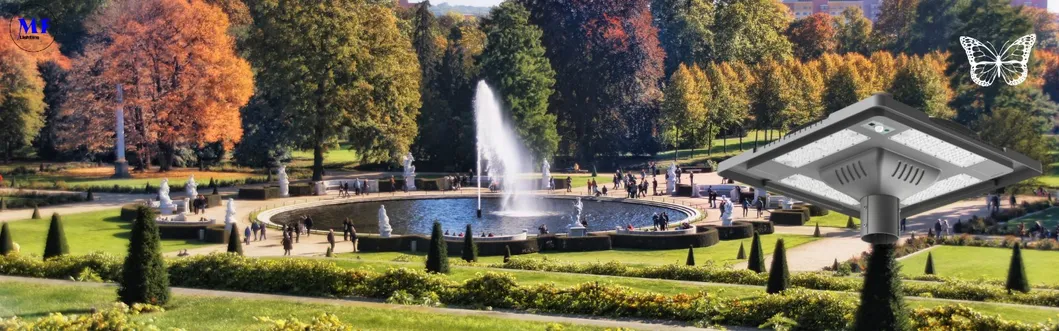

Garden Pathway Application

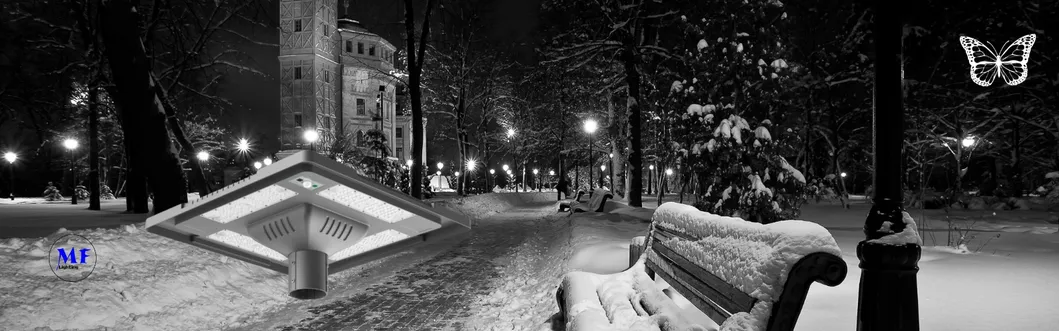

Plaza/Parking Lot Application

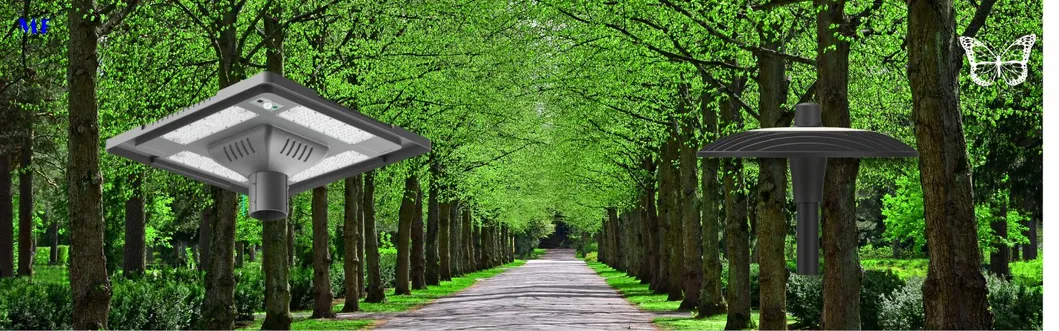

Street Walkway Application

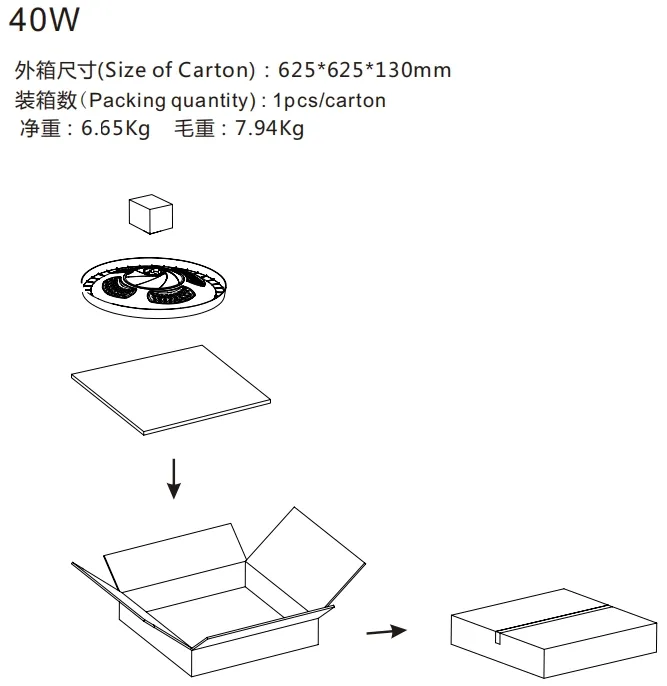

Packaging & Shipping
Package & Logistics Specifications
  • Net Weight: 6.45kg (30W) / 6.65kg (40W)
  • Carton Size: 535×535×165mm (TYD-2) - ECT>4900N/m crush-proof box
  • Shipping: Palletized with PE stretch film protection; humidity-controlled storage advised.

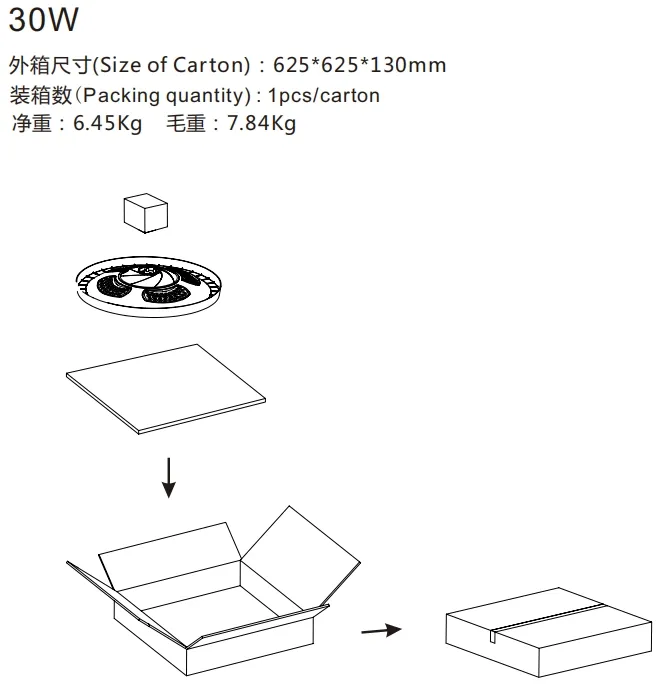

Packaging Box Specifications
Logistics Palletized Shipping
Frequently Asked Questions
What types of lighting products do you supply?
We provide high-quality floodlights, high bay lights, explosion-proof lights, tri-proof lights, downlights, and other professional outdoor/indoor lighting solutions along with reliable warranties.
Is it possible to customize the LED lights with my logo?
Yes, we support comprehensive OEM and ODM services. Please provide your design requirements and confirm specifications with us before production starts.
How is warranty service handled for faulty products?
During the warranty period, we will dispatch replacement lights for small quantities. For larger batches of defective items, we will repair and resend them, or coordinate a suitable recall solution based on the circumstances.
Can I place a sample order first?
Yes, sample orders are welcomed to test and assess quality. We support single or mixed sample orders.
What is the typical shipping lead time?
Standard delivery is roughly 7 days for samples or small orders, and approximately 15 working days for bulk orders, depending on actual quantity requirements.
What is the IP rating and operating temperature range for these solar garden lights?
These solar garden lights feature a robust IP65-rated waterproof enclosure and operate effectively in extreme conditions ranging from -15°C to 45°C.
