IP66 Water Proof Industrial Commercial LED Flood Lights Multiple Beam Angle Floodlight 10W 20W 30W 50W 80W 100W 120W 150W 200W 250W

Basic Specifications

Model NO. LCD-FS-053

IP Rating IP65

Beam Angle 60°

Housing Color Black

Lifespan >50,000 Hours

Warranty 5 Years

Voltage 220V

Light Source Included

Package Carton Box

Specification 400x300x80mm

Trademark LCD brand

HS Code 9405421000

Capacity 50,000 PCS/Year

CCC CE CQC C-tick EMC Energy Star ETL FCC FDA GOST GS LVD PSE REACH RoHS SAA SASO VDE TUV

Product Description

Outdoor SMD3030 Cool White 6500K 10W LED SMD Flood Light

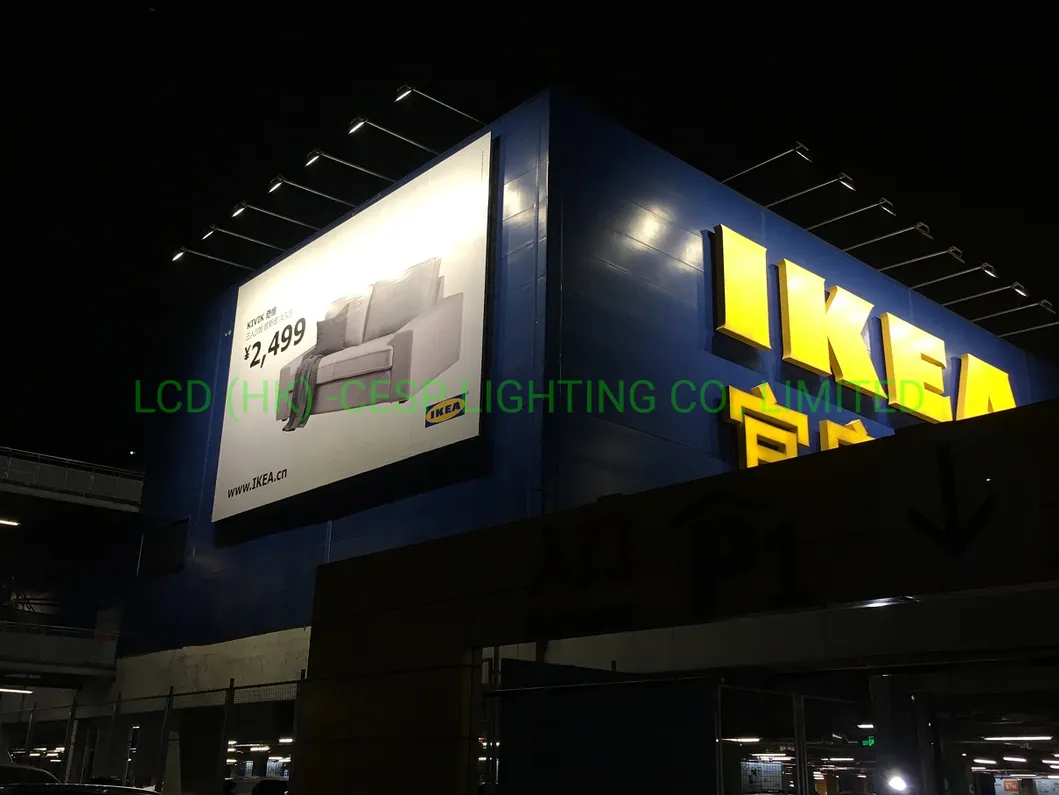

The FS series is engineered to satisfy diverse floodlighting needs, including public squares, parking areas, billboards, security zones, and active work sites. Designed for energy efficiency and easy scaling, this fixture range utilizes advanced optics combined with top-tier LUXEON or OSRAM LED chips and high-grade drivers (Meanwell or LCD brand), offering energy savings up to 75% and an outstanding lumen-to-cost ratio. Simple plug-and-play installation makes it a convenient replacement for legacy lighting fixtures.

General Technical Information

Lamp Family CodeLCD-FS-013 / 015

System Output1300 lm to 1600 lm

Color Temperature3000K, 4000K, 6000K

Replaceable OpticsYes (Cree/OSRAM/LUXEON)

Optical Cover4mm Temper Glass

Beam Angles25°, 30°, 60°, 90°, 120°

Protection RatingIEC Class I

Warranty5 Years

FS Family Series Parameters

Item Details	10W	20W	30W	50W	80W	100W	150W	200W
Input Voltage	90-265VAC or 12-28VDC
Input Current	0.05A	0.1A	0.15A	0.23A	0.38A	0.48A	0.7A	0.93A
Power Efficiency	>89%	>89%	>89%	>95%	>97%	>97%	>97%	>97%
LED Consumption	9W	18W	27W	45W	72W	91W	135W	185W
System Consumption	10W	20W	30W	50W	80W	100W	150W	200W
Power Factor	>0.95
Total Harmonic Distortion	THD < 20%
Dimmable Options	1-10V, DALI, Triac on request
LED Configuration	12 LEDs	24 LEDs	36 LEDs	60 LEDs	96 LEDs	120 LEDs	180 LEDs	240 LEDs
LED Efficacy (Rated)	160-180 lm/W
System Luminous Efficiency	130-160 lm/W
Luminous Output (Typ.)	1350lm	2700lm	4050lm	6750lm	10800lm	13500lm	20250lm	27000lm
CRI / SDCM	Ra > 80 / SDCM < 5
Lumen Maintenance	> 80% @ 50,000h

Electrical & Mechanical Properties

Operating & Electrical Details	Specifications
Input Voltage / Frequency	100 to 277 VAC (or 12-28 VDC) \| 50 to 60 Hz
Inrush Current & Time	340 A for 0.025 ms
Power Factor (Min)	>0.95
Housing & Reflector Material	Aluminum die-cast 6063 / Polished Aluminum
Optic & Glass Cover Material	Acrylate / 4mm flat clear tempered glass
Fixation Material	Corrosion resistant powder coated carbon steel
Ingress Protection & Impact	IP65 [Dust penetration-protected, jet-proof] \| IK08 [5 J vandal-protected]
Surge Protection Level	>2 kV

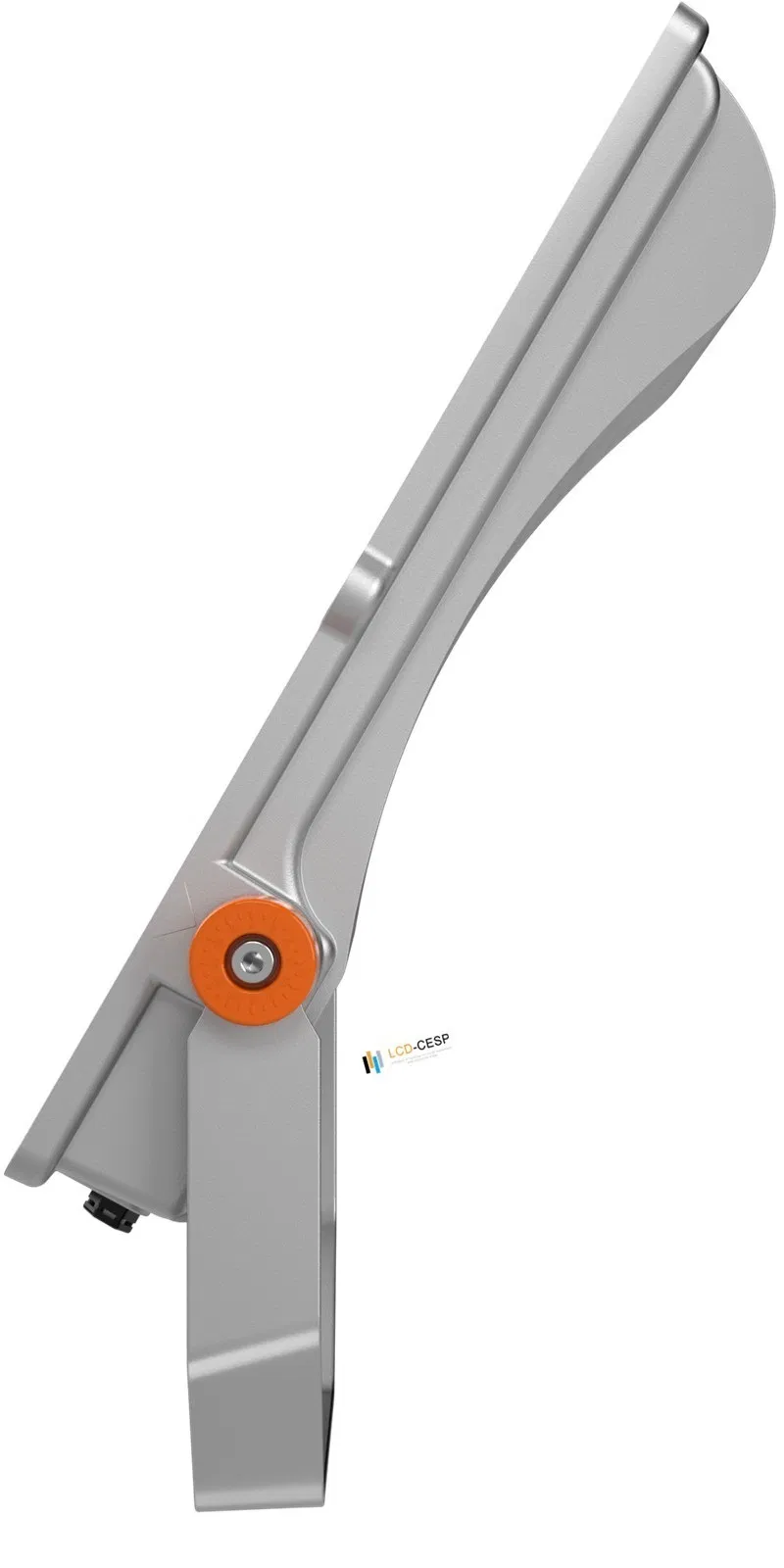

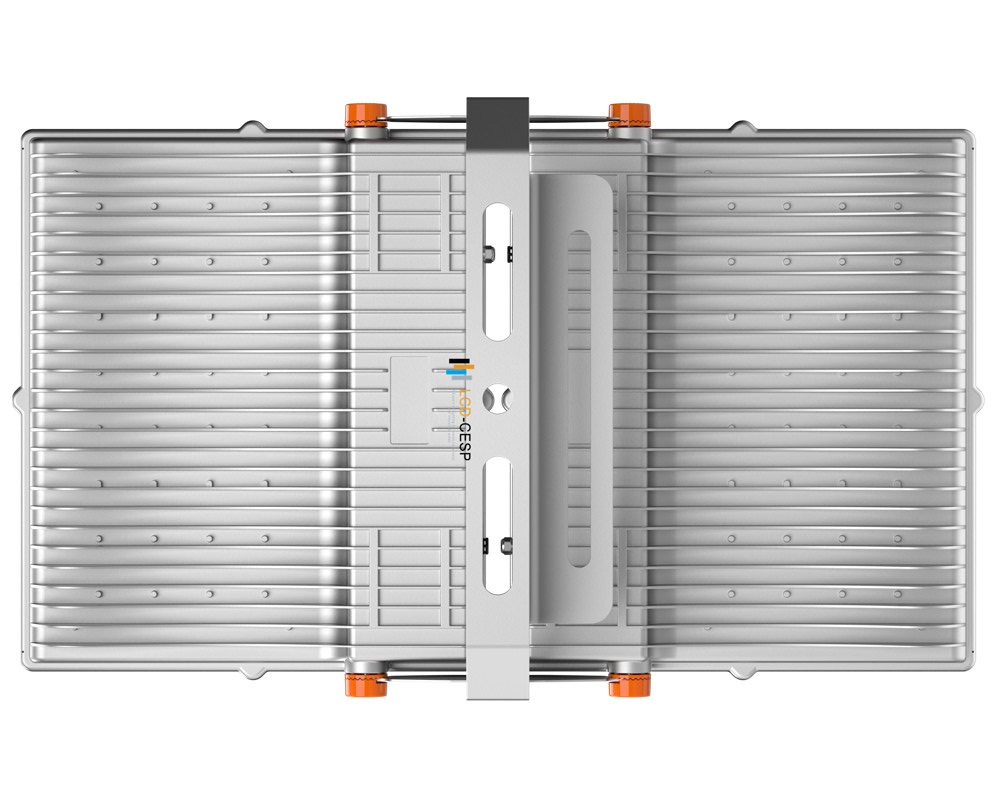

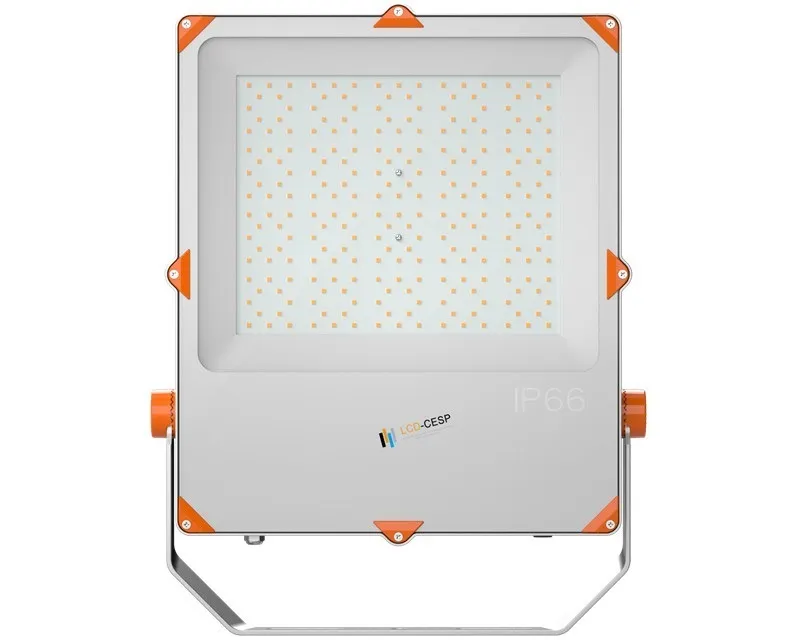

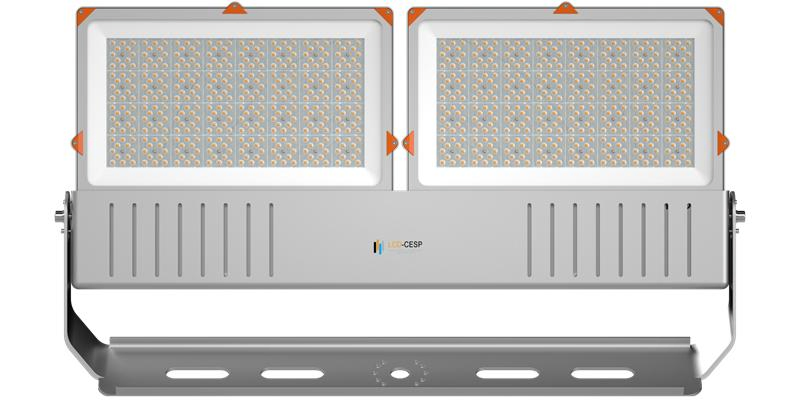

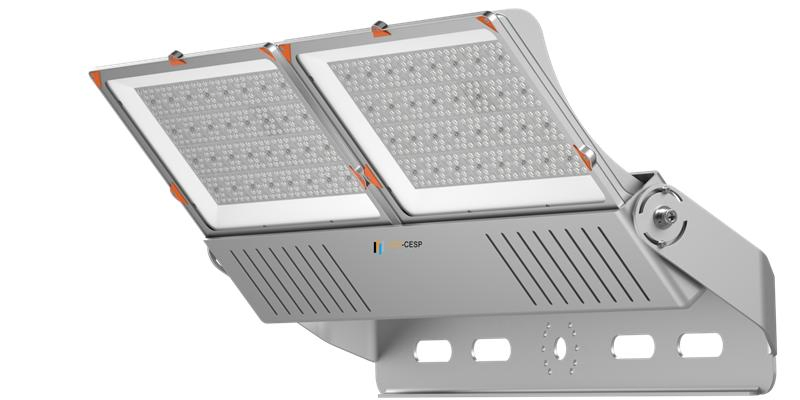

High-Power 200W Floodlight Specifications

The 200W high-output LED floodlight is tailored for wide-area application demands, combining high structural durability with aesthetic styling. It integrates precision thermal dissipation channels with dimming options (DALI, 1-10V, Triac) for maximized output efficiency.

Parameter	Details (200W Model)
Model Code	LCD-FS-xxxx-LNxxx (200W Model: LCD-FS-203-LNXX-4K)
Light Output / Efficiency	>28,000 lm / >140 lm/W
Color Rendering Index (CRI)	75
Optics Distribution	110°, 60°x60°, 90°x90°, 30°x30°, TYPE 3/4/5
Power Input	110-277VAC or 220-240VAC \| 50/60Hz
IP & IK Impact Class	IP65 & IK07 (>4 J vandal-protected)
Net Weight	5.5 KG

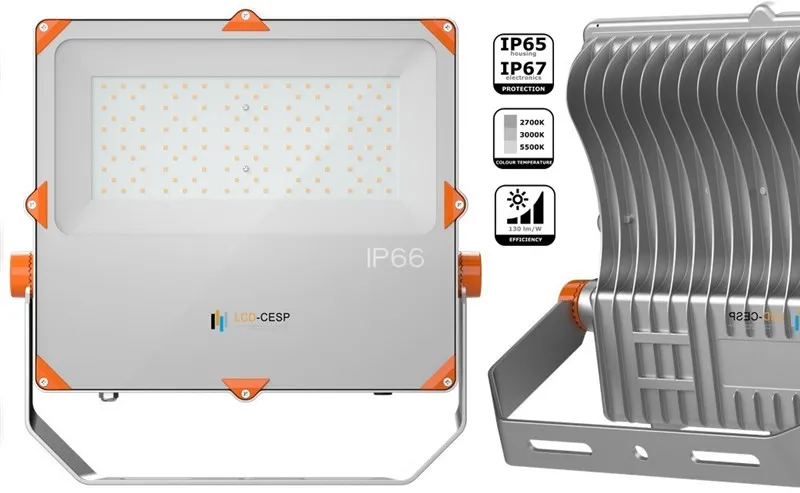

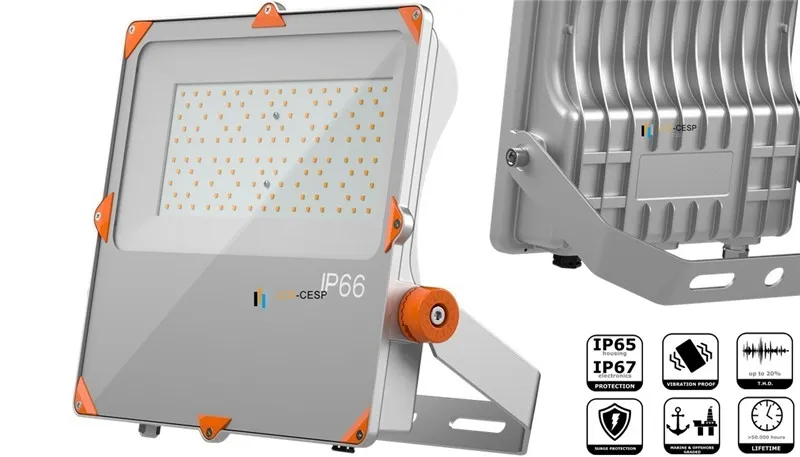

50W Extruded Aluminum Security Spotlight

This mid-power luminaire features extruded aluminum housing, optimizing thermal conductivity to 230W/(m.k), which is up to 2.5 times higher than standard cast alloys. Highly suitable for billboard, perimeter, facade, and roadway applications.

Consumo / Consumption	Altura de montaje / Assembling height
10W, 20W, 30W, 50W, 70W, 100W, 120W, 150W, 200W	4 - 15 meters
Voltaje / Voltage	Frecuencia / Frequency
100-277 V AC or 12V 24V 32V	50/60 Hz
Grado de Protección / Protection	Óptica / Optic
IP66 / IK08	Efficiency: 90% / 135-150lm/w
FHS / Upward Light Ratio	Vida útil / Life span
<1%	L70 -> 60,000h

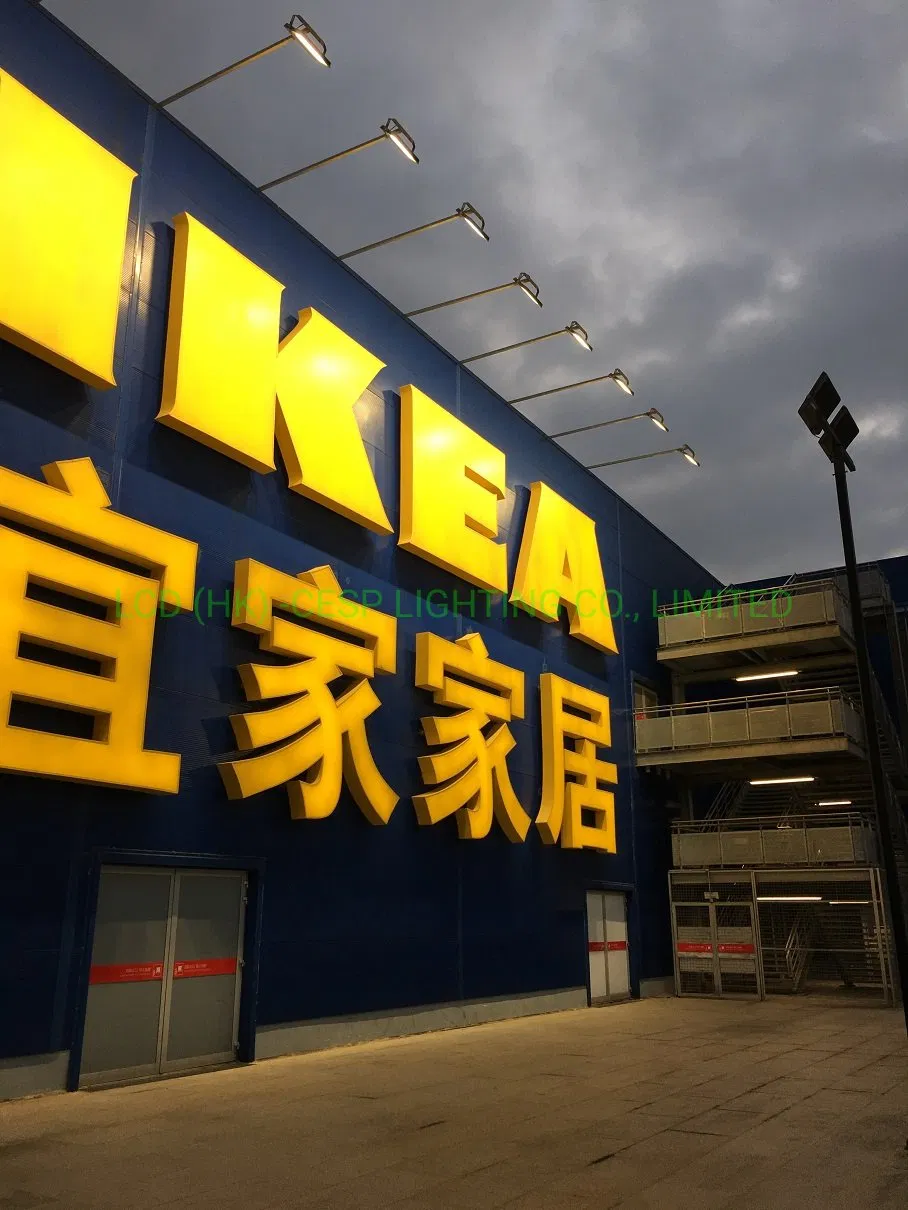

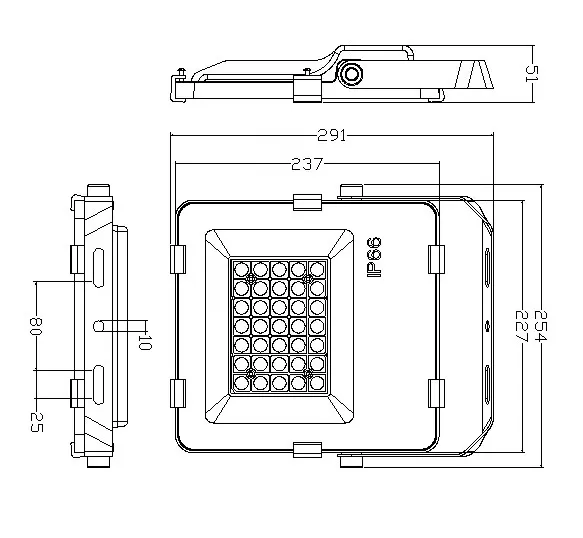

FLS Series Mounting & Dimension Details

Designed for ease of installation, the FLS series boasts lightweight structuring and pre-wired packages. Three installation mounting designs cover multiple settings:

Wall or Ceiling Mount: Ideal for area, general site, and security lighting.
Surface Mount: Best suited for architectural facade rendering.

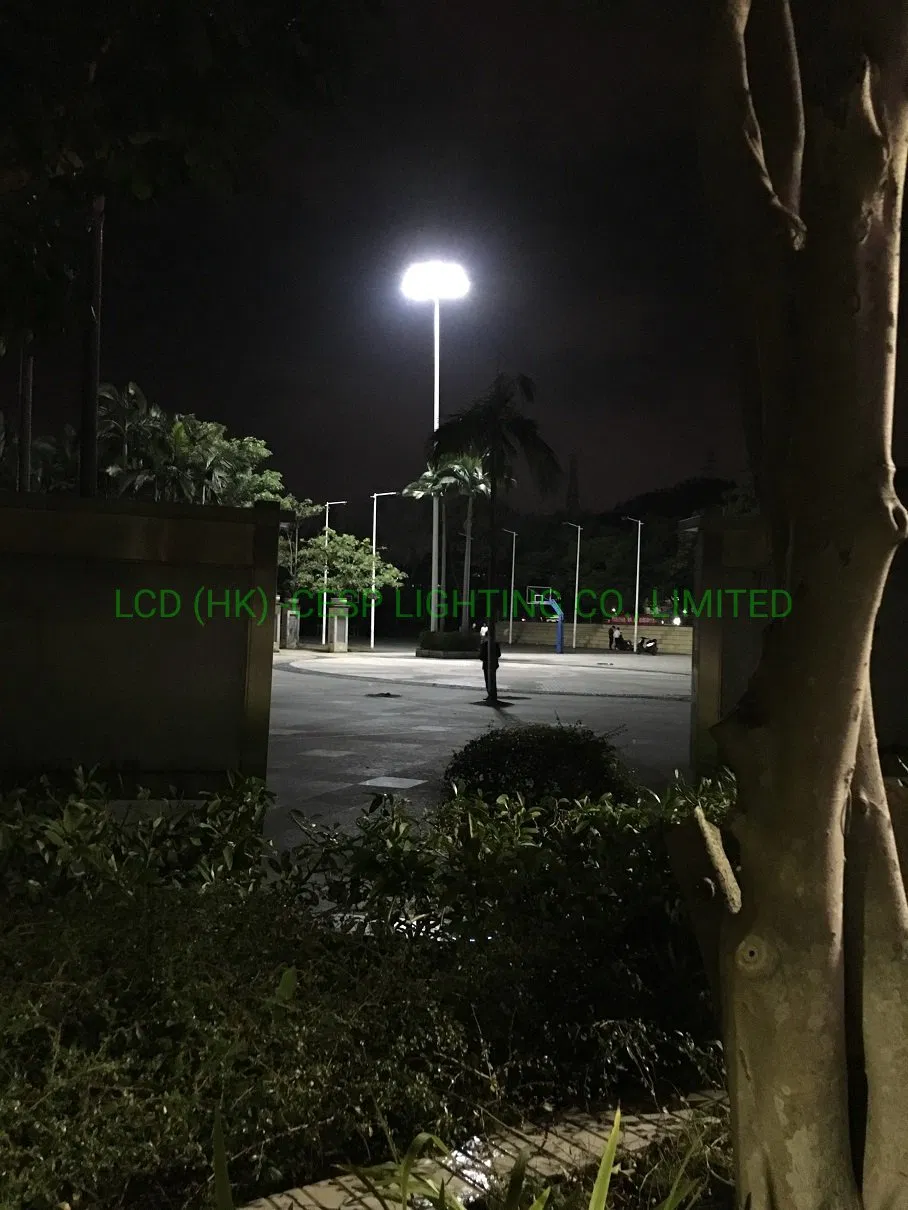

Mast & Post Mount: Optimized for roadways, parks, and parking lots.

Model No.	Power (W)	Lumens (lm)	CCT Options	Voltage	Weight	Dimensions (mm)
LCD-FLY-013	10W	1300	3000K/4000K/6500K	85-265VAC	0.54Kg	179x145x32
LCD-FLY-023	20W	2600	3000K/4000K/6500K	85-265VAC	0.65Kg	189x148x32
LCD-FLY-033	30W	3900	3000K/4000K/6500K	85-265VAC	1.25Kg	261x194x47
LCD-FLY-053	50W	6500	3000K/4000K/6500K	85-265VAC	1.50Kg	350x265x69
LCD-FLY-083	80W	10400	3000K/4000K/6500K	85-265VAC	1.70Kg	350x265x69
LCD-FLY-103	100W	13000	3000K/4000K/6500K	85-265VAC	2.85Kg	397x308x68
LCD-FLY-153	150W	19500	3000K/4000K/6500K	85-265VAC	4.18Kg	441x347x68
LCD-FLY-203	200W	26000	3000K/4000K/6500K	85-265VAC	4.50Kg	500x385x68

Frequently Asked Questions (FAQ)

What is the lifespan and warranty of these LED floodlights?

These LED floodlights have a rated useful life of over 50,000 hours (up to 100,000 hours under optimal conditions) and are backed by a comprehensive 5-year replacement warranty.

What is the difference between IP65 and IP66 ratings on these fixtures?

IP65 certified fixtures are dust-penetration protected and resistant to water jets. IP66 certified models offer an upgraded level of sealing, making them fully weatherproof and secure against powerful water jets from all directions, which is ideal for heavy marine or storm-prone outdoor settings.

What components and chip technologies are utilized in these lights?

We design with top-quality component partners. Standard fixtures utilize premium SMD3030 and SMD5050 light-emitting engines from OSRAM, Cree, Bridgelux, or LUXEON, powered by reliable, efficient Meanwell or specialized CE/TUV-approved drivers.

Do you offer dimmable configurations for industrial setups?

Yes, dimming configurations are available on special request. We support standard 1-10V analog dimming, DALI smart system integrations, and Triac phase-cut dimming protocols.

Are there various beam angle distributions available?

Yes. To support diverse architectural and utility lighting plans, we provide multiple optical configurations including narrow spots (7°, 15°), medium-to-wide beams (30°, 60°, 90°, 120°), and specialized Type II, III, IV, and V asymmetrical patterns.

How is the heat managed in the 50W and 200W models?

These spotlights use structural extruded or die-cast aluminum alloys featuring high thermal conductivities up to 230W/(m.k). This ensures heat is transferred rapidly away from the LED engines, preventing thermal degradation and extending diode integrity.
