LED Floodlight 30W-240W Energy Saving Lighting LED Sports Flood Light

Basic Info

Model NO.

SWF-CH 150W

Power

30W/50W/100W/150W/200W/240W/300W

Projection Distance

>35m

Application

Park, Square, Factory, Garden, School, Airport, Ports, Terminals Sports Venue, etc.

IP Rating

IP65

Certification

CCC, CE, EMC, RoHS

Operating Voltage

110-240V

Input Voltage

100-277V

LED Chips Brand

CREE

LED Type

3030

CCT

4000K/5000K/5700K

CRI

>70

Sdcm

7

Ik Grade

Ik08

Power Range

30W/50W/100W/150W/200W/240W/300W

Input Frequency

50/60Hz

Beam Angle

30/60/90/120°

Power Surge

L-N 4kv, L/N-PE 6kv

Driver Type

Meanwell/Sosen/Moso/Inventronics

Thd

<25%

Luminous Efficiency

130lm/W

Housing Color

Black or OEM

Material Features

Light Weight, Stable and Reliable Heat Dissipation

Origin

China

HS Code

9405499000

Production Capacity

20000PCS/Month

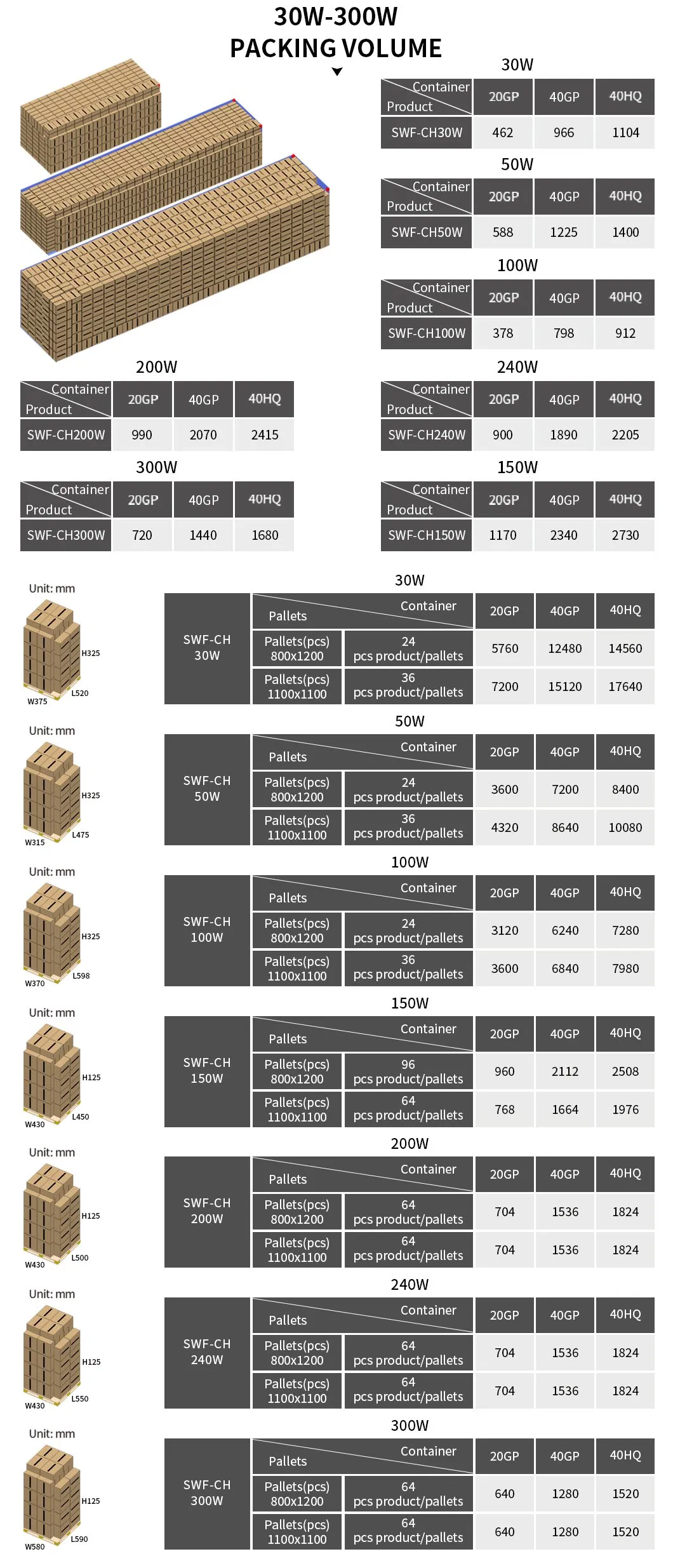

Packaging & Delivery

Package Size

49.00cm * 42.00cm * 11.50cm

Package Gross Weight

5.100kg

Product Description

LED CH Flood Light Features

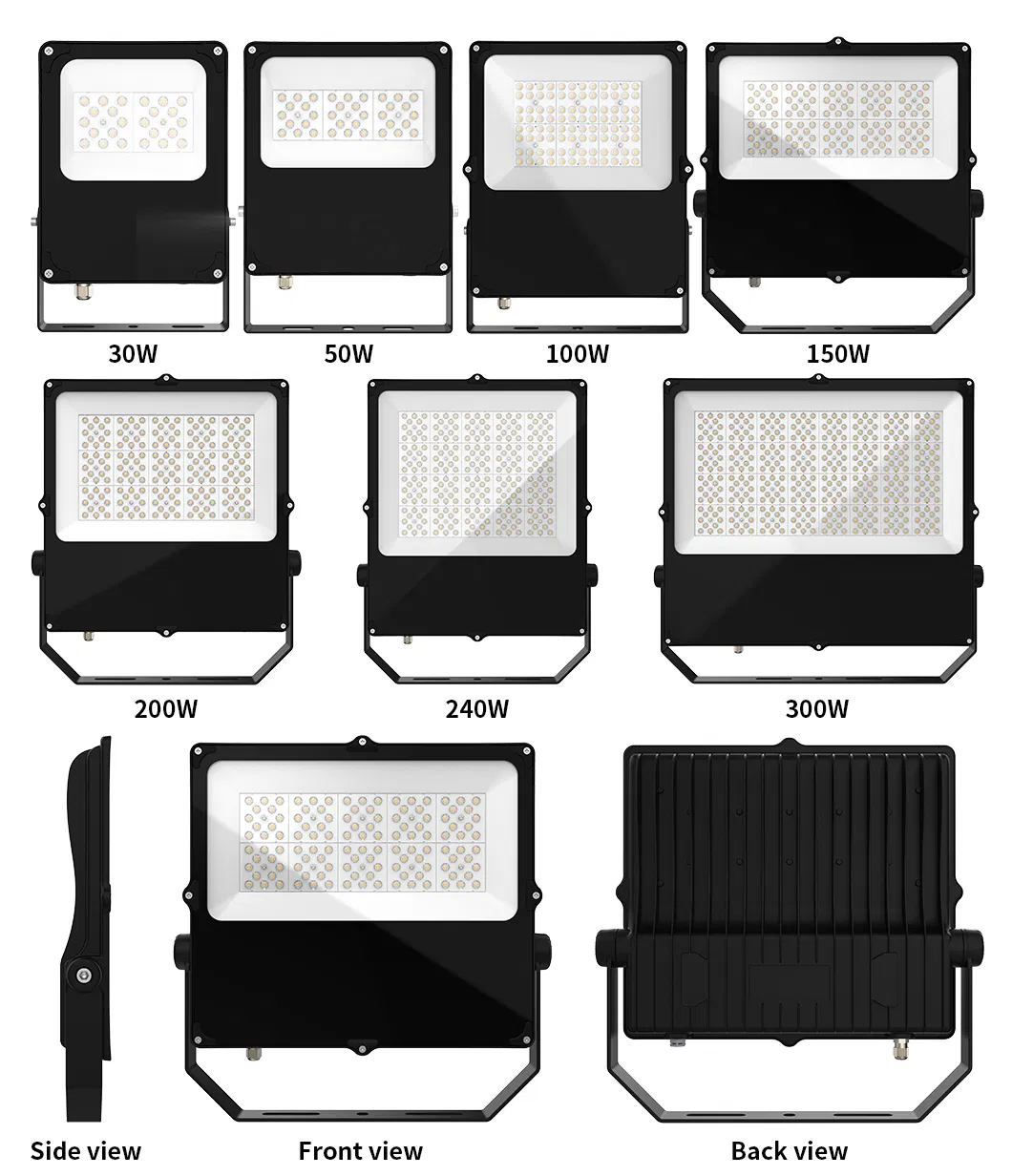

30w/50w/100w/150w/200w/240w/300w option
High thermal conductivity ADC 12 Aluminum
0 degree angle installation with low glare
ADC 12 Material for good heat dissipation
Diversal light distribution angles 15/30/60/90/polarized design, can be applied in a wide range
DALI/1-10V/0-10V dimming, microwave induction function optional
Glass +PC lens design, with high luminous efficiency

GENERAL INFORMATION
Mounting Module	Bracket system
Operating Temperature	-30ºC/+45ºC
Storage Temperature	-30ºC/+80ºC

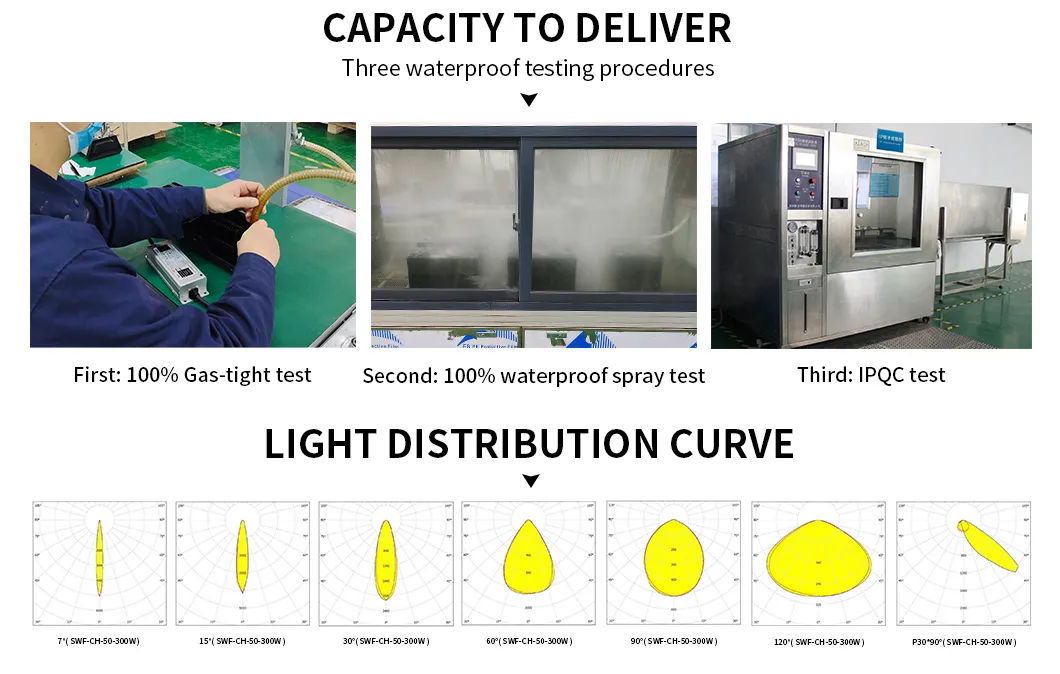

Lens Options	7°/15°30°/60°/90°/120°/P30*90°
Main Reference Standards	EN 60598-1; EN60598-2-1; EN62493; EN55015; EN 61000-3-2; EN61000-3-3; EN61547; EN62471; IEC 60598-1:2003; IEC 60598-1:2008; IEC 60598-2-1:1987; IEC 60598-2-3:2002; IEC 60838-1:2004; IEC 60838-2-2:2006; IEC/PR 61341:2010; IEC 61347-1:2007; IEC 61347-2-13:2006; IEC 62031-2008; GB 7000.1; GB 7000.201; GB17743; GB17625.1

ELECTRIC INFORMATION
Electrical Class	Class I
Nominal Voltage	100-240VAC/100-277VAC/180-528VAC 50Hz/60Hz
LED Current	SMD3030 150mA@6V
LED Lamp Power	30W(3900Lm) / 50W(6500Lm) / 100W(13000Lm) / 150W(19500Lm) / 200W(26000Lm) / 240W(31200Lm) / 300W(39000Lm)
Power Factor	≥0.92
Flickering Percentage	≤8%; ≤3% (optional)
THD	≤20%
Driver Brand	Meanwell/Moso/Sosen/INVENTRONICS
Surge protection options (kV)	L-N 4KV, L/N-PE 6KV@Meanwell; L-N 6KV, L/N-PE 10KV@Moso/Sosen/INVENTRONICS; 10kV (optional); 20kV (optional)
Control system	DALI/1-10v/0-10v/DMX512 dimming, optional microwave induction function
Mains connection	For cable max section 2.5mm2; Outgoing cable H05RN-F 2/3/5 × 1.5mm2; Length on request (optional)

HOUSING AND MATERIALS
Housing	ADC 12 die-casting aluminum
Optic	PC+Glass
Housing Finish	Powder spraying surface treatment, corrosion resistance/electrophoresis
Refractor	PC UV0
Standard Colour	RAL9017 Black; RAL9007 Gray (optional)
IP	IP65
Impact Housing Resistance	IK08 (5 J); IK09 (optional) (10 J); IK10 (optional) (20 J)
Impact Lens Resistance	IK08 (5 J)

OPTICAL INFORMATION
Led color temperature	4000K, 5000K, 5700K
CRI	CRI≥70; CRI≥80(optional); CRI≥90(optional); TLCI is an option available upon request
LED Brand	CREE; Nichia
Upward light output ratio	0%
Photobiological safety class	IEC 62471, EN 62778 EXEMPT GROUP
Testing standard	LM 79-19, EN 13032-1 (all measurements in ISO17025 accredited laboratory)
Lifetime of the LED's	Tq =45°, >50000h - L70B50
Vibration Test	Compliant with modified IEC 68-2-6 (0.5G), ANSI C136.31 (3G)

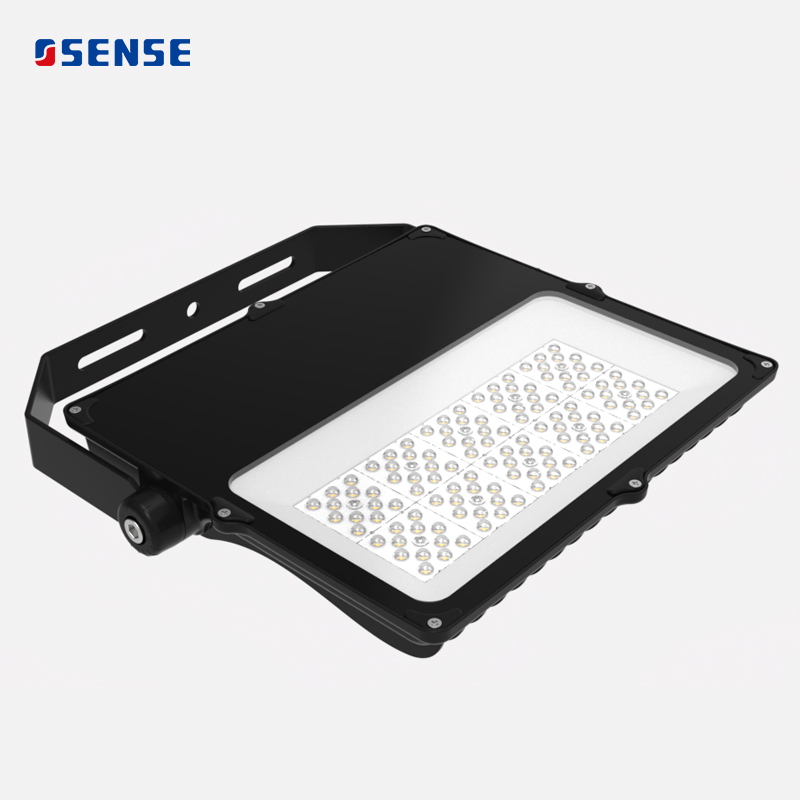

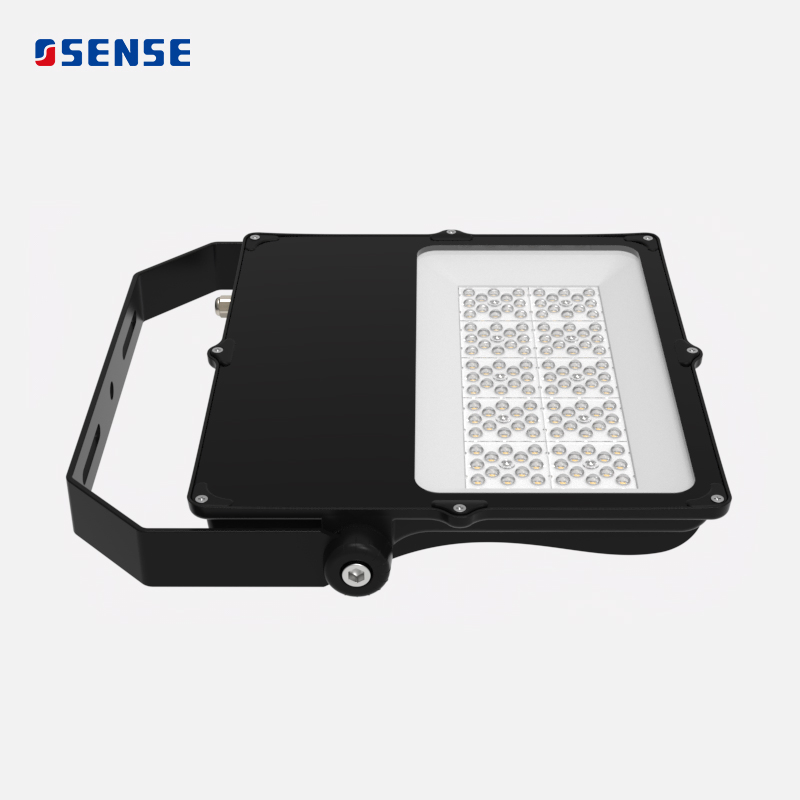

Detailed Photos

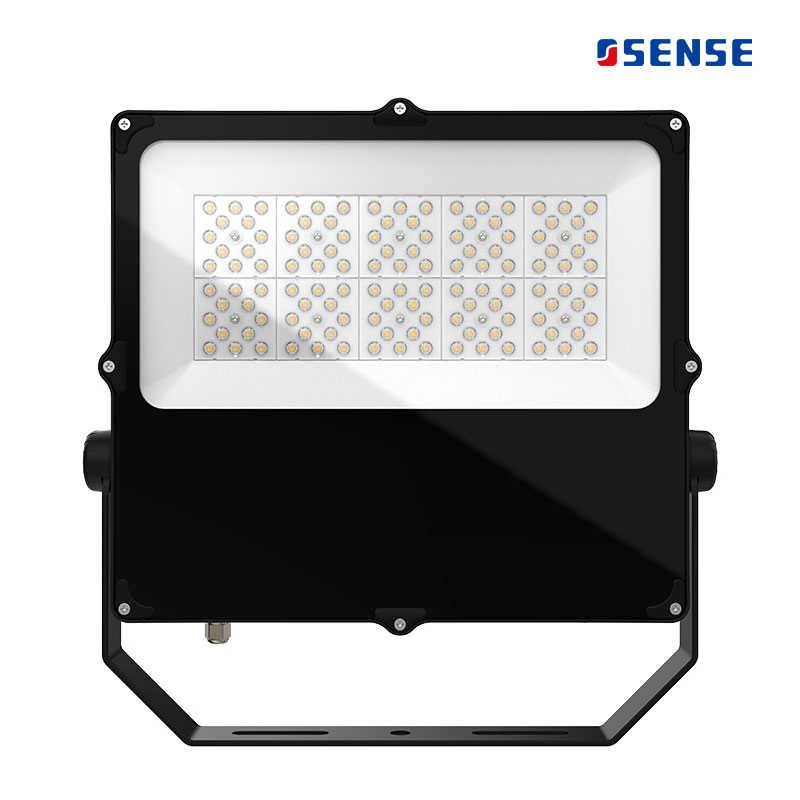

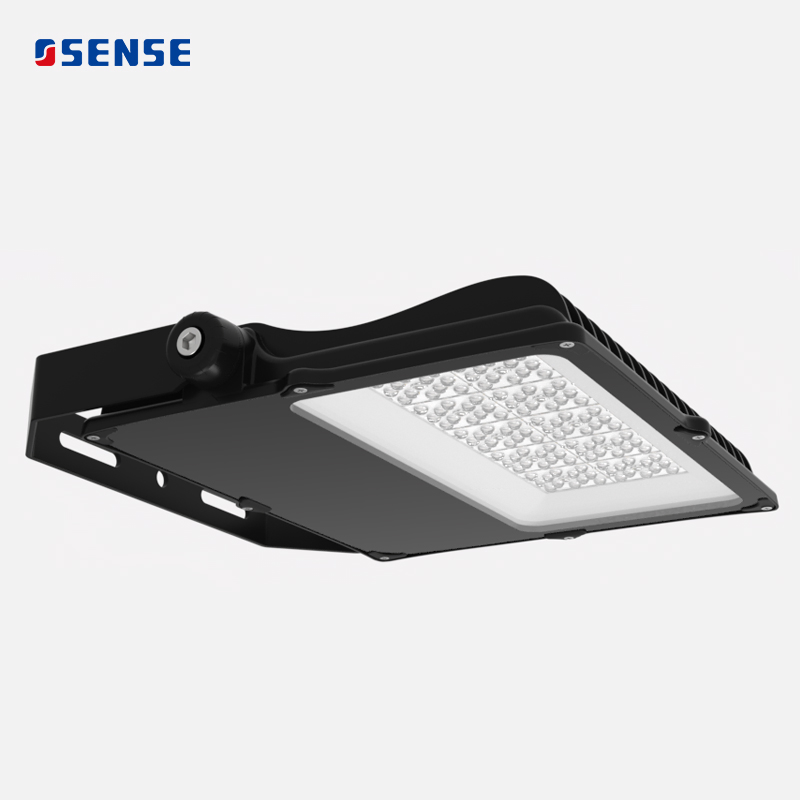

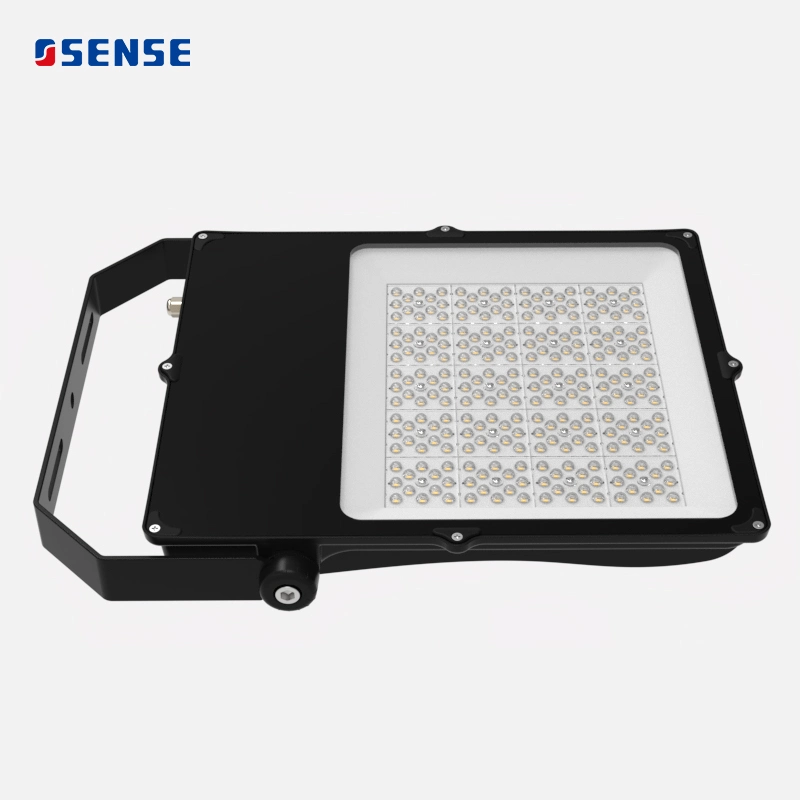

Product Details:

LED Floodlight 30W-240W Energy Saving Lighting LED Sports Flood Light

FAQ

Are you a manufacturer?

Yes, we have our own factory with over 20 years of R&D and manufacturing experience based on ISO quality management since 2003.

What Certification do you have?

TUV/CB/CE/EMC/SAA/CCC/RoHS approved. And with IP65/IP66/IP67/IK08/IK09/IK10/EMF/LM79/LM80/TM21/WF2/IES report.

Warranty of your products?

5-7 Years warranty depends on customer's requests.

What about the lead time?

3-7 days for sample, 10-20 days for mass production based on order quantities.

Can you provide OEM/ODM?

Yes, OEM/ODM support for the different application requirements.

How to deal with the faulty?

1. Our products are produced in a strict quality control system and the defective rate will be less than 0.1%.
2. For defective products in the warranty period, we will send new lights with new orders for small quantities.
3. For defective batch products, we will repair them and resend them to you or we can discuss the solution including recall according to the actual situation.
